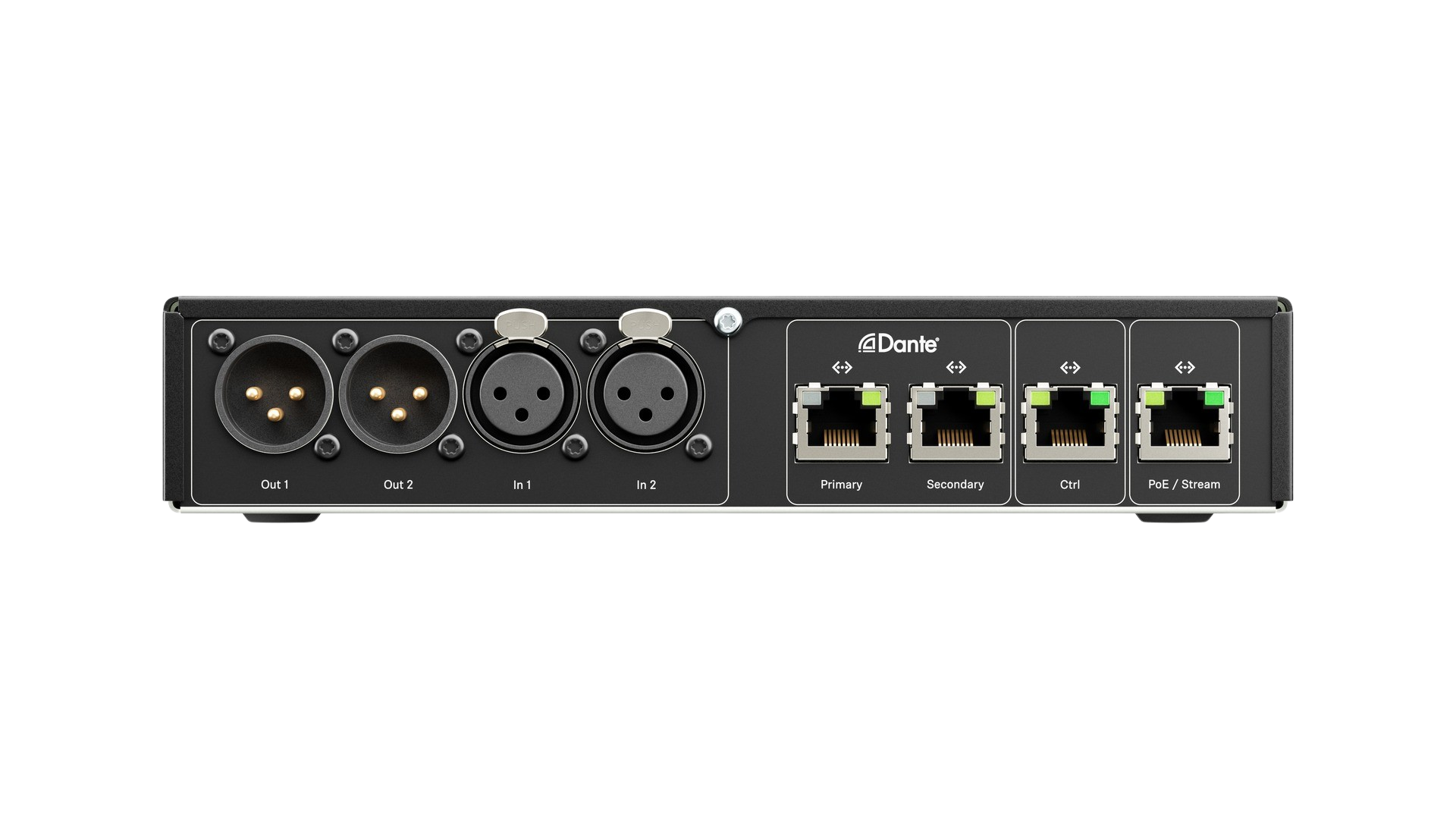

  • MobileConnect_Station_Back_Flat_redChange to image slide 1

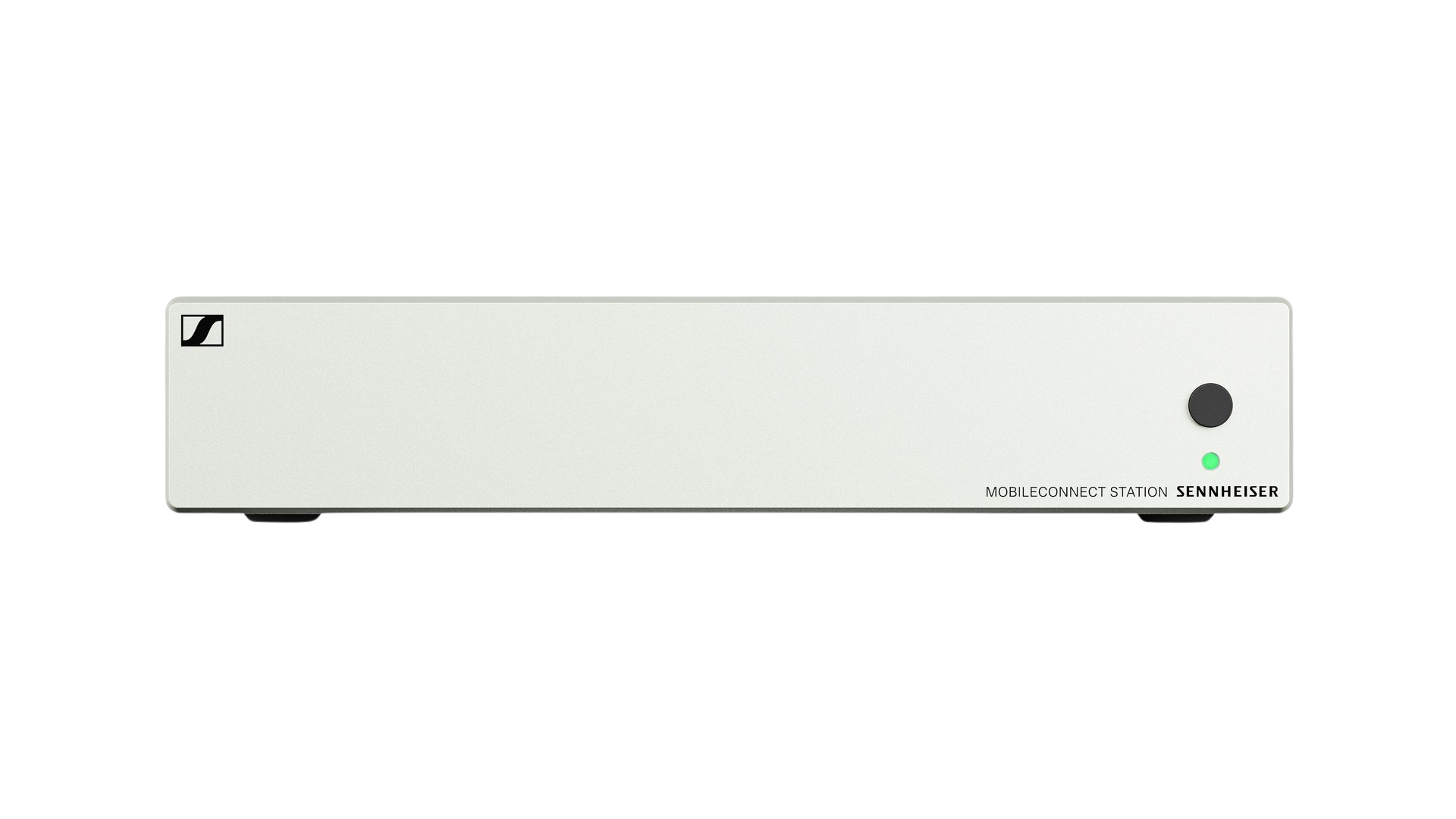

  • MobileConnect_Station_Front_Flat_Black_On_Off_redChange to image slide 2

MobileConnect Station

Artikel-Nr. 508895

Features11

  • Über digitales Audio von Dante sind die Stationen netzwerkübergreifend und müssen nicht in der Nähe installiert werden
  • Bietet entweder zwei Kanäle für unterstützendes Zuhören pro Station oder einen bidirektionalen Kanal pro Station (Assistive Listening & Audience Mic)
  • Unicast-Audiostreaming mit einer Latenzzeit von nur 25 ms, abhängig von Netzwerk- und Benutzergeräten*
  • Unterstützt bis zu 100 Clients pro Station
  • Zwei verfügbare IntegrationsmodiStandalone-Modus:
  • Individuelle Installationen mit einer einzigen Station
  • Manager-Modus: Größere, erweiterte Installation mit mehreren Stationen
  • Audiostreams sind im Mono- oder Stereo-Betrieb verfügbar
  • Stromversorgung über Ethernet
  • Kompatibel mit Dante und XLR
  • Verbindet sich über Crestron-, Extron-, QSC-Plugins oder andere Systeme über die MobileConnect API mit Steuerungssystemen von Drittanbietern *Der Durchschnitt beträgt 40–60 ms.

Wichtige Daten

  • Abmessungen½ 19" housing approx. 212 x 168 x 43 mm (8.4" x 6.6" x 1.7")
  • Gewicht (g)approx. 970 g
  • Audioeingang- 2x 3-pin sockets (suitable for XLR-3-F)
  • Eingangsimpedanz10 kΩ
  • Latenz (ms)40-60 ms (Depending on network infrastructure and mobile device)
  • Leistungsaufnahme (Amp)Max. 10 W
  • Signal-Rausch-Abstand101 dB (A)

Technische Daten

Product
  • Latenz (ms)
    40-60 ms (Depending on network infrastructure and mobile device)
Frequency Specifications
  • Frequenzgang
    40 Hz - 20 kHz
  • Audiofrequenzgang
    40 Hz to 20 kHz
Acoustic Properties
  • Abtastraten
    48 kHz
  • Signal-Rausch-Abstand
    101 dB (A)
Inputs/Outputs
  • Audioeingang
    - 2x 3-pin sockets (suitable for XLR-3-F)
Battery & Power
  • Leistungsaufnahme (Amp)
    Max. 10 W
Electrical Properties
  • Eingangsimpedanz
    10 kΩ
Dimensions
  • Abmessungen
    ½ 19" housing approx. 212 x 168 x 43 mm (8.4" x 6.6" x 1.7")
  • Höhe (mm)
    43
  • Länge (mm)
    212
  • Gewicht (g)
    approx. 970 g
  • Breite (mm)
    168
  • Product height
    43
  • Product weight (g)
    approx. 970 g
  • Product width
    168

Downloads12

  • MobileConnect Systemdatenblatt
    .PDF
    ·
    270.02 KB
    Download
  • MobileConnect System Specification
    .PDF
    ·
    269.07 KB
    Download
  • Digital Brochure MobileConnect EN
    .PDF
    ·
    9.1 MB
    Download
  • Digital Brochure MobileConnect DE
    .PDF
    ·
    2.95 MB
    Download
  • Digital Brochure MobileConnect EN
    .PDF
    ·
    2.95 MB
    Download
  • Digital Brochure MobileConnect FR
    .PDF
    ·
    2.84 MB
    Download

Lieferumfang04

  • Sennheiser MobileConnect Station
  • Gehäusefüße
  • Quick Guide
  • Safety Guide
