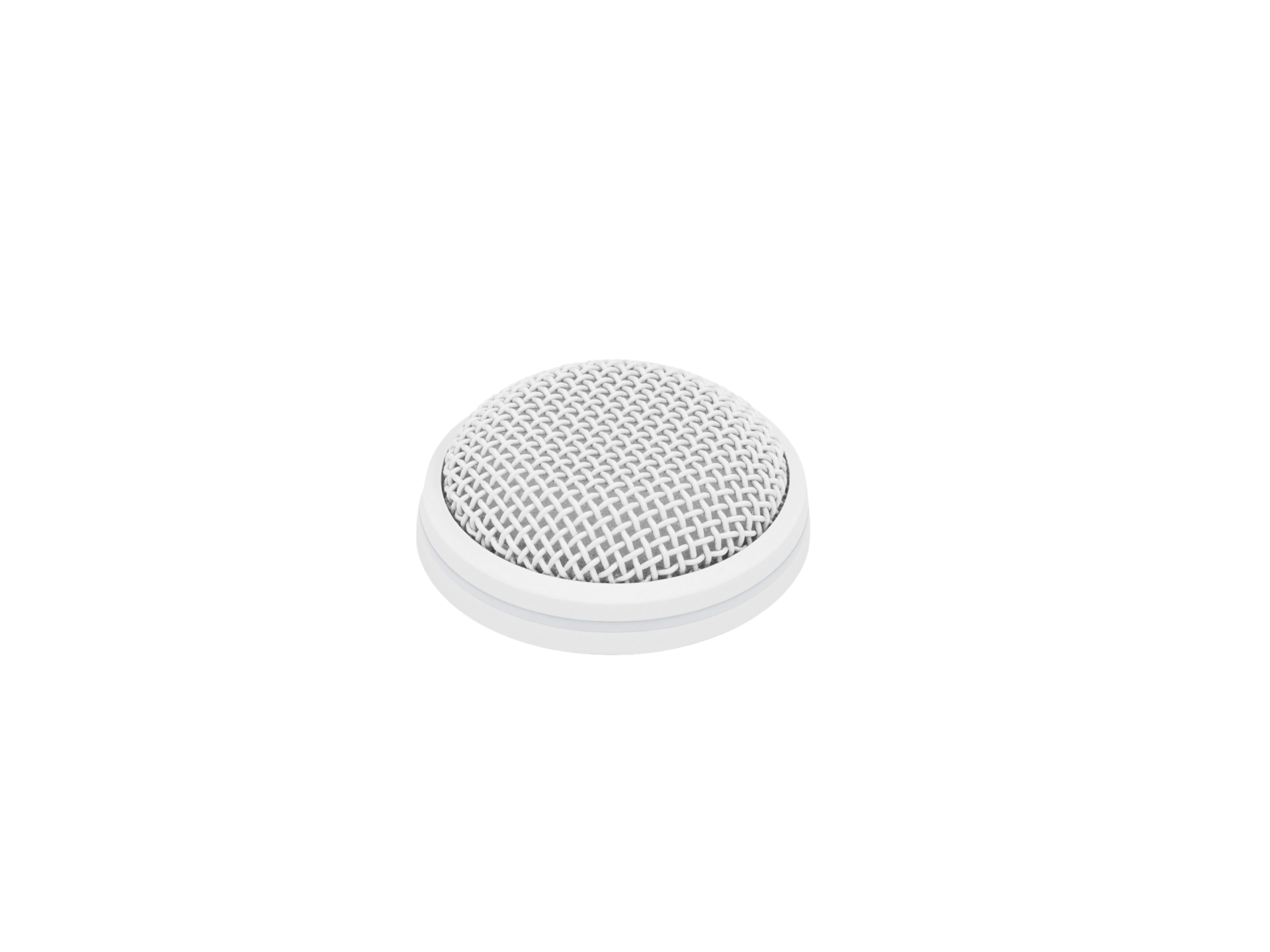

MEB 102 W

Article No. 505601

Boundary installation wired microphone for simple installation in tables or ceiling elements. With its compact, discreet design, this model will fit perfectly into any environment. The omni-directional microphone capsule guarantees optimum speech intelligibility, and its robust housing provides the perfect protection. The model is available in black and white color.

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.

Top Specs

  • DimensionsHeight: 83.26 in (0.47 in above surface), Diameter 1.12 in
  • Weight (g)2.05 oz
  • Max. sound pressure level125 dB
  • Polar patternOmnidirectional
  • Sensitivity16 mV/Pa
  • Transducer principlepre-polarized condenser microphone
  • Transducer typePre-polarised condenser
  • ConnectionWireless

Tech Specs

Product
  • Polar pattern
    Omnidirectional
  • Transducer principle
    pre-polarized condenser microphone
Frequency Specifications
  • Frequency response
    40 Hz – 20 kHz
  • Audio frequency response
    40 Hz to 20 kHz
Acoustic Properties
  • Dynamic range (>)
    104 dB (A)
  • Equivalent noise level (db)
    21 dB (A)
  • Max. sound pressure level
    125 dB
Connectivity
  • Connection
    Wireless
Ambient Conditions
  • Operating temperature (C)
    32 °to 104 ° F
Battery & Power
  • Battery included
    N
  • Phantom power
    P 24 - P 48
  • Phantom powering
    P 24 - P 48
Electrical Properties
  • Sensitivity
    16 mV/Pa
  • Nominal impedance
    200 Ω
Dimensions
  • Dimensions
    Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
  • Height (mm)
    110
  • Length (mm)
    85
  • Weight (g)
    2.05 oz
  • Width (mm)
    40
  • Product height
    110
  • Product length
    85
  • Product weight (g)
    60
  • Product width
    40

Downloads22

.PDF
5.19 MB
Download
.PDF
5.31 MB
Download
.PDF
4.51 MB
Download
.PDF
4.51 MB
Download
.PDF
558.39 KB
Download
.PDF
1.91 MB
Download
.DWG
50.91 KB
Download
.PDF
428.74 KB
Download
.PDF
2.11 MB
Download
.PDF
428.77 KB
Download
.PDF
431.67 KB
Download
.PDF
360.03 KB
Download
.PDF
406.18 KB
Download
.PDF
296.47 KB
Download
.PDF
118.71 KB
Download
.PDF
167.03 KB
Download
.PDF
1.98 MB
Download
.PDF
1.99 MB
Download
.PDF
1.34 MB
Download
.PDF
456.39 KB
Download
.PDF
2.04 MB
Download
.PDF
2.05 MB
Download

Online Manuals01

Responsive Manuals

What's in the box03

  • MEB 102
  • Quickguide
  • Mounting material
