EM 6000 Dante™

Article No. 508475

Features16

  • 19’’ 2-Channel receiver, 19 inch 1RU
  • Large 244 MHz switching bandwidth
  • Legendary Long Range mode (LR) with proprietary audio codec (SeDAC) from the masterpiece Digital 9000
  • Link Density Mode (LD mode) with efficiency-optimized Audio Codec (SePAC) ensures up to 5 channels per MHz bandwidth
  • Equidistant frequency grid for maximum channel density and simplest setup
  • 32 superior quality RF pre-selection filters for optimal suppression of interference signals at antenna input
  • Error correction and audio error masking
  • AES-256 encryption
  • Automatic frequency setup
  • Digital and transformer balanced analog outputs XLR, 6.3 mm jack, AES-3, EM 6000 Dante with Brooklyn II Card and Amphenol RJ-45
  • Integrated antenna splitter for cascading of up to 8 systems
  • one high-quality OLED display per channel
  • Link Quality Indicator (LQI)
  • Wireless Systems Manager (WSM) compatible
  • Compatible with standard Sennheiser UHF antennas
  • Compatible with Digital 9000 transmitters in Long Range mode

Top Specs

  • Dimensions44 x 483 x 373 mm
  • Weight (g)Approx. 5.2 kg
  • Audio input2x BNC (50 Ω)
  • Audio outputAnalog audio outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ), Digital audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit / Dante®, RJ-45: 48 kHz, 96 kHz, 24 bit, Can be externally synchronized using WCLK loop-through with BNC sockets
  • Charging time (h)BA 60: 80 %: approx. 1:15 h (approx. 4:45 h operating time) full: approx. 2:30 h, BA 61: 80 %: approx. 1:45 h (approx. 5:00 h operating time) full: approx. 3:15 h, BA 62: 80 %: approx. 1:15 h (approx. 9:30 h operating time) full: approx. 2:45 h, BA 70 80 %: approx. 1:45 h full: approx. 3:30 h
  • Latency (ms)Analog audio out: 3 ms (LR) / 3.2 ms (LD), Digital audio out: 3 ms (LR) / 3.2 ms (LD) (AES/EBU)
  • Power consumption (Amp)85 W
  • Sensitivity-100 dBm typ.
  • ConnectionWireless

Tech Specs

Product
  • Latency (ms)
    Analog audio out: 3 ms (LR) / 3.2 ms (LD), Digital audio out: 3 ms (LR) / 3.2 ms (LD) (AES/EBU)
  • Receiver principle
    Double superheterodyne
  • Total harmonic distortion (THD)
    < 0.03 % (@ 1 kHz)
Frequency Specifications
  • Frequency response
    30 Hz - 20 kHz (1.5 dB)
  • Audio frequency response
    LR Mode: 30 Hz - 20 kHz (1.5 dB), LR Mode: 30 Hz - 14 kHz (1.5 dB)
Acoustic Properties
  • Dynamic range (>)
    111 dB (A) type
  • Audio output level
    XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
Connectivity
  • Connection
    Wireless
Inputs/Outputs
  • Audio input
    2x BNC (50 Ω)
  • Audio output
    Analog audio outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ), Digital audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit / Dante®, RJ-45: 48 kHz, 96 kHz, 24 bit, Can be externally synchronized using WCLK loop-through with BNC sockets
Ambient Conditions
  • Operating relative humidity (≤ %)
    Max. 85% at 40°C (non-condensing)
  • Operating temperature (C)
    -10 °C to +50 °C (14 °F to 122 °F)
Battery & Power
  • Battery included
    N
  • Charging time (h)
    BA 60: 80 %: approx. 1:15 h (approx. 4:45 h operating time) full: approx. 2:30 h, BA 61: 80 %: approx. 1:45 h (approx. 5:00 h operating time) full: approx. 3:15 h, BA 62: 80 %: approx. 1:15 h (approx. 9:30 h operating time) full: approx. 2:45 h, BA 70 80 %: approx. 1:45 h full: approx. 3:30 h
  • Power consumption (Amp)
    85 W
  • Charging voltage (V)
    BA 60/BA 61: 4.2 V BA 62: 4.35 V BA 70: 4.35 V
Electrical Properties
  • Sensitivity
    -100 dBm typ.
Technology
  • Network protocol
    IEEE 802.3 (1000 Mbit/s), shielded RJ-45 connection
  • Encryption
    AES 256
  • Codecs
    SeDAC (Sennheiser Digital Audio Codec), SePAC (Sennheiser Performance Audio Codec)
  • Transmission method
    Digital modulation, Long Range Mode (LR): Min. frequency spacing for equidistant grid: 400 kHz, Link Density Mode (LD):Min. frequency spacing for equidistant grid: 200 kHz
Dimensions
  • Dimensions
    44 x 483 x 373 mm
  • Height (mm)
    175
  • Length (mm)
    550
  • Weight (g)
    Approx. 5.2 kg
  • Width (mm)
    435
  • Product height
    44
  • Product length
    373
  • Product weight (g)
    5200
  • Product width
    483

Downloads24

  • .PDF
    ·
    3.2 MB
    Download
  • .PDF
    ·
    837.86 KB
    Download
  • .PDF
    ·
    559.94 KB
    Download
  • .STP
    ·
    35.04 MB
    Download
  • .DWG
    ·
    2.39 MB
    Download
  • .DWG
    ·
    2.41 MB
    Download
  • .PDF
    ·
    273.4 KB
    Download
  • .PDF
    ·
    119.81 KB
    Download
  • .PDF
    ·
    109.55 KB
    Download
  • .PDF
    ·
    211.08 KB
    Download
  • .PDF
    ·
    547.8 KB
    Download
  • .PDF
    ·
    160.07 KB
    Download
  • .PDF
    ·
    4.19 MB
    Download
  • .PDF
    ·
    395.16 KB
    Download
  • .DOCX
    ·
    15.02 KB
    Download
  • .ZIP
    ·
    4.16 MB
  • .ZIP
    ·
    4.16 MB
  • .ZIP
    ·
    4.47 MB
  • .PDF
    ·
    120.88 KB
    Download
  • .PDF
    ·
    2.52 MB
    Download

What's in the box07

  • 1 EM 6000
  • 1 mains cable (with EU, UK or US plug)
  • Quick guide
  • Safety guide

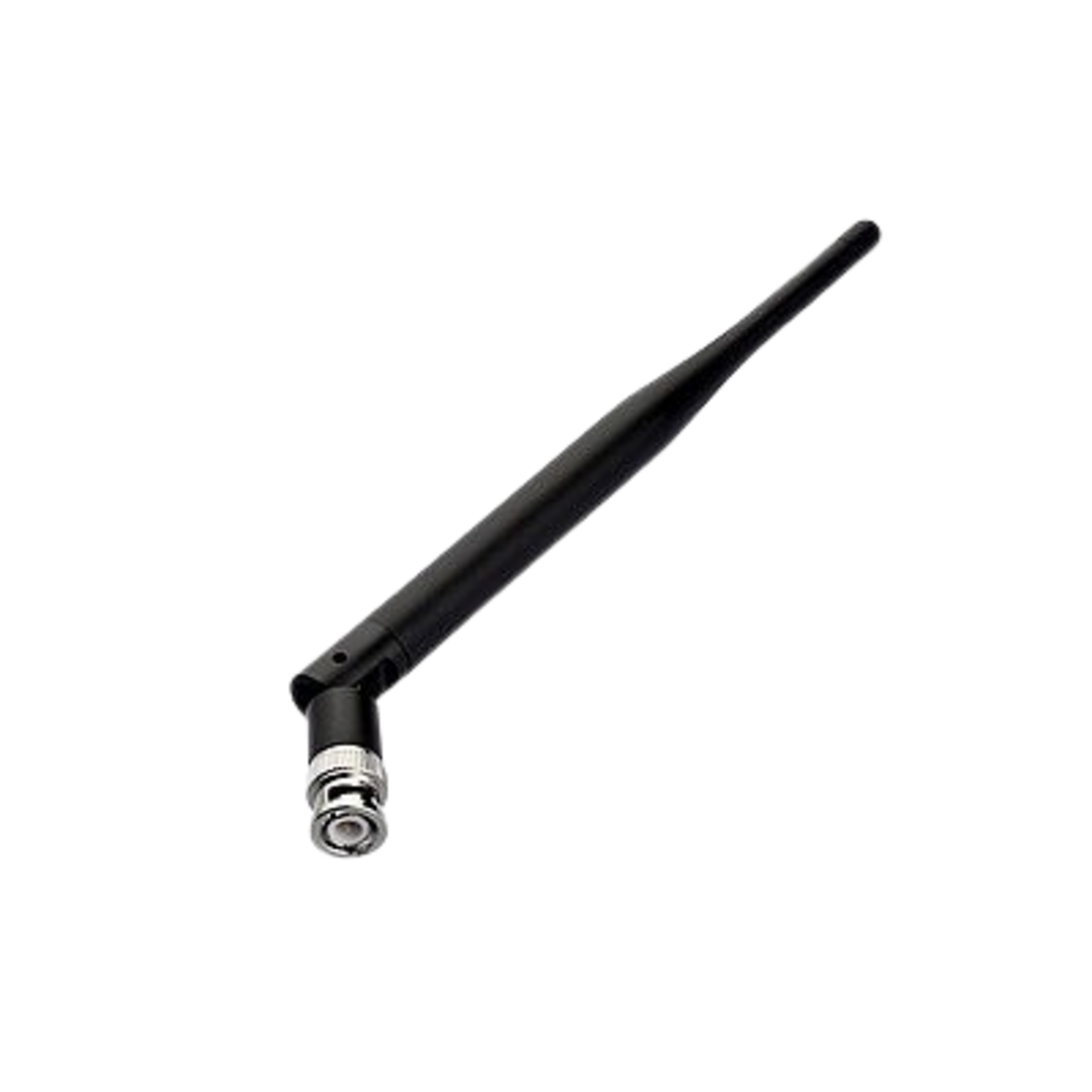

  • 2 Antennas
  • 2 BNC Antenna Cables (50 Ω) for Daisy-Chaining
  • 2 Rubber Feet
