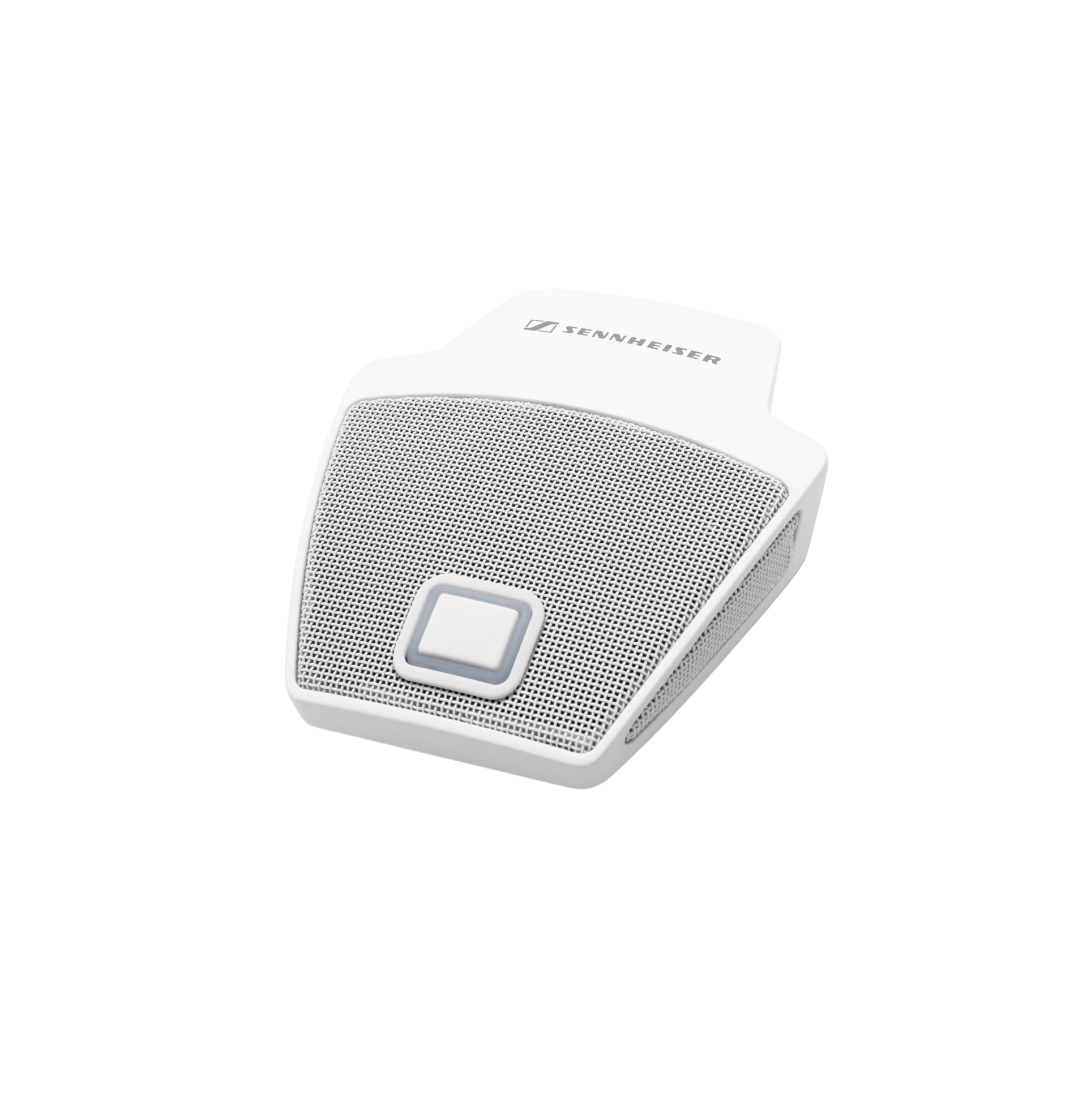

• SpeechLine_Wired_MEB_114_S_Product_shot_Isofront_cutout_W.png
Article No. 505616

MEB 114-S W

Overview

Wired table boundary microphone with half-cardioid pickup pattern. Thanks to its sturdy housing and high-quality microphone capsule, the MEB-S 114 guarantees optimum speech intelligibility. The MEB 114-S has a programmable microphone button (PTT, PTM, Toggle on/off, Permanent on) and a two-color LED ring as a status indicator. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black and white color.

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. In its –S version it additionally features a programmable microphone button (PTT, PTM, toggle ON/off, permanent on), and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Features01

  • Microphone modes: Toggle on/off Push to mute Push to talk permanent on (external LED control)

Top Specs

  • Dimensions3.34 x 3.93 x 0.98 in (W x D x H)
  • Weight (g)10.26 oz
  • Max. sound pressure level140 dB
  • Polar patternCardioid
  • Sensitivity10 mV/Pa
  • Transducer principlepre-polarized condenser microphone
Tech Specs
Product
  • Polar pattern
    Cardioid
  • Transducer principle
    pre-polarized condenser microphone
Frequency Specifications
  • Frequency response
    40 Hz – 20 kHz
Acoustic Properties
  • Dynamic range (>)
    111 dB (A)
  • Equivalent noise level (db)
    29 dB (A)
  • Max. sound pressure level
    140 dB
Ambient Conditions
  • Operating temperature (C)
    14 ° to 122 ° F
Battery & Power
  • Phantom powering
    P 24 - P 48
Electrical Properties
  • Sensitivity
    10 mV/Pa
  • Nominal impedance
    200 Ω
  • Output voltage
    High level output voltage > 2.4 V, low level output voltage < 0.4 V
Dimensions
  • Dimensions
    3.34 x 3.93 x 0.98 in (W x D x H)
  • Height (mm)
    58
  • Length (mm)
    205
  • Weight (g)
    10.26 oz
  • Width (mm)
    170
Downloads24
  • Outline dimensions MEB 114-S (DWG)
    .DWG
    ·
    436.16 KB
    Download
  • Quick guide MEB 114/-S
    .PDF
    ·
    312.96 KB
    Download
  • Safety instructions Speechline Series
    .PDF
    ·
    767.48 KB
    Download
  • Bedienungsanleitung SpeechLine Wired
    .PDF
    ·
    5.19 MB
    Download
  • Instruction Manual SpeechLine Wired
    .PDF
    ·
    5.31 MB
    Download
  • Manual de instrucciones SpeechLine Wired
    .PDF
    ·
    4.51 MB
    Download
  • Notice d'emploi SpeechLine Wired
    .PDF
    ·
    4.51 MB
    Download
  • Produktdatenblatt MEB 114, MEB 114-S
    .PDF
    ·
    346.82 KB
    Download
  • Product Specification MEB 114, MEB 114-S
    .PDF
    ·
    346.18 KB
    Download
  • Hoja de datos del producto MEB 114, MEB 114-S
    .PDF
    ·
    346.52 KB
    Download
  • Fiche technique du produit MEB 114, MEB 114-S
    .PDF
    ·
    346.69 KB
    Download
  • Produktdatenblatt Dante™ Kit MEB 114-S
    .PDF
    ·
    399.98 KB
    Download
  • Product specification Dante™ Kit MEB 114-S
    .PDF
    ·
    399.51 KB
    Download
  • Especificaciones del producto Dante™ Kit MEB 114-S
    .PDF
    ·
    399.97 KB
    Download
  • Fiche technique du produit Dante™ Kit MEB 114-S
    .PDF
    ·
    400.14 KB
    Download
  • Connection Guide MEB 114 & MEB 114-S
    .PDF
    ·
    449.12 KB
    Download
  • Connection Guide 2x MEB 114-S with TeamConnect
    .PDF
    ·
    313.58 KB
    Download
  • Connection Guide 2x MEB 114-S with Biamp Nexia / Tesira
    .PDF
    ·
    134.42 KB
    Download
  • Connection Guide 2x MEB 114-S with Polycom SoundStructure
    .PDF
    ·
    197.64 KB
    Download
  • Mikrofonleitfaden SpeechLine microphones
    .PDF
    ·
    1.98 MB
    Download
  • Application guide SpeechLine microphones
    .PDF
    ·
    1.99 MB
    Download
  • Guia de aplicación SpeechLine microphones
    .PDF
    ·
    1.34 MB
    Download
  • Product brochure SpeechLine Wired
    .PDF
    ·
    2.04 MB
    Download
  • Brochure du produit SpeechLine Wired
    .PDF
    ·
    2.05 MB
    Download
What's in the box03
  • MEB 114 Microphone
  • Quickguide
  • Cable
