MKH 50-P48

Article No. 003109

Super-cardioid microphone designed for use as a soloist's or spot microphone for applications requiring a high degree of side-borne sound muting and feedback rejection. Frequency-independent directional characteristics.

Pressure gradient microphone with super-cardioid pick-up pattern.

Features⁰⁷

Pressure gradient microphone with super-cardioid pick-up pattern
High rejection of lateral sounds
Constant directivity over the whole frequency range
Exceptionally low inherent self-noise
High sensitivity
Switchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5m
Switchable pre-attenuation

Top Specs

DimensionsØ 25 x 153 mm
Weight (g)590
Max. sound pressure level134 (142) dB / 1 kHz
Transducer principleRF condenser microphone

Tech Specs

Product

Transducer principle
RF condenser microphone

Acoustic Properties

Equivalent noise level (db)
12 (18) dB
Max. sound pressure level
134 (142) dB / 1 kHz
Pick-up pattern
super-cardioid

Battery & Power

Battery specification
48 +- 4 V Phantom

Electrical Properties

Nominal impedance
150 Ω
Min. terminating impedance
1000 Ω

Dimensions

Dimensions
Ø 25 x 153 mm
Height (mm)
350
Length (mm)
135
Weight (g)
590
Width (mm)
66
Product height
350
Product weight (g)
590
Product width
66

Downloads⁰⁴

Others

Safety instructions - MKH 20/30/40/50/60/70
.PDF
·
677.91 KB
Download
Quick guide - MKH 50-P48
.PDF
·
1.78 MB
Download
EU Declaration of conformity MKH series
.PDF
·
227.71 KB
Download
The MKH Story
.PDF
·
1.18 MB
Download

What's in the box⁰⁵

1 MKH 50,
1 MZS 40 shock mount,
1 MZW 41 windshield

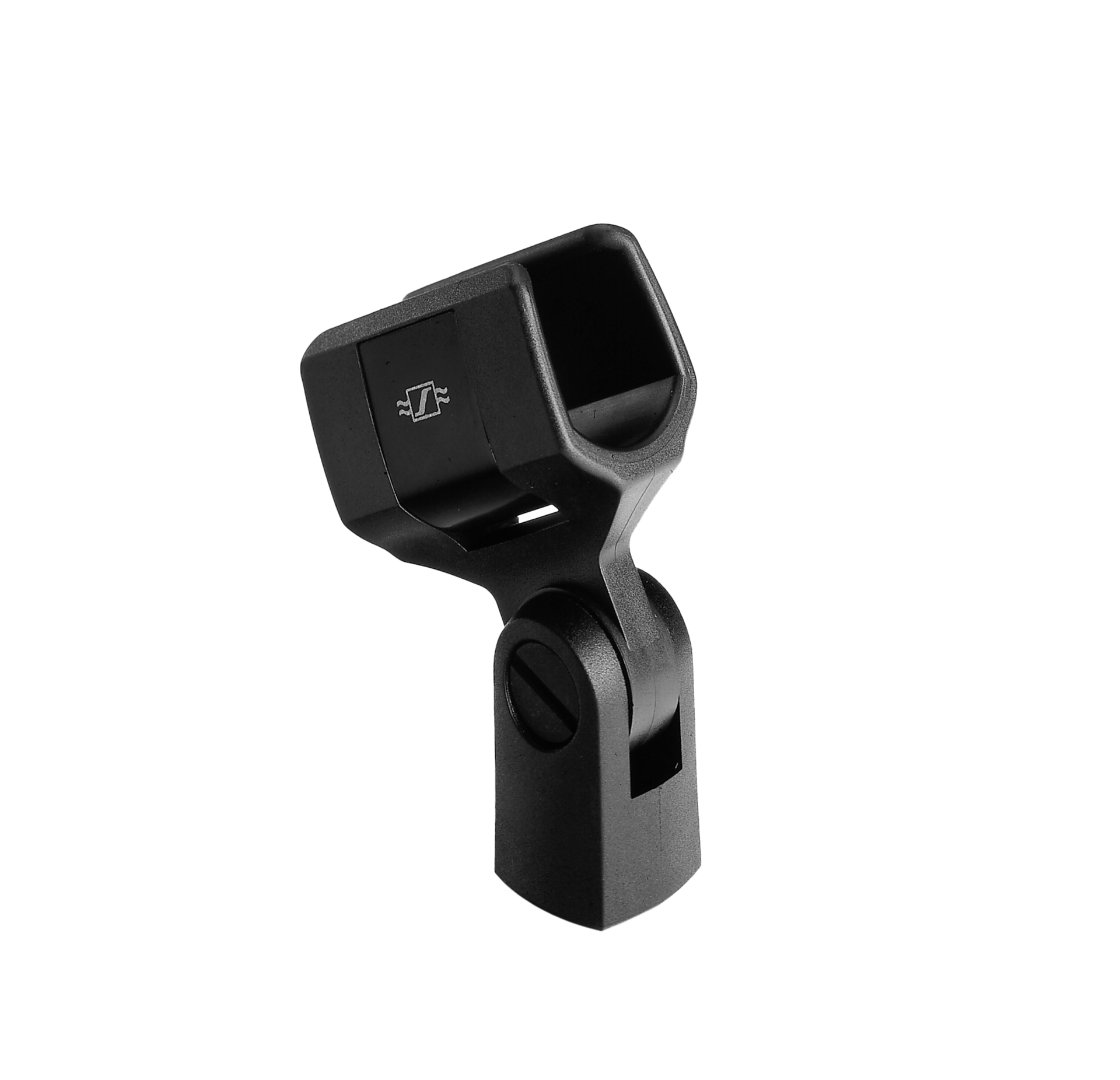

1 Easy release clamp MZQ 40
Case 340x125x60

Accessories and spare parts⁰⁸

SK 300 G4-RC-AW+
