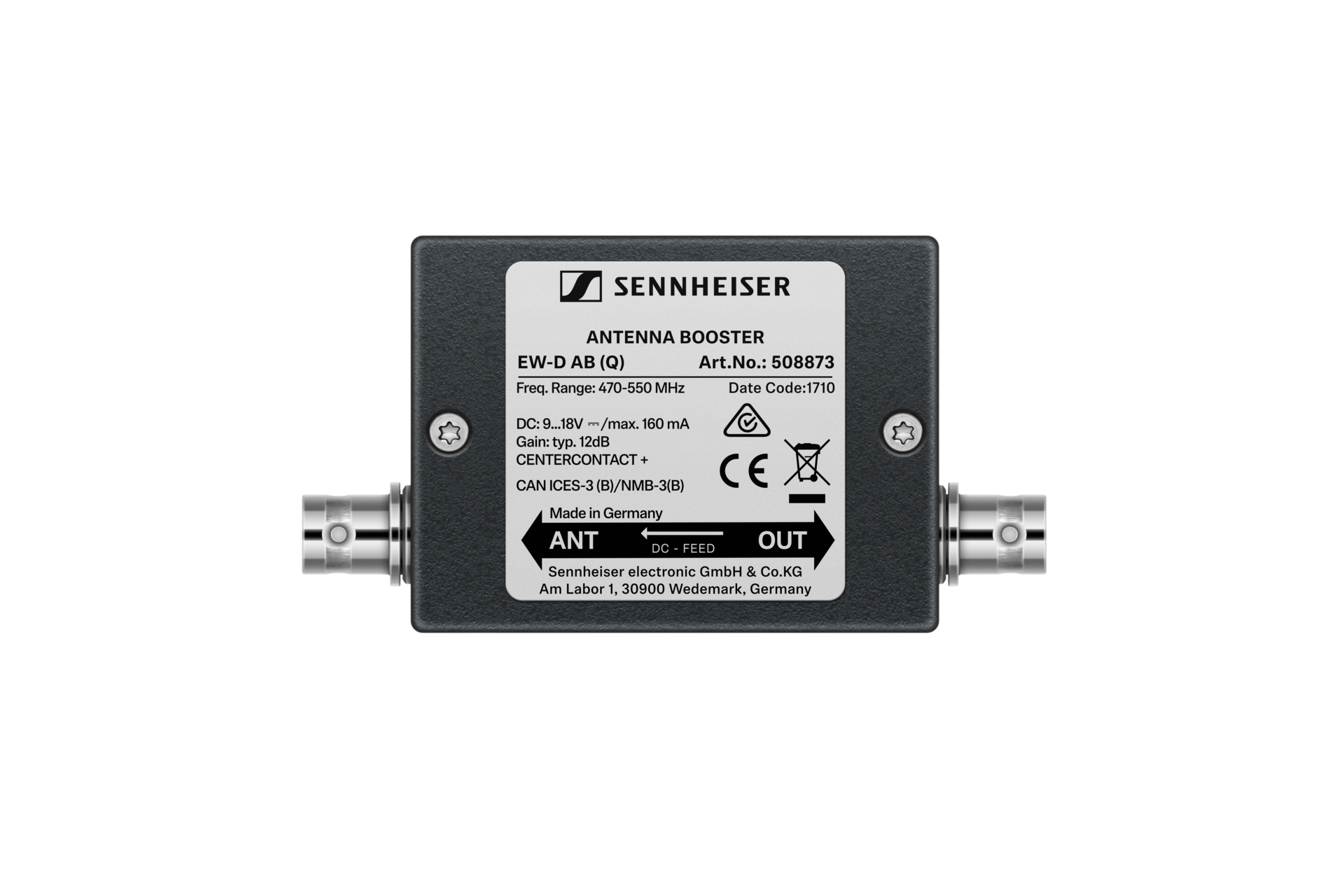

EW-D AB (Q)

Article No. 508873

Features07

  • High-quality frequency-selective antenna booster optimized for using EW-D and EW-DX series receivers
  • Support of different Frequency Ranges
  • + 12dB Gain
  • BNC connectors
  • 9…18V DC Input via antenna cable line
  • Indication for sufficient DC Power on Device
  • DC pass-through for connecting additional antenna booster

Top Specs

  • Weight (g)173

Tech Specs

Dimensions
  • Height (mm)
    30
  • Length (mm)
    125
  • Weight (g)
    173
  • Width (mm)
    85
  • Product height
    30
  • Product weight (g)
    173
  • Product width
    85

Downloads04

  • Instruction Manual - EW-D AB
    .PDF
    ·
    765.77 KB
    Download
  • Instruction manual and frequently asked questions - Evolution Wireless Digital (EW-D | EW-DX | EW-DP) (PDF)
    .PDF
    ·
    42.48 MB
    Download
  • Product specification - EW-D AB
    .PDF
    ·
    127.29 KB
    Download
  • EU Declaration of Conformity - Evolution Wireless Digital
    .PDF
    ·
    1.4 MB
    Download

What's in the box03

  • 1 EW-D AB Antenna Booster
  • 1 BNC cable
  • 1 instruction manual
