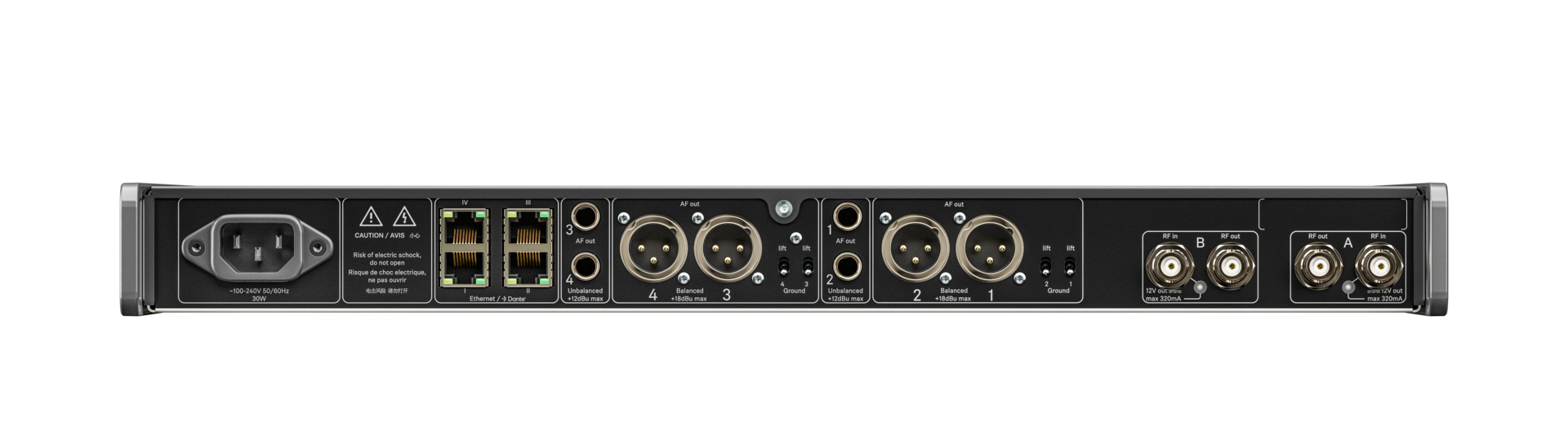

EW-DX EM 4 DANTE (Y1-3)
Article No. 509383
Features18
- Four-channel digital full rack (19") receiver with internal PSU and with Dante® in rugged metal housing
- Up to 88 MHz switching bandwidth
- Auto-switching PSU with IEC Connection
- Four network ports for flexible network configurations - each port can be assigend as: Control, Control + Dante® Prim, Control + Dante® Sec, Dante® Prim, Dante® Sec
- Integrated antenna splitter with antenna power and loop through to daisy chain up to 16 channels (4 x EW-DX EM 4)
- Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
- Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager and 3rd party media control systems via plug-in
- Ethernet connectivity (IPv4 and IPv6)
- Secure transmission of confidential content using AES 256 encryption
- AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
- Link Quality Indicator (LQI) showing the quality of the links seperate to the RF levels
- Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters
- Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
- Selective headphone output with volume control on front panel
- Extended menu settings such as custom frequency list, selectable sync parameter and walk test
- Worldwide usage (specific frequencies subject to local RF regulations)
Top Specs
- Dimensions483 x 44 x 373 mm (19" x 1.73" x 14.66")
- Audio output2x 70 mW @ 32 Ω
- Latency (ms)1.9 ms
- Power consumption (Amp)max. 37 W
Tech Specs
Product
- Total harmonic distortion (THD)≤ -60 dB for 1 kHz @ -3 dBfs input level
- Latency (ms)1.9 ms
Frequency Specifications
- Audio frequency response20 Hz - 20 kHz (-3 dB)
Acoustic Properties
- Dynamic range (>)134 dB
- Audio output level18 dBu max.
Inputs/Outputs
- Audio output2x 70 mW @ 32 Ω
Ambient Conditions
- Operating relative humidity (≤ %)5 - 95 % (non-condensing)
- Operating temperature (C)-10 °C - +55 °C (14 °F - 131 °F)
Battery & Power
- Power consumption (Amp)max. 37 W
Electrical Properties
- Input voltage90 - 265 V AC, 47 - 63 Hz
- Transmission power (mA)BLE: max. 10 mW EIRP
Dimensions
- Dimensions483 x 44 x 373 mm (19" x 1.73" x 14.66")
- Product height44 mm (1.73")
- Product weight (g)approx. 4560 g (10.1 lbs) (without antennas and power supply)
- Product width373 mm (14.66")
Bluetooth
- Bluetooth transmission frequency2402 - 2480 MHz
Downloads45
- Instruction manual and frequently asked questions - Evolution Wireless Digital (EW-D | EW-DX | EW-DP) (PDF).PDF·42.48 MBDownload
- Frequency presets - EW-DX Range V5-7 (941.700 - 951.800 MHz & 953.050 - 956.050 MHz & 956.650 - 959.650 MHz).PDF·110.33 KBDownload
What's in the box07
- (1) EW-DX EM 4 Dante rack receiver
- (2) rod antennas
- (2) BNC antenna cables (50 Ω) for daisy-chaining
- (3) mains cables (EU, UK or US plug)
- (1) Quick guide
- (1) Safety guide
- (1) Manufacturer declaration sheet
