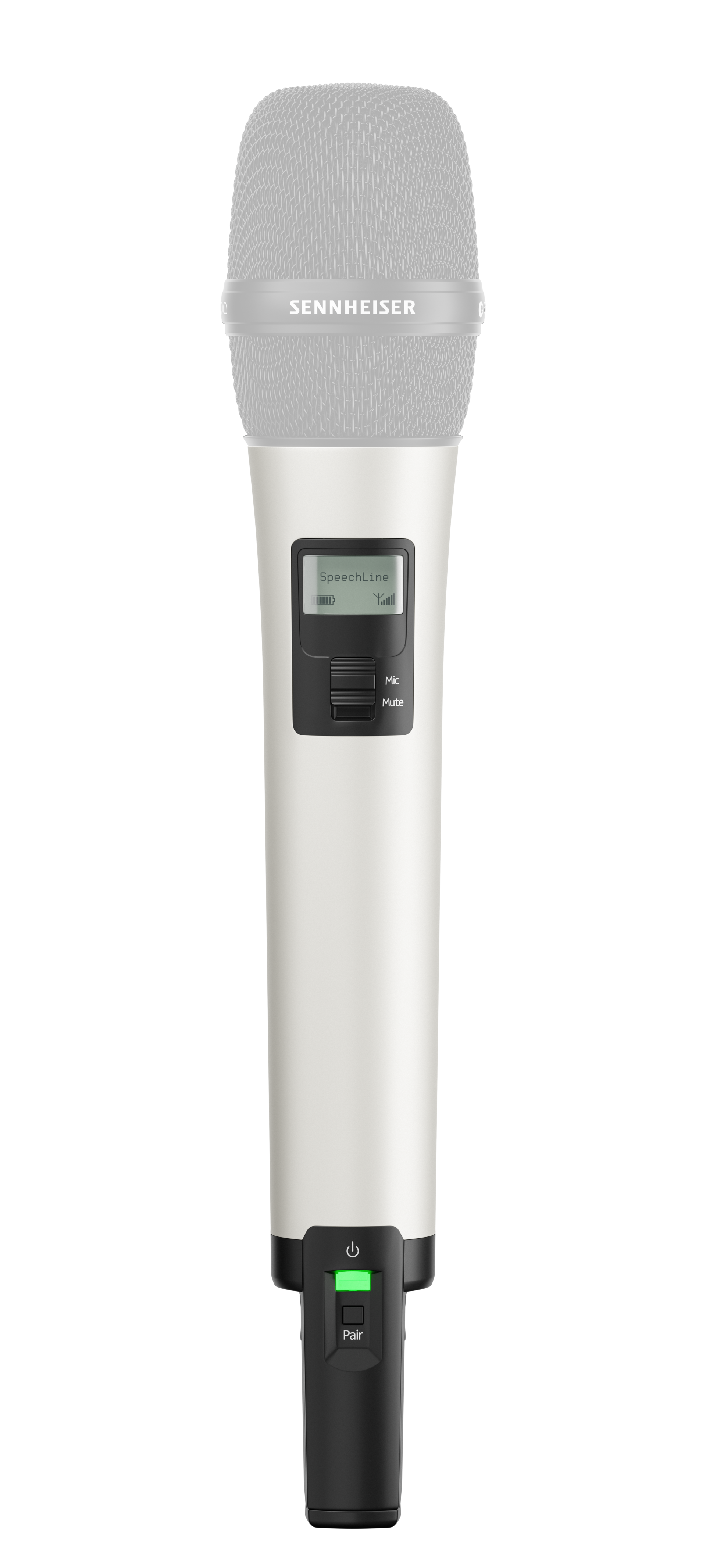

  • SpeechLine_Digital_Wireless_Handheld_open-sennheiser-1312Change to image slide 0

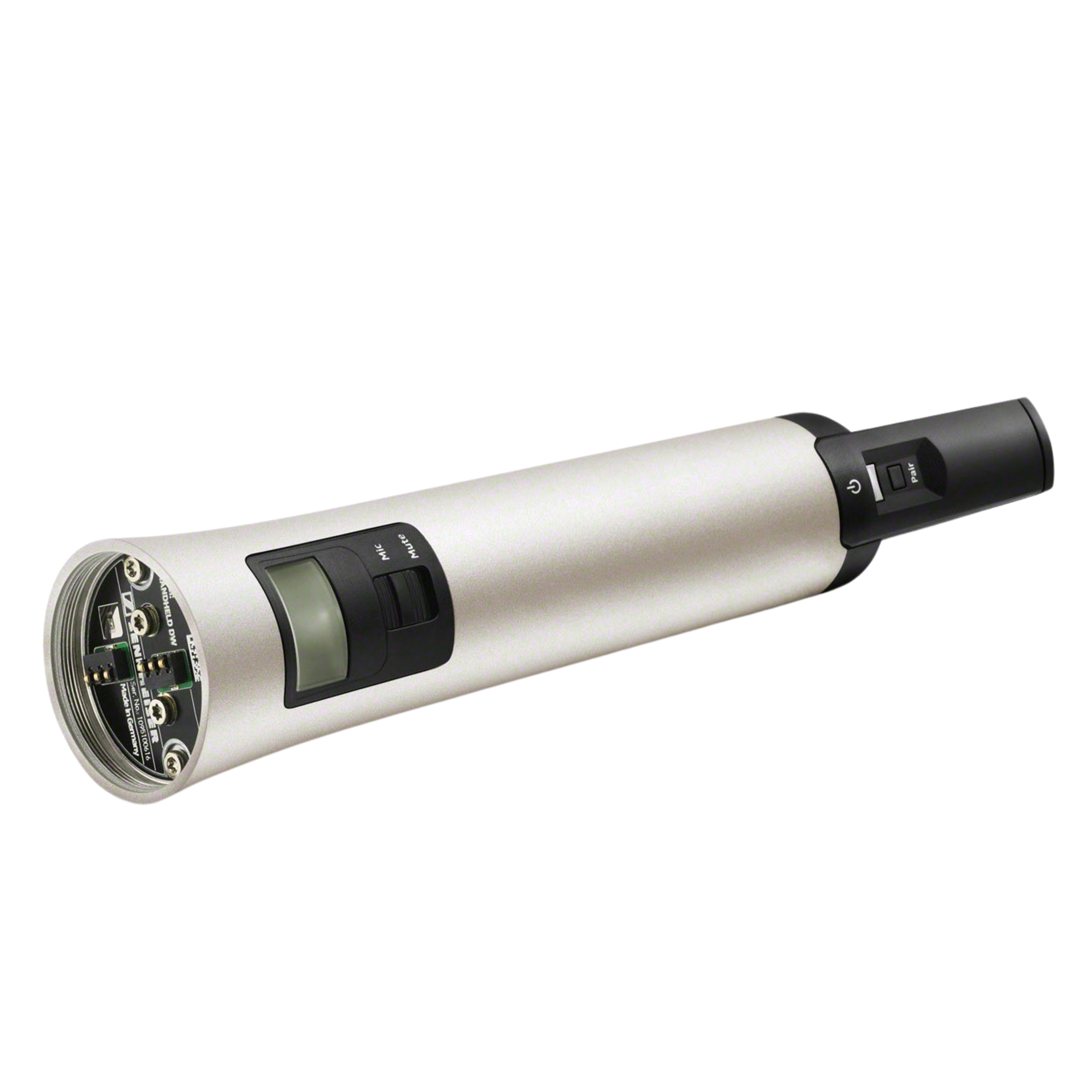

  • Speechline_Digital_Wireless_Product_shot_cutout_SL_Handheld_DW_FrontChange to image slide 1

SL Handheld DW-3-EU

Article No. 505884
Help me find the right variant

Features07

  • Automatic frequency and interference management
  • Speech optimized condenser microphone capsule
  • Clear and easy focused user interface
  • Long operation time (up to 15 hours)
  • Advanced power management and Li-Ion rechargeables
  • Secure 256 bit AES encryption
  • Remote controllable

Top Specs

  • Weight (g)approx. 262 g incl. microphone head
  • Signal-to-noise ratio> 90 dB(A)
  • Transducer typeTrue condenser
  • ConnectionWireless

Tech Specs

Product
  • Total harmonic distortion (THD)
    typ. 0.1 %
Frequency Specifications
  • Frequency response
    20 to 20,000 Hz
  • Audio frequency response
    50 to 20,000 Hz
Acoustic Properties
  • Dynamic range (>)
    > 120 dB(A)
  • Sampling rates
    24 bit/48 kHz
  • Signal-to-noise ratio
    > 90 dB(A)
Connectivity
  • Connection
    Wireless
Ambient Conditions
  • Operating relative humidity (≤ %)
    max. 95 %
  • Operating temperature (C)
    –10 °C to +55 °C (14 °F to 131 °F)
Battery & Power
  • Battery capacity (Ah)
    2.2
  • Battery count
    1
  • Battery included
    Y
  • Battery voltage (V)
    3.6
  • Battery operating time (h)
    Accupack: typ. 15 h Batteries: typ. 10 h
Dimensions
  • Height (mm)
    73
  • Length (mm)
    350
  • Weight (g)
    approx. 262 g incl. microphone head
  • Width (mm)
    81
  • Product height
    73
  • Product length
    350
  • Product weight (g)
    262
  • Product width
    81

Downloads13

.PDF
16.17 MB
.PDF
16.11 MB
.PDF
584 KB
.DWG
164.96 KB
.PDF
1.46 MB
.PDF
1.46 MB
.PDF
1.46 MB
.PDF
191.77 KB
.PDF
191.58 KB
.PDF
188.75 KB
.PDF
195.13 KB
.PDF
196.41 KB
.PDF
5.57 MB

What's in the box05

  • SL Handheld DW
  • MME 865 capsule (Art. No. 505885, Art. No. 505901, Art. No. 505921, Art. No. 505911, Art. No. 506706)
  • BA 10 rechargable battery
  • Microphone clamp
  • Product variants without microphone capsule: Art. No. 505884, Art. No. 505902, Art. No. 505922, Art. No. 505912, Art. No. 506705

Accessories and spare parts03
