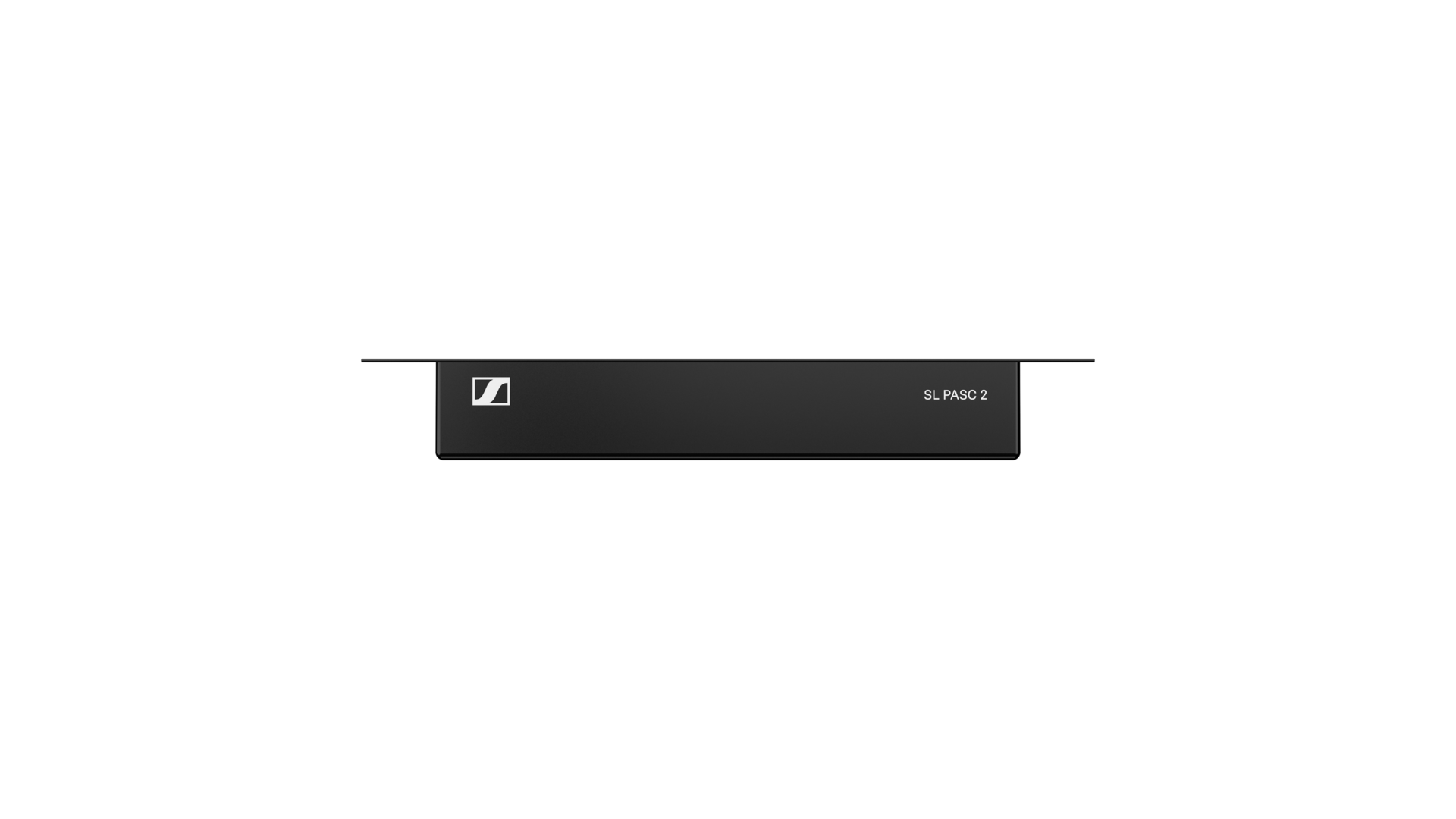

SL PASC 2

Article No. 390040

The SL PASC 2 is a passive 2-way Diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series.

The SL PASC 2 is a passive 2-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 2 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 2 using the supplied SMA-R cables.

Features⁰⁵

1880 - 1930 MHz (DECT range)
4 RF outputs for connecting up to 2 SL Rack Receiver DW units
2 RF inputs to connect AWM 2 or AWM 4
RP-SMA connectors
Passive antenna combiner / splitter

Top Specs

Dimensions150 x 50 x 21 mm
Weight (g)135g

Tech Specs

Ambient Conditions

Operating temperature (C)
-40 to 85°C

Dimensions

Dimensions
150 x 50 x 21 mm
Height (mm)
80
Length (mm)
350
Weight (g)
135g
Width (mm)
280
Product height
80
Product weight (g)
135g
Product width
280
