• Sennheiser_XSW_Series_XSW-D_PORTABLE_BASE_SET_01
Article No. 508621

XSW-D Portable Base Set

Overview

Makes capturing wireless audio for your camera easier than ever before. The instant syncing 3.5mm transmitter and 3.5mm receiver is complication-free.

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes wireless audio for your DSLR easier than ever before while maintaining a reliable connection.

Features07

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver

Top Specs

  • DimensionsXSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
  • Weight (g)355
  • Audio Outputmax. 12 dBu
  • Charging Timetyp. 3 h
  • Latency< 4 ms
  • Signal_to_Noise_Ratio≥ 106 dB
Tech Specs
Product
  • Latency
    < 4 ms
  • Total Harmonic Distortion
    < 0.1 %
Frequency Specifications
  • Audio Frequency Response
    3.5 mm Jack/XLR: 80 - 18,000 Hz
Acoustic Properties
  • Signal_to_Noise_Ratio
    ≥ 106 dB
Inputs/Outputs
  • Audio Output
    max. 12 dBu
Ambient Conditions
  • Operating Relative Humidity
    95 % (non-condensing)
  • Operating Temperature
    -10 °C to +55 °C (14 °F to 131 °F)
Battery & Power
  • Charging Time
    typ. 3 h
  • Battery Specification
    Li-Ion
  • Battery Operating Time
    up to 5 h
Electrical Properties
  • Transmission Power
    max. 10 mW
Technology
  • Codecs
    aptX® Live
Dimensions
  • Dimensions
    XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
  • Height (mm)
    70
  • Length (mm)
    240
  • Master Carton Height (mm)
    260
  • Master Carton Length (mm)
    305
  • Master Carton Weight (g)
    373.558
  • Master Carton Width (mm)
    305
  • Weight (g)
    355
  • Width (mm)
    115
  • Package Depth
    115
  • Package Height
    70
  • Package Weight
    330.1
  • Package Width
    240
Downloads07

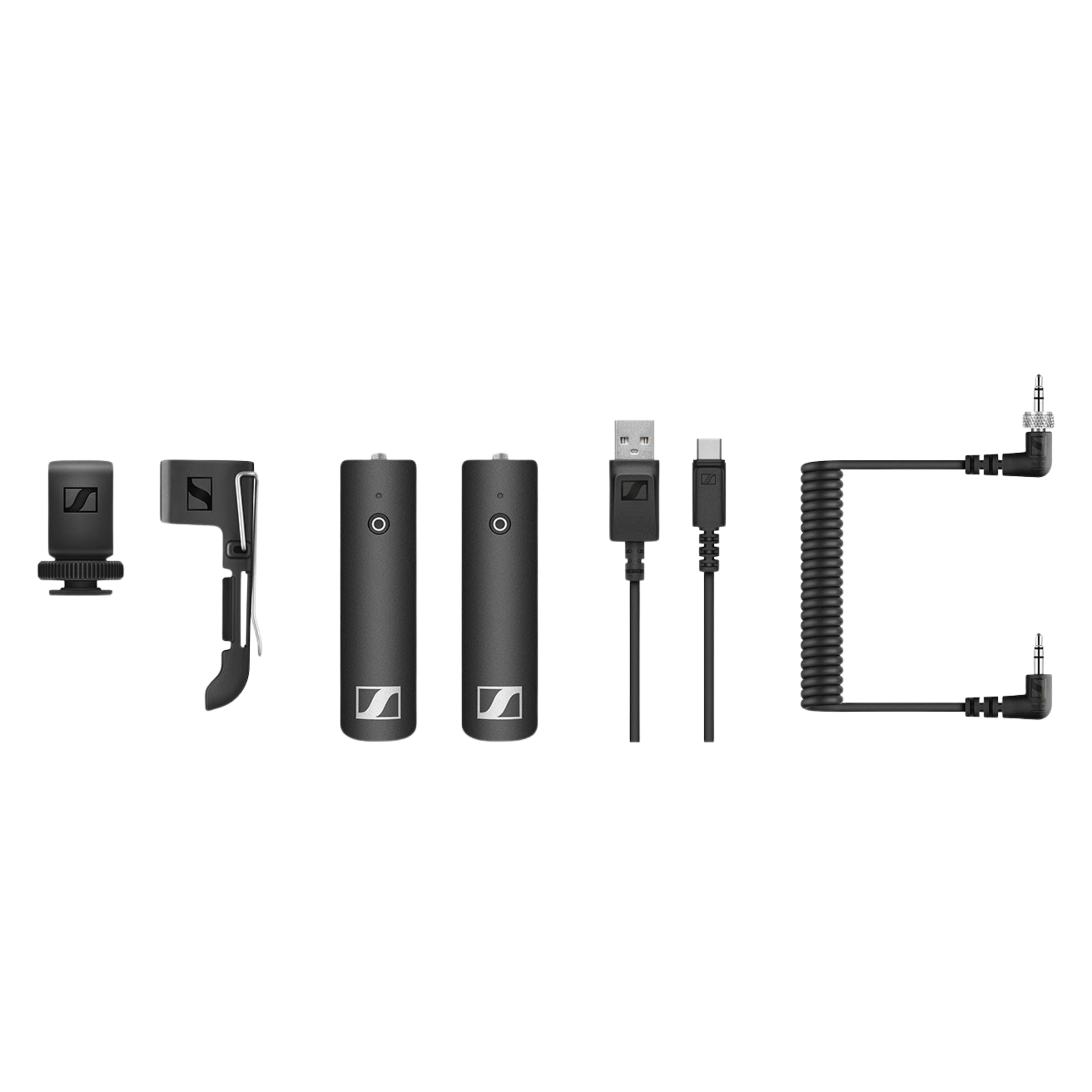

What's in the box06
  • XSW-D 3.5mm (1/8”) transmitter
  • XSW-D 3.5mm (1/8”) receiver
  • 3.5mm coiled cable
  • Cold shoe mount
  • Belt clip
  • USB-A to USB-C charging cable
