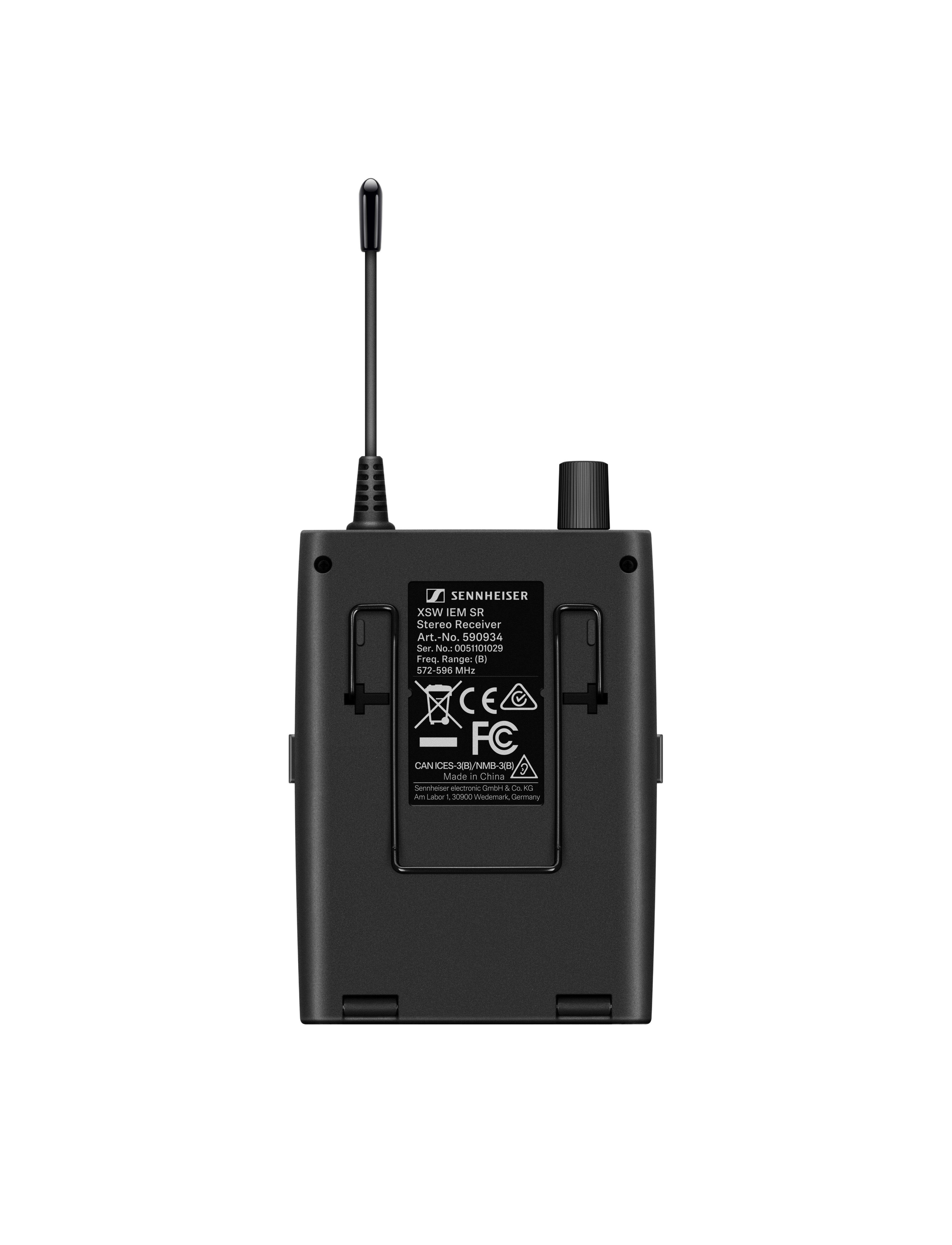

  • XS_Wireless_IEM_EK_Product_Shot_Cutout_Receiver_Back.png

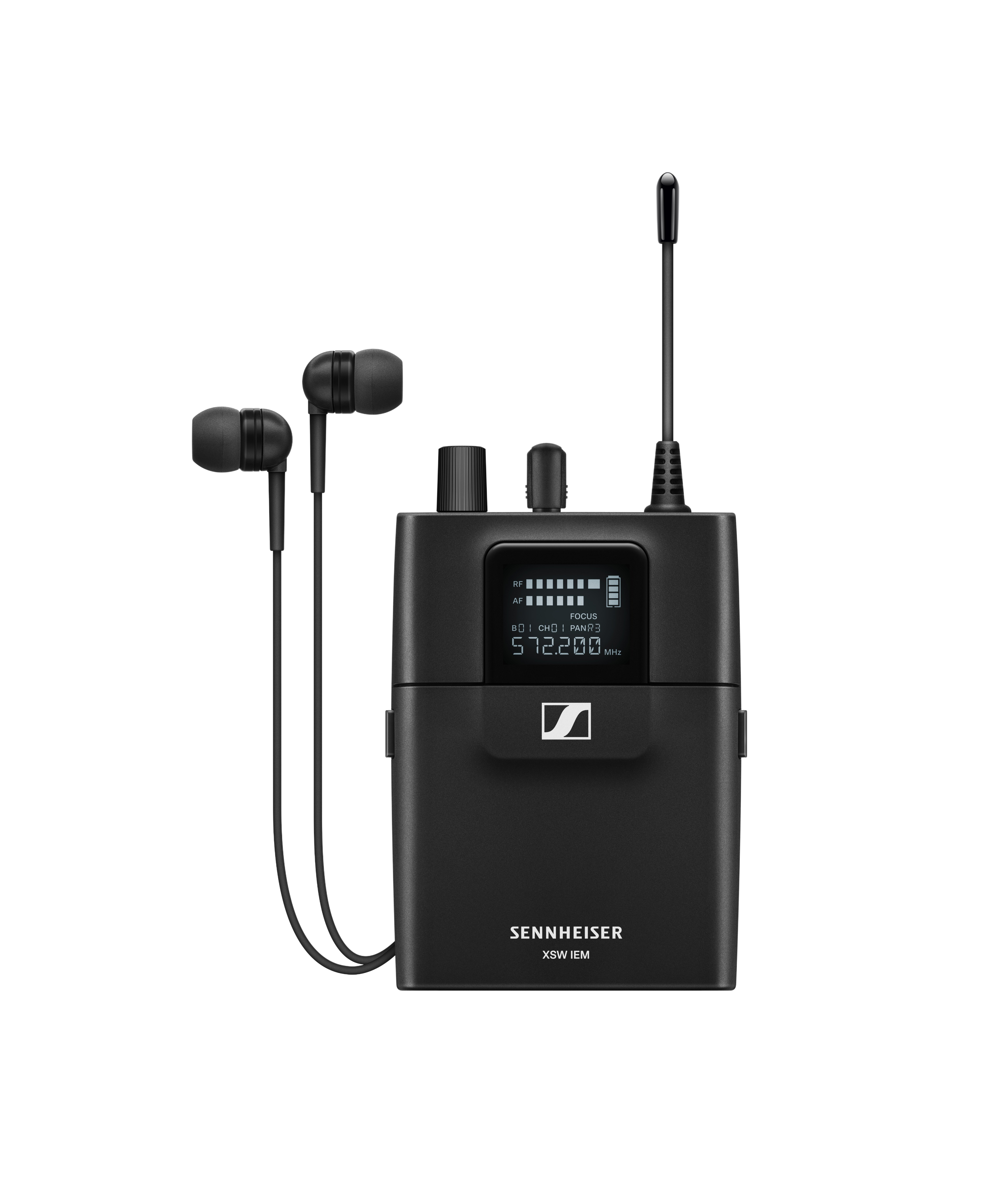

  • XS_Wireless_IEM_EK_Product_Shot_Cutout_Receiver_Front_IE_4.png
Article No. 509156

XSW IEM EK (A)

Overview

With XS Wireless IEM, you can easily link additional receivers to one transmitter – connecting more band members to a new level of detail. The lightweight bodypack remains unnoticed once clipped on your clothing or belt. You can plug in the included IE 4 in-ear monitors or upgrade to the IE PRO series with the 3.5 mm output. The status LED shows battery and link status at a glance – while the high contrast front panel allows for individual fine-tuning, from balance to focus modes to EQ to Limiter, so you can design your individual mix.

A professional IEM receiver is unnoticeable most of the time, but becomes a powerful tool with just a few clicks. That is the DNA of the lightweight XS Wireless IEM bodypack. You can easily expand any XS Wireless IEM setup by connecting additional receivers to your transmitter. Its small status LED is all you might see during rehearsals or gigs. It signals both battery and wireless link status. The LC display only lights up when you access the well-secured settings panel. With just a few clicks, you can balance your in-ear mix, switch between focus modes, use an EQ for elevated high frequencies, enable the limiter, choose a new option from the preset channels, or set your frequency manually. The standard 3.5 mm output is open for the included pair of IE 4 in-ear monitors – or you can upgrade your sound with a model of the IE PRO in-ear monitor line. Advanced features like the limiter help you to protect your ears by clamping down on sudden loud signals. With the EQ option, you can get more air and extra brightness by boosting your sound at 13 kHz. The bodypack operates with two AA primary cells or rechargeable batteries. Depending on the volume level, you can expect about six hours of operating time.

Features07

  • UHF bodypack receiver to expand existing XS Wireless IEM setups
  • Lightweight bodypack with rear clamp and stage-proof control panel
  • Standard 3.5 mm jack plug for supplied IE 4 in-ear monitors or optional in-ear sets
  • Backlit front panel and status LED for battery and link status
  • Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
  • Pan control for individual balance of the input channels
  • Operates with 2x AA primary cells or rechargeable batteries

Top Specs

  • DimensionsApprox. 95 x 70 x 26 mm
  • Weight (g)268
Tech Specs
Product
  • Total Harmonic Distortion
    ≤ 1 %
Frequency Specifications
  • AF Frequency Response
    45 Hz to 15 kHz
Battery & Power
  • Battery Operating Time
    Approx. 6 hrs
Dimensions
  • Dimensions
    Approx. 95 x 70 x 26 mm
  • Height (mm)
    33
  • Length (mm)
    185
  • Master Carton Height (mm)
    160
  • Master Carton Length (mm)
    390
  • Master Carton Weight (g)
    280
  • Master Carton Width (mm)
    390
  • Weight (g)
    268
  • Width (mm)
    125
  • Package Depth
    125
  • Package Height
    33
  • Package Weight
    268
  • Package Width
    185
Downloads08
What's in the box03
  • XSW IEM EK Stereo Receiver
  • IE 4 In-ear headphones
  • 2 AA batteries
