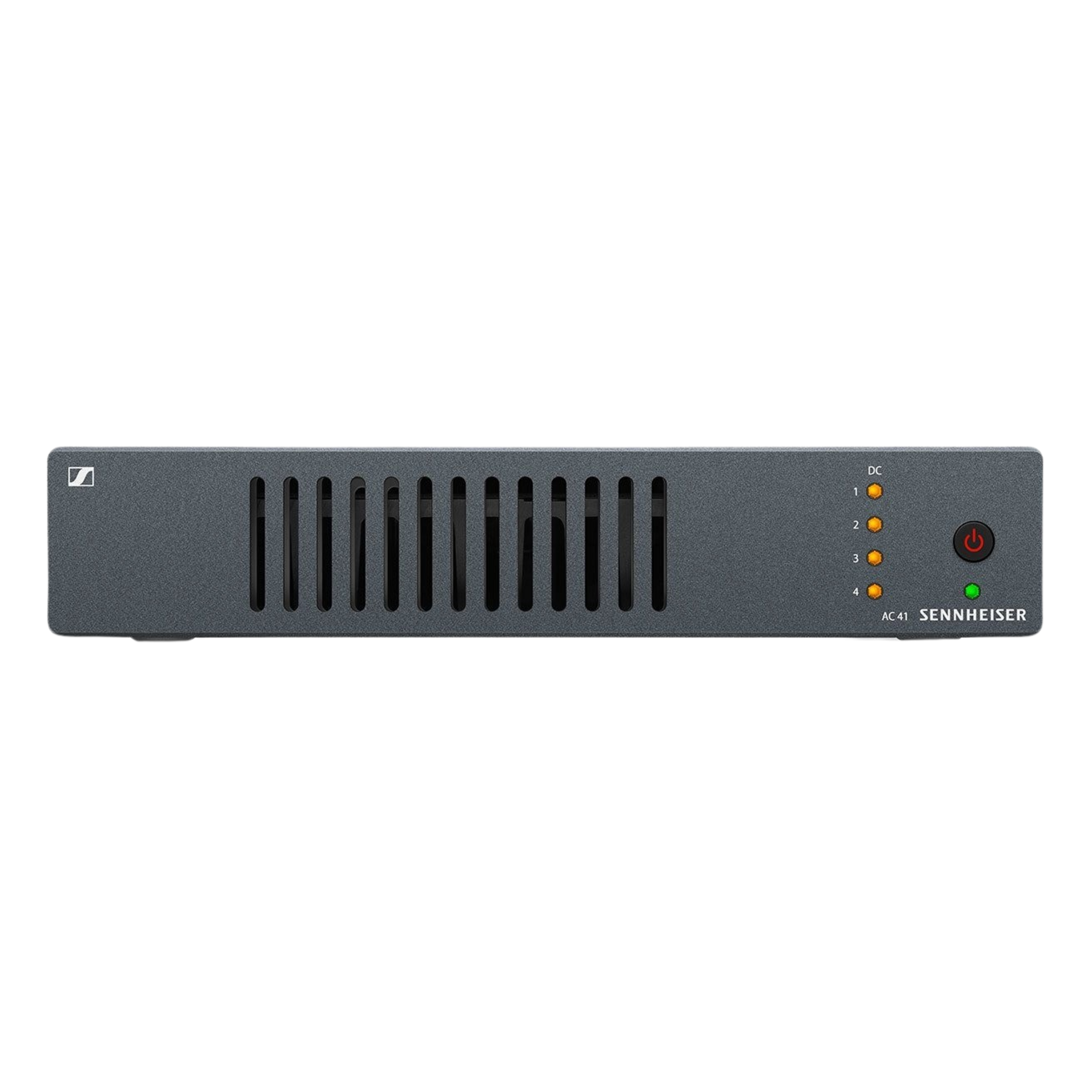

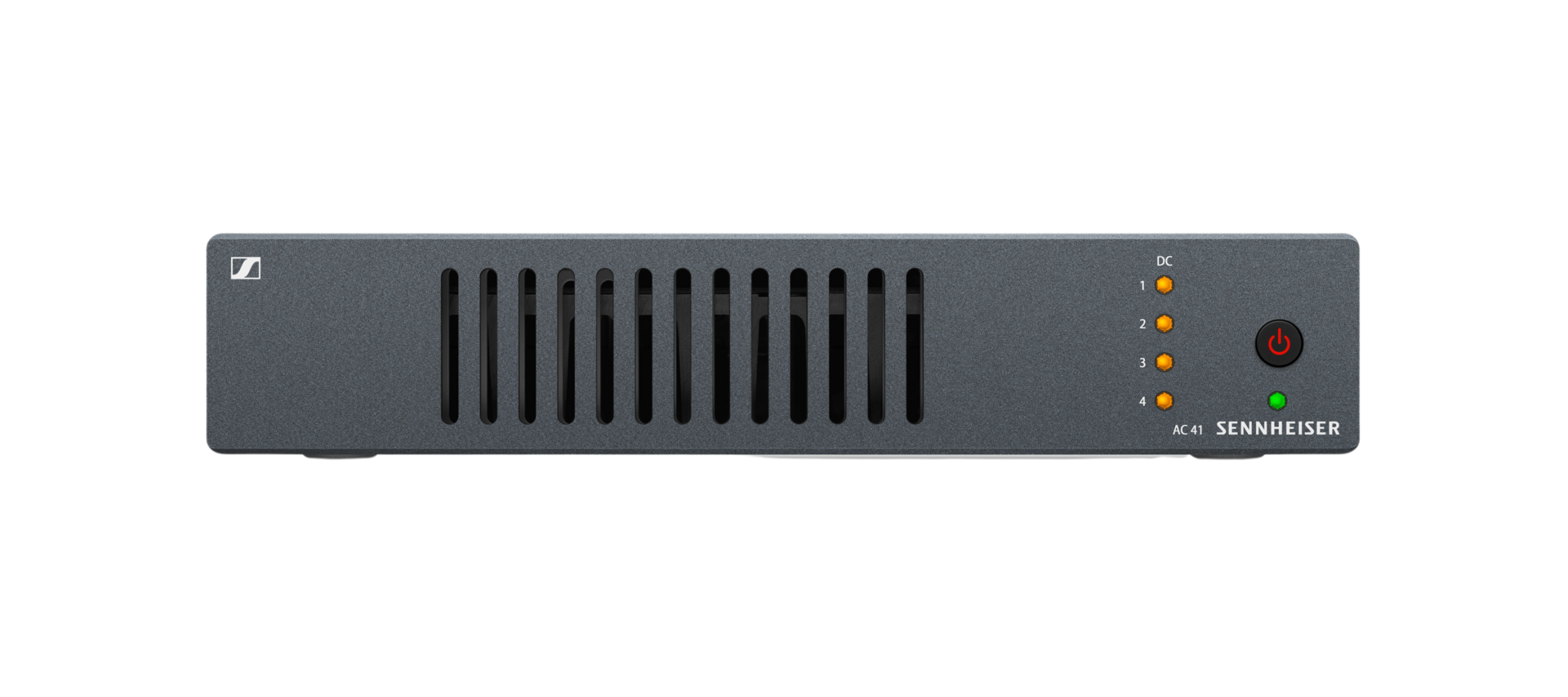

  • evolution_wireless_G4_product_shot_cutout_AC_41_front_viewChange to image slide 0

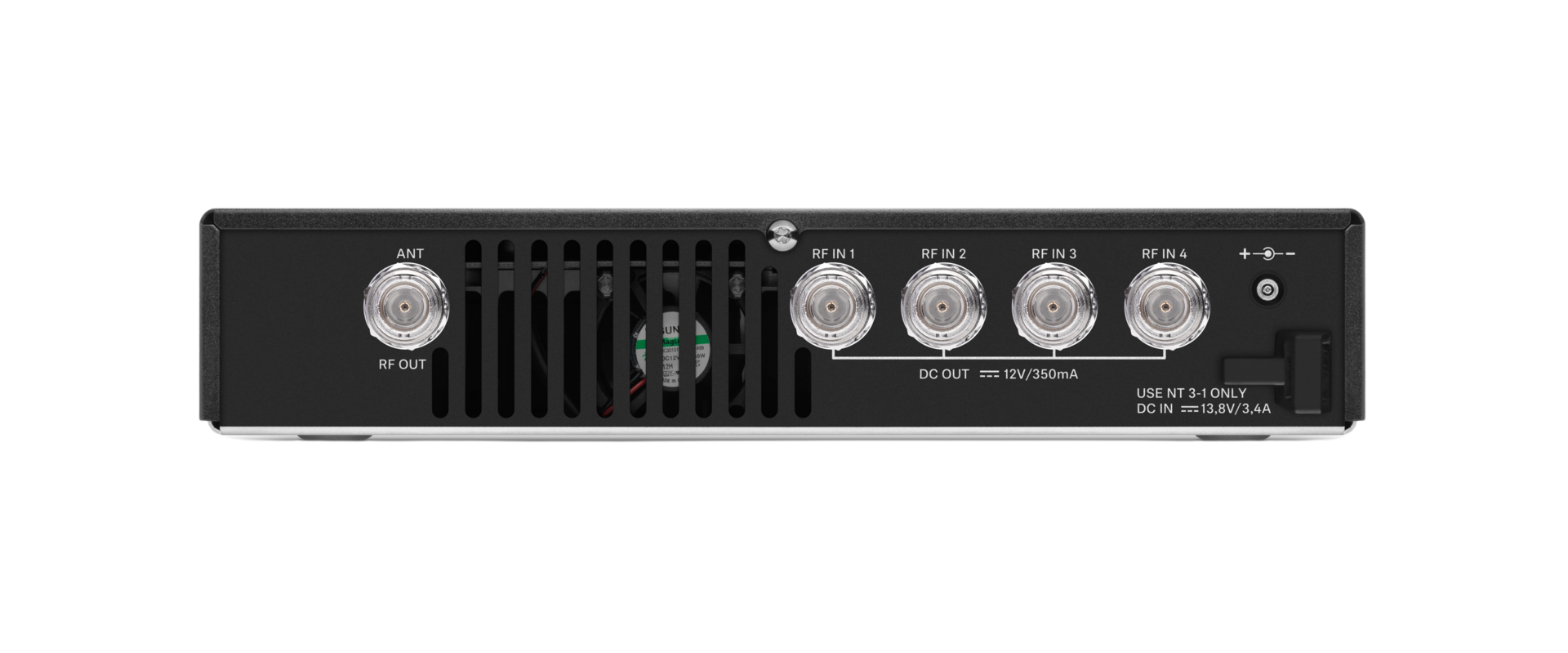

  • evolution_wireless_G4_product_shot_cutout_AC_41_back_viewChange to image slide 1
Homechevron-right...chevron-rightProductoschevron-rightWireless systemschevron-rightAC 41-EU

AC 41-EU

Núm. de artículo 508243

Active antenna combiner for evolution wireless G4 systems.

Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.
Desplazarse a
Desplazarse a

Datos principales

  • Peso (g)1974

Especificaciones técnicas

Dimensions
  • Altura (mm)
    80
  • Longitud (mm)
    345
  • Peso (g)
    1974
  • Anchura (mm)
    215
  • Product height
    80
  • Product weight (g)
    1974
  • Product width
    215

Descargas07

  • Outline dimensions AC 41 (DXF)
    .DXF
    ·
    6.81 MB
    Descargar
  • Outline dimensions AC 41 (PDF)
    .PDF
    ·
    189.11 KB
    Descargar
  • EU Declaration of Conformity ew G4 accessories
    .PDF
    ·
    560.99 KB
    Descargar
  • Quick Guide AC 41
    .PDF
    ·
    1.1 MB
    Descargar
  • Safety Instructions AC 41 & ASA 214
    .PDF
    ·
    635.55 KB
    Descargar
  • Produktdatenblatt AC 41
    .PDF
    ·
    278.56 KB
    Descargar
  • Product Specification AC 41
    .PDF
    ·
    278.59 KB
    Descargar
