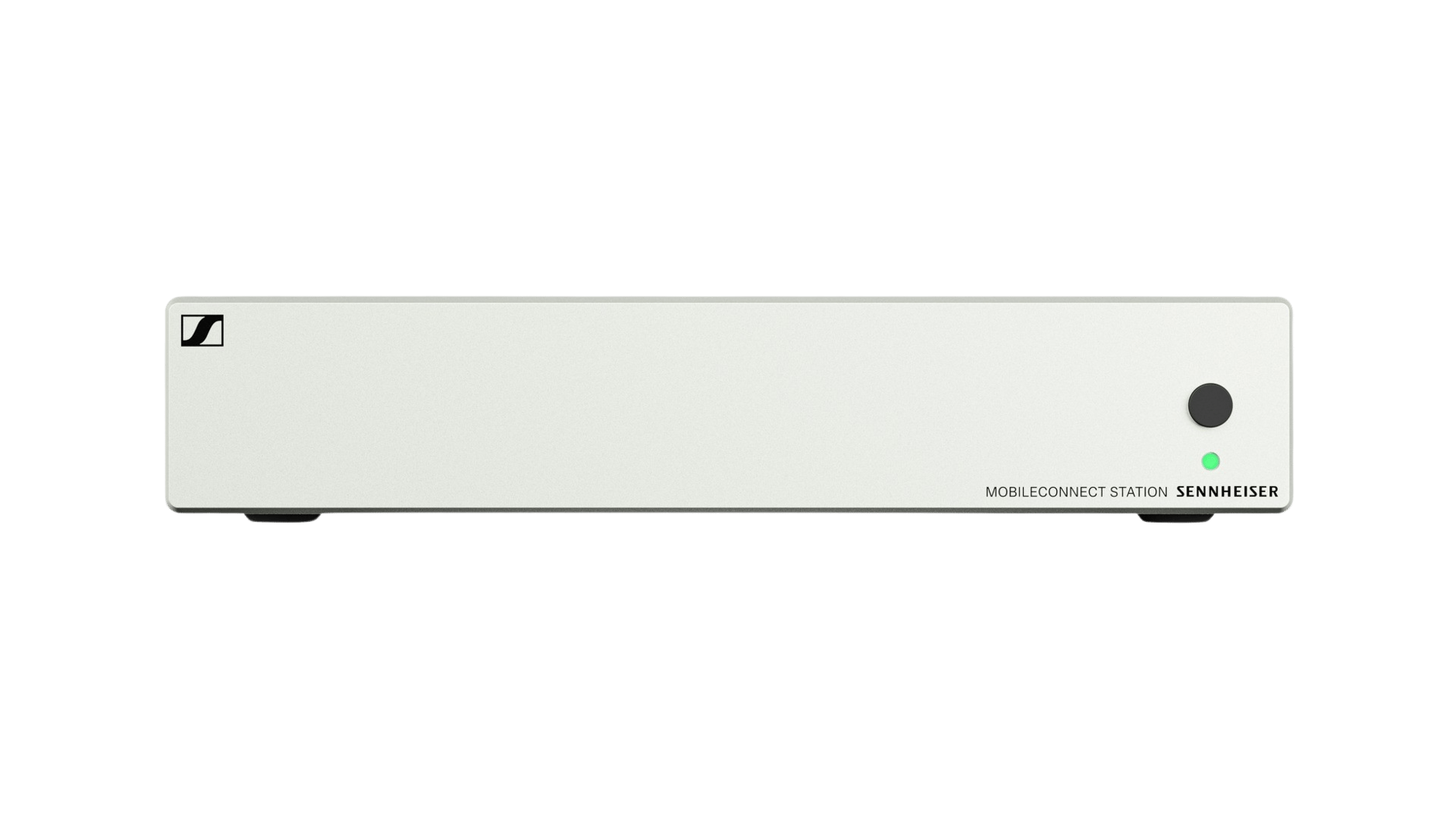

MobileConnect Station

货号 508895

产品特点11

  • 通过 Dante 数字音频,各站可横跨网络,消除了近距离安装的要求
  • 每个站提供两个辅助监听频道,或一个双向频道(辅助监听和 Audience Mic)
  • 单播音频流延迟低至 25 ms,具体取决于网络和用户设备 *
  • 每个站支持多达 100 个客户端
  • 提供两种集成模式
  • 独立模式 (Standalone Mode):使用单个站进行单独安装
  • 管理器模式 (Manager Mode):通过多个站实现更大、更高级的安装
  • 音频流可采用单声道或立体声运行
  • 通过以太网供电
  • 兼容 Dante 和 XLR
  • 通过 Crestron、Extron、QSC 插件或使用 MobileConnect API 的其他系统连接到第三方用户控制系统 *平均值为 40-60 ms。

主要参数

  • 重量 (g)approx. 970 g
  • 音频输入端- 2x 3-pin sockets (suitable for XLR-3-F)
  • 时延 (ms)40-60 ms (Depending on network infrastructure and mobile device)
  • 功耗 (Amp)Max. 10 W
  • 信噪比101 dB (A)

技术参数

Product
  • 时延 (ms)
    40-60 ms (Depending on network infrastructure and mobile device)
Frequency Specifications
  • 频率特性
    40 Hz - 20 kHz
  • 音频频率特性
    40 Hz to 20 kHz
Acoustic Properties
  • 采样率
    48 kHz
  • 信噪比
    101 dB (A)
Inputs/Outputs
  • 音频输入端
    - 2x 3-pin sockets (suitable for XLR-3-F)
Battery & Power
  • 包含电池
    N
  • 功耗 (Amp)
    Max. 10 W
Electrical Properties
  • 输入阻抗
    10 kΩ
Dimensions
  • 尺寸
    ½ 19" housing approx. 212 x 168 x 43 mm (8.4" x 6.6" x 1.7")
  • 高度 (mm)
    43
  • 长度 (mm)
    212
  • 重量 (g)
    approx. 970 g
  • 宽度 (mm)
    168
  • 产品高度
    43
  • 产品长度
    212
  • 产品重量 (g)
    970
  • 产品宽度
    168

下载25

MobileConnect Station
.PDF
270.02 KB
MobileConnect Station
.PDF
269.07 KB
MobileConnect Station
.PDF
269.97 KB
MobileConnect Station
.PDF
271.45 KB
MobileConnect Station
.PDF
257.24 KB
MobileConnect Station
.PDF
9.1 MB
MobileConnect Station
.PDF
9.15 MB
MobileConnect Station
.PDF
9.17 MB
MobileConnect Station
.PDF
9.18 MB
MobileConnect Station
.PDF
2.95 MB
MobileConnect Station
.PDF
2.95 MB
MobileConnect Station
.PDF
2.84 MB
MobileConnect Station
.PDF
118.95 KB
MobileConnect Station
.PDF
188.23 KB
MobileConnect Station
.PDF
259.9 KB
MobileConnect Station
.PDF
108.46 KB
MobileConnect Station
.PDF
1.6 MB
MobileConnect Station
.PDF
118.31 KB
MobileConnect Station
.PDF
181.65 KB
MobileConnect Station
.PDF
115.05 KB
MobileConnect Station
.PDF
119.26 KB
MobileConnect Station
.PDF
106.9 KB
MobileConnect Station
.PDF
187.26 KB
MobileConnect Station
.PDF
114.39 KB
MobileConnect Station
.PDF
1.57 MB

装箱内容04

  • Sennheiser MobileConnect 工作站
  • 機架腳柱
  • 快速指南
  • 安全指南
