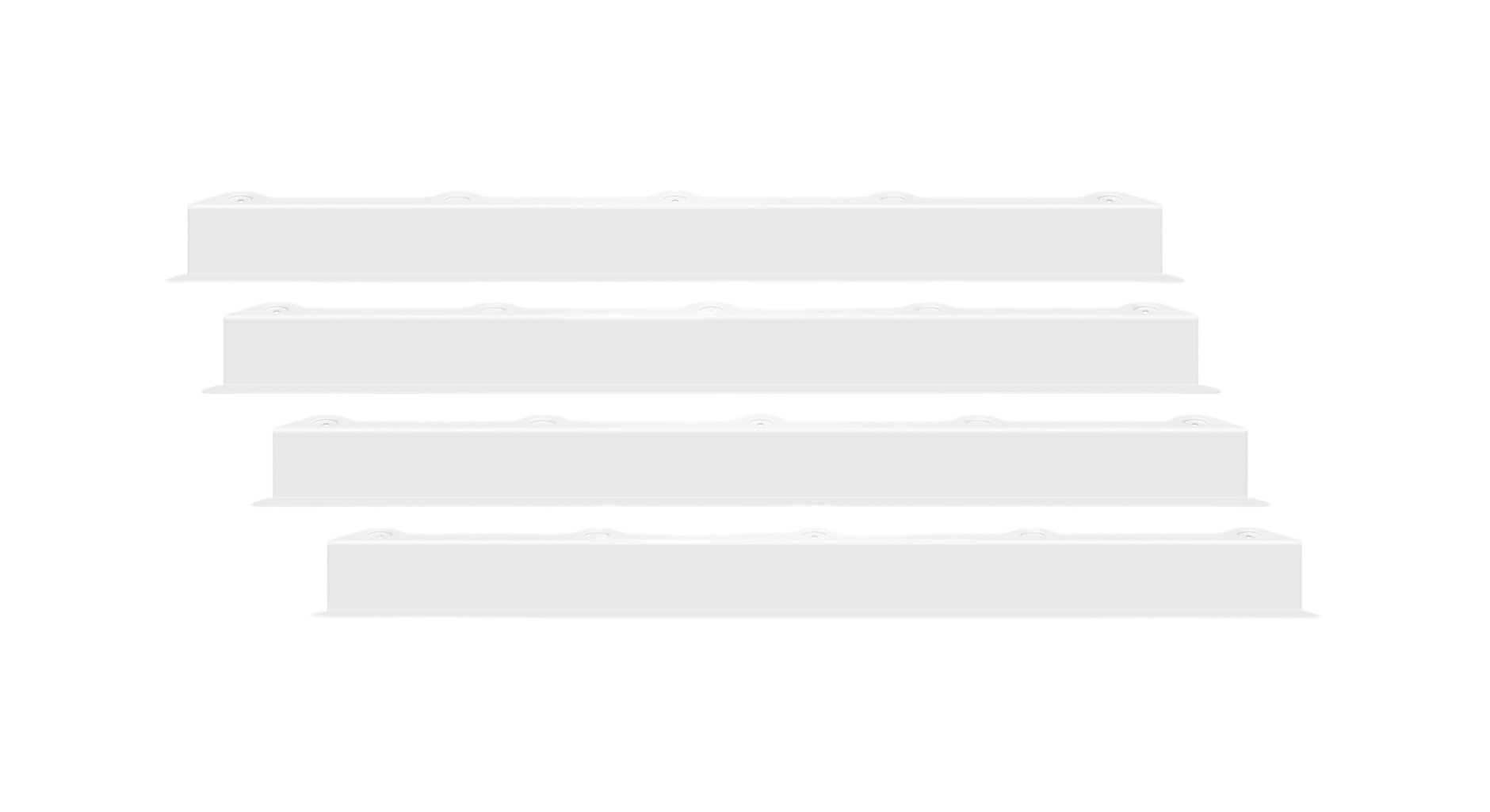

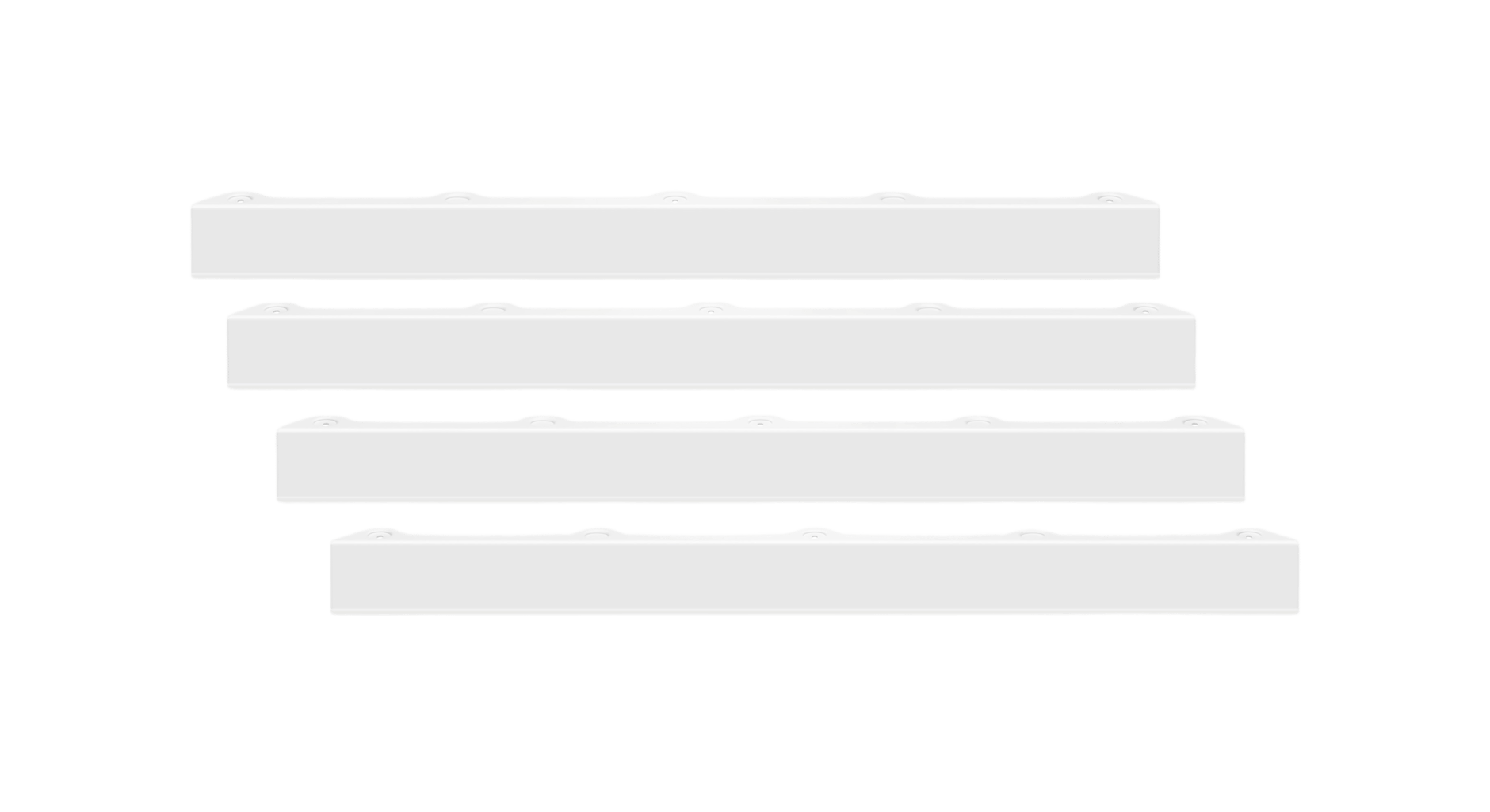

SL CM EB 625

货号 508290
The SL CM EB 625 extension brackets (4 pcs) shall be used when the TeamConnect Ceiling Mic 2 is installed flush-mounted in a 2.05 feet ceiling grid. It extends the housing size from 590mm (1.94ft) to 617mm (2.02ft)
滚动到

主要参数

  • 重量 (g)1996

技术参数

Battery & Power
  • Battery included
    N
Dimensions
  • 高度 (mm)
    84
  • 长度 (mm)
    639
  • 重量 (g)
    1996
  • 宽度 (mm)
    118
  • Product height
    84
  • Product length
    639
  • Product weight (g)
    1996
  • Product width
    118

下载22

chevron-up
  • 安装指南 / 使用说明书 TeamConnect Ceiling 2 (PDF)
    .PDF
    ·
    4.89 MB
    下载
  • Mounting and operating instructions TeamConnect Ceiling 2 (PDF)
    .PDF
    ·
    4.98 MB
    下载
  • 3D model SL CM EB 625 (STP)
    .STP
    ·
    241.83 KB
    下载
  • Outline dimensions SL CM EB 625 (DWG)
    .DWG
    ·
    752.02 KB
    下载
  • Outline dimensions SL CM EB 625 (DXF)
    .DXF
    ·
    2.62 MB
    下载
  • Outline dimensions SL CM EB 625 (PDF)
    .PDF
    ·
    83.73 KB
    下载
