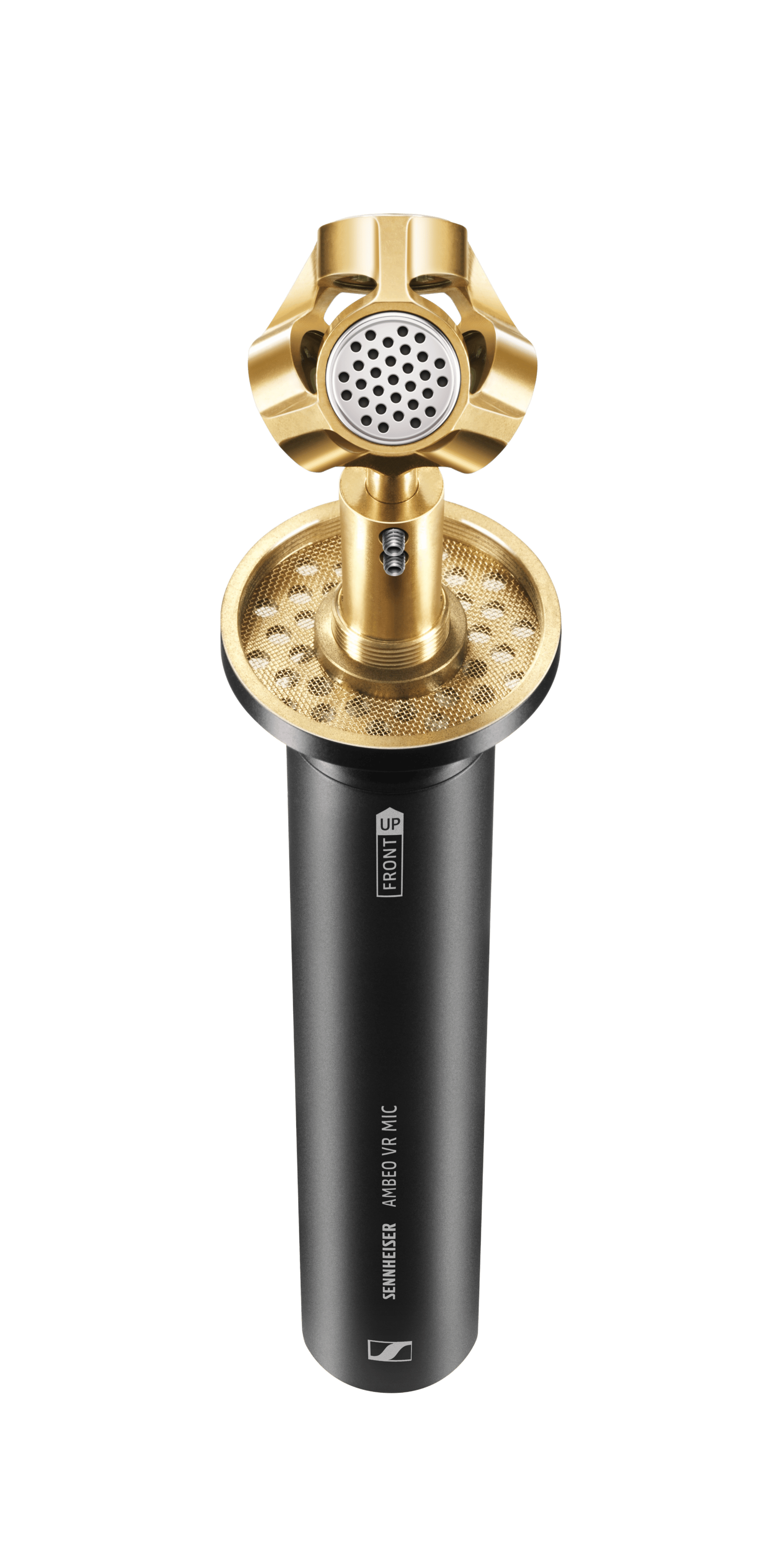

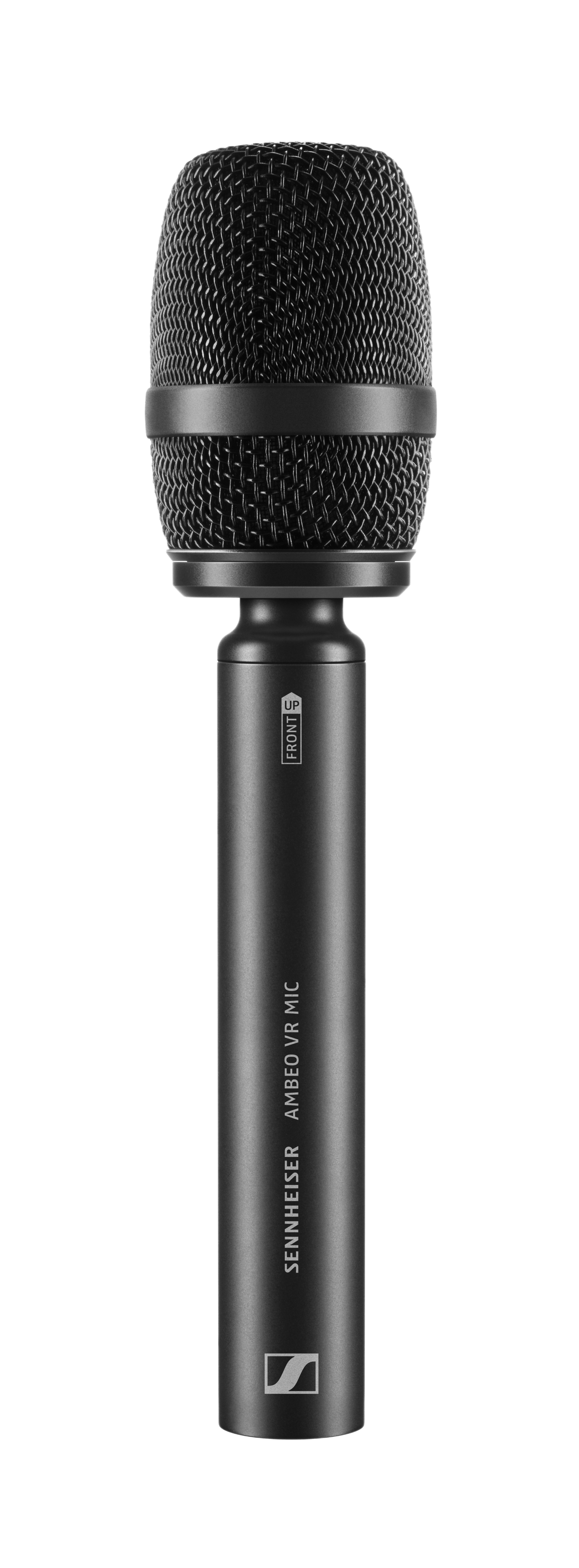

AMBEO VR Mic

货号 507195

Features06

  • Captures immersive spatial audio – ideal for capturing audio used in VR<br>
  • 4 matched KE 14 cardioid capsules in tetrahedral arrangement<br>
  • Rugged &amp; portable for various locations<br>
  • Records with Ambisonics technology<br>
  • Includes proprietary A-B converter in VST and AAX plugins<br>
  • Comes with cables, suspension mount &amp; windshield<br>

主要参数

  • 重量 (g)1.060 g
  • 最大声压级130 dB(A) for 1 kHz
  • 极性特征图心轴式
  • 灵敏度31 mV/Pa (-30 dBV)

技术参数

Product
  • 极性特征图
    心轴式
  • 转换器原理
    Pre-polarized condenser microphone
Frequency Specifications
  • 频率特性
    20 Hz to 20 kHz
  • 音频频率特性
    20 Hz to 20 kHz
Acoustic Properties
  • 等效噪音级 (db)
    A-weighted 18 dB(A), CCIR-weighted 27 dB CCIR
  • 最大声压级
    130 dB(A) for 1 kHz
  • Pick-up pattern
    4x cardioid, in A-format arrangement (1: front-left-up [FLU], 2: front-right-down [FRD], 3: back-left-down [BLD], 4: back-right-up [BRU])
Connectivity
  • 接口
    有线
Ambient Conditions
  • 运行时的相对湿度 (≤ %)
    Max 90% at 40 °C
  • 工作温度 (C)
    -10 °C to 55 °C (14 °F to 131 °F)
Battery & Power
  • Battery included
    N
Electrical Properties
  • 灵敏度
    31 mV/Pa (-30 dBV)
  • 标称阻抗
    Approx. 200 Ω
  • 最小端接阻抗
    1000 Ω
Dimensions
  • 尺寸
    215 x 49/25 mm (L x D)
  • 高度 (mm)
    73
  • 长度 (mm)
    405
  • 重量 (g)
    1.060 g
  • 宽度 (mm)
    350
  • Product height
    25
  • Product length
    215
  • Product weight (g)
    1.06
  • Product width
    49

下载12

chevron-up
  • Safety instructions AMBEOVR MIC
    .PDF
    ·
    397.55 KB
    下载
  • Quick Guide VR Mic
    .PDF
    ·
    1.24 MB
    下载
  • KT12_wiring
    IMAGE/JPEG
    ·
    81.8 KB
    下载
  • EU_DoC_VR-MIC
    .PDF
    ·
    680.45 KB
    下载
  • AMBEO A-B converter (v1.2.0) for Mac OS X
    .ZIP
    ·
    3.98 MB
  • AMBEO A-B converter (v1.2.0) for Windows
    .ZIP
    ·
    29.43 MB
  • AMBEO A-B converter (v1.2.0) for Mac OS X
    .ZIP
    ·
    3.98 MB
  • AMBEO A-B converter (v1.2.0) for Windows
    .ZIP
    ·
    29.42 MB
  • AMBEO A-B converter (v1.2.0) for Mac OS X
    .ZIP
    ·
    3.97 MB
  • AMBEO A-B converter (v1.2.0) for Windows
    .ZIP
    ·
    29.42 MB
  • AMBEO A-B converter (v1.2.0) for Mac OS X
    .ZIP
    ·
    3.98 MB
  • AMBEO A-B converter (v1.2.0) for Windows
    .ZIP
    ·
    3.35 MB

装箱内容06

  • AMBEO VR Mic话筒
  • 转接线,话筒端多芯插头转为4根具有XLR 3针脚卡侬接口的平衡式线缆
  • 延长线缆,1.5米,DIN12F到DIN12M
  • Rycote品牌防震支架
  • 海棉防风罩
  • 专属A-B格式编码软件,可用于VST和AAX插件(苹果Mac OS X和PC Windows系统)
