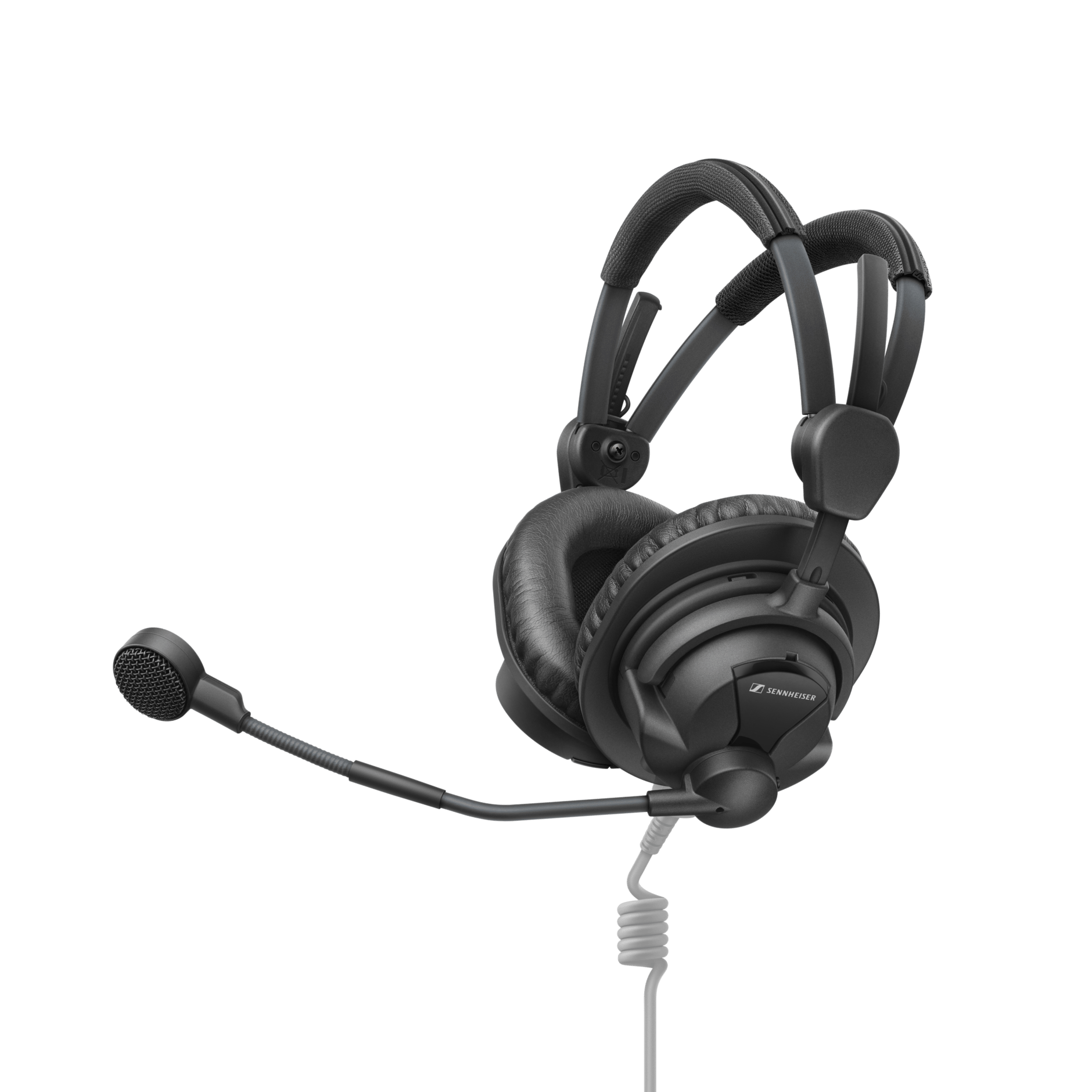

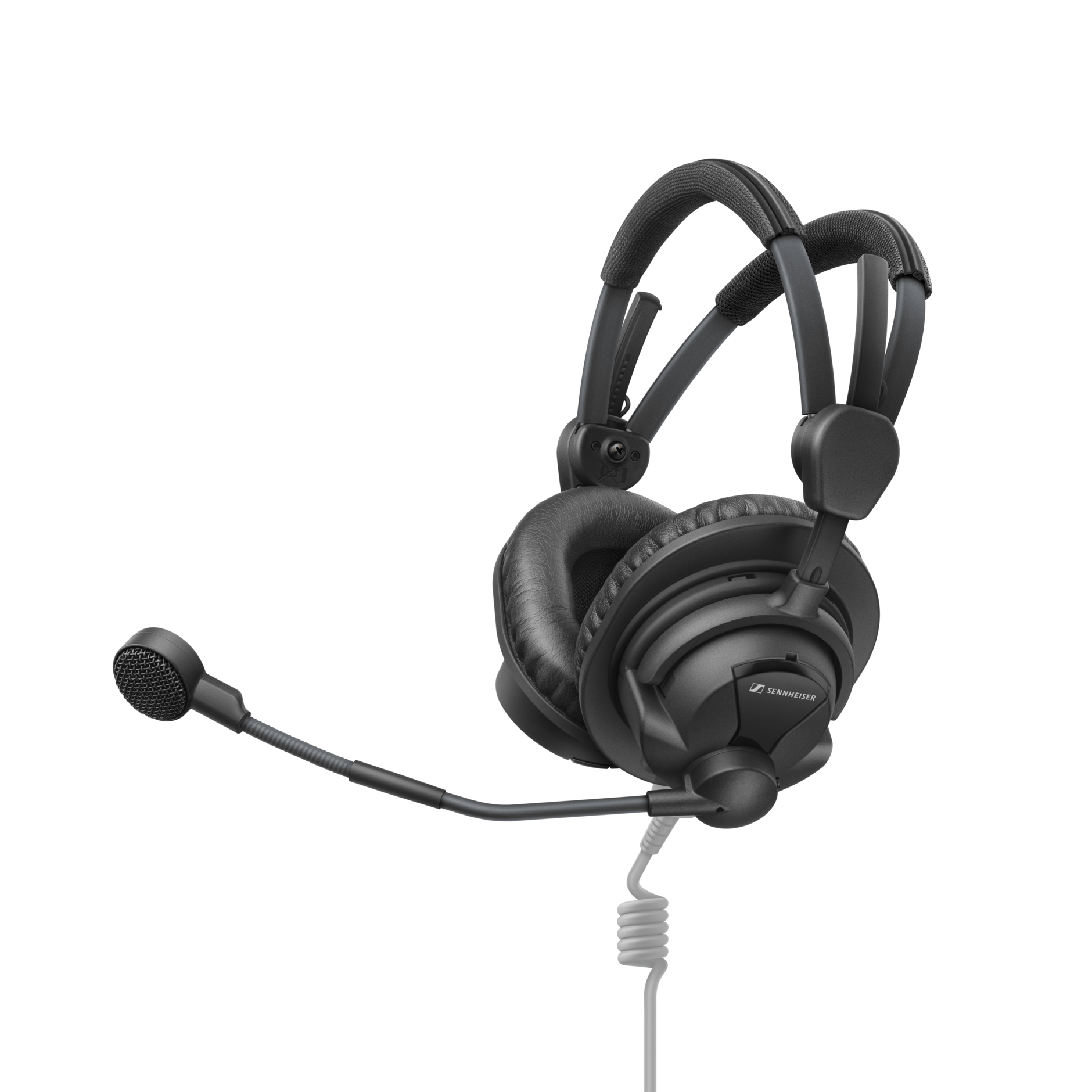

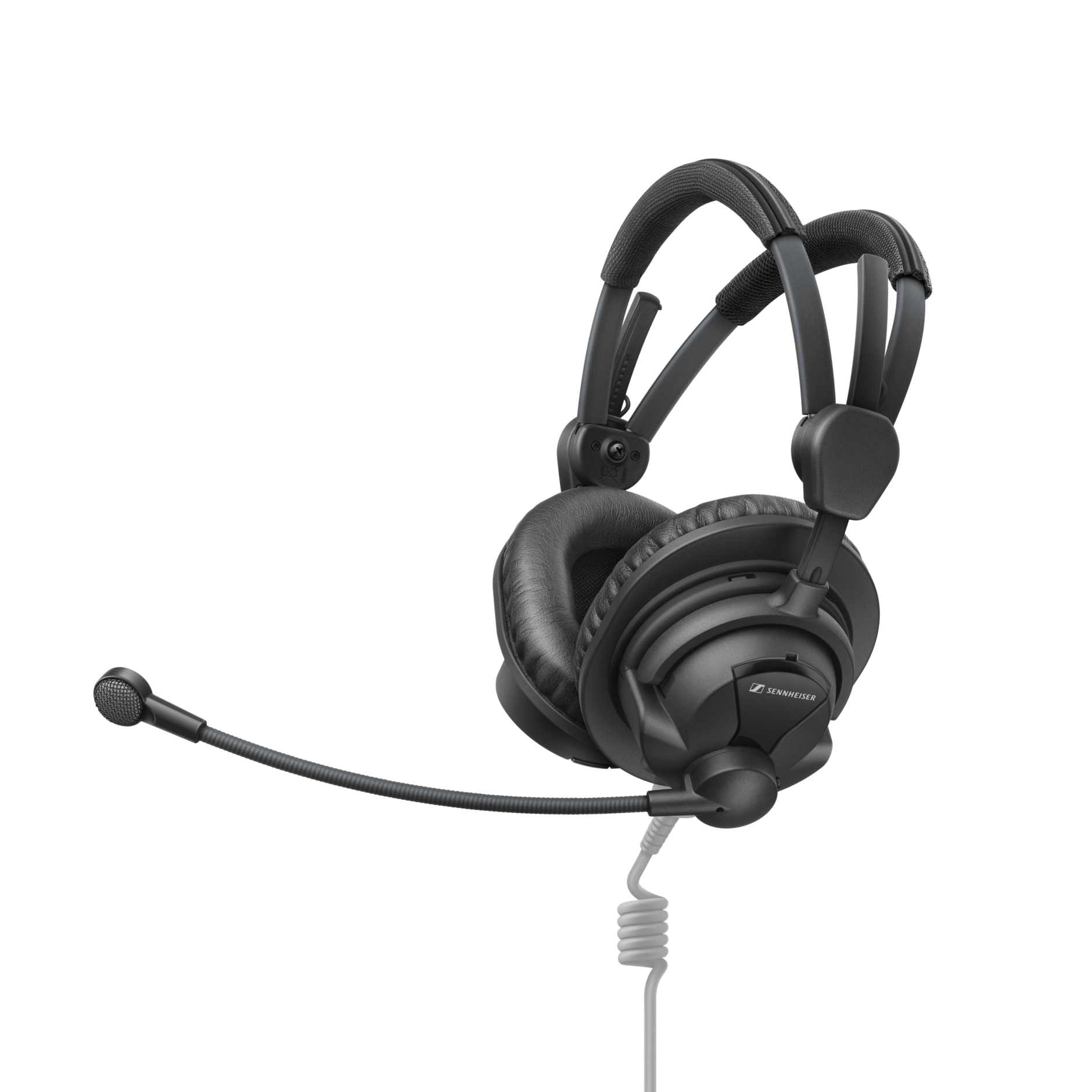

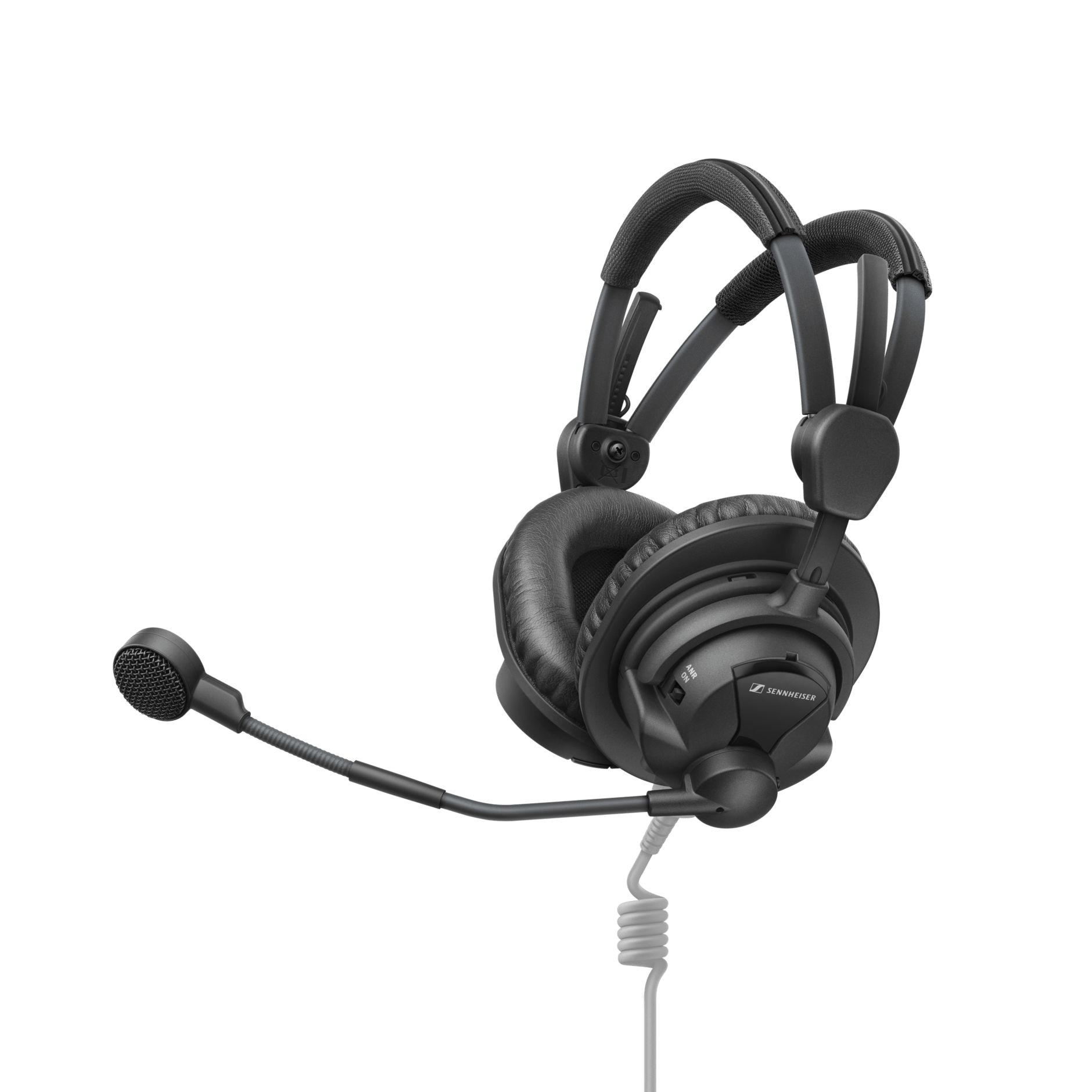

HMD 27

货号 700322

Features07

  • Dynamic microphone delivers reliable broadcast quality, even in noisy environments
  • Premium comfort with lightweight design and split headband to eliminate pressure points
  • Accurate sound reproduction for demanding professional radio and TV applications
  • Switchable ActiveGard© limiting technology for protection of noise peaks 110 dB
  • Modular design for using different cables and boom arms
  • Flip-away headphone for single-sided listening
  • Switchable microphone boom for left- or right-side configuration

主要参数

  • 重量 (g)approx. 240 g (without cable)
  • 阻抗64 Ω (Headphones) | 300 Ω (Microphone)
  • 最大声压级125 dB SPL (ActiveGard off)

技术参数

Product
  • 转换器原理
    dynamic, closed (Headphone) | dynamic (Microphone)
  • 非线性谐波失真系数
    < 0.1% @ 1 kHz, 100 dB SPL
  • 夹持方式
    耳罩式
Frequency Specifications
  • 频率特性
    4 Hz – 21,000 Hz (Headphone) | 40 Hz - 18,000 Hz (Microphone)
  • 音频频率特性
    4 Hz – 21,000 Hz (Headphone) | 40 Hz - 18,000 Hz (Microphone)
Acoustic Properties
  • ActiveGard®
    95 dB SPL/110 dB SPL @1 kHz
  • 最大声压级
    125 dB SPL (ActiveGard off)
Connectivity
  • 接口
    有线
Ambient Conditions
  • Temperature range
    -15 °C to +55 °C (Operation) | -40 °C to +70 °C (Storage)
  • 工作温度 (C)
    -15 °C to +55 °C (Operation) | -40 °C to +70 °C (Storage)
Battery & Power
  • Battery included
    N
Electrical Properties
  • 阻抗
    64 Ω (Headphones) | 300 Ω (Microphone)
  • 输出电压
    0.5 mV/Pa @ 1 kHz
Dimensions
  • 重量 (g)
    approx. 240 g (without cable)

下载02

chevron-up
  • HMD_HMDC_HME 27_Safety Guide_03_2024
    .PDF
    ·
    494.89 KB
    下载
  • HME_D_DC 27_Quick Guide_03_2024
    .PDF
    ·
    2.41 MB
    下载

装箱内容05

  • Quick guide
  • Safety guide
  • Drawstring pouch
  • Large headband padding
  • Foam windshield
