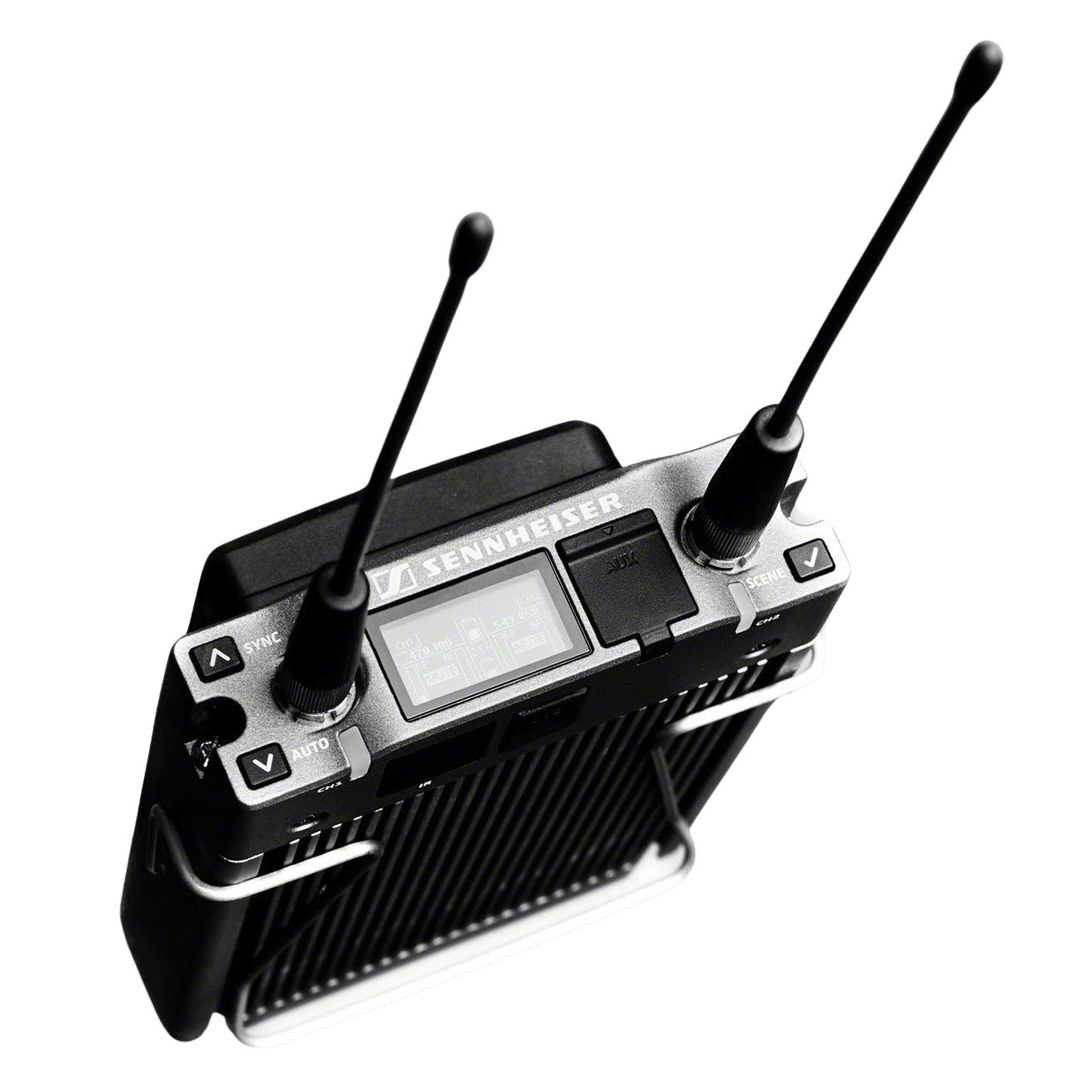

EK 6042

货号 506210

Features07

  • 双通道真分集接收接收机 184 MHz射频带宽 与HDX, HiDyn+以及Digital 9000系列相兼容 用于索尼和松下(通用插槽)的摄像机适配器 兼容SuperSlot™。 可选背板适配器与电池包(热备份) 自动配置与场景设置
  • 184 MHz 切换带宽
  • 兼容 HDX,HiDyn+ 和数字 9000
  • 用于 Sony® 和 Panasonic® (Unislot) 的摄像头适配器
  • 兼容 SuperSlot™
  • 可选背板适配器和电池组(热插拔)
  • 自动配置和场景设置

主要参数

  • 重量 (g)955
  • 音频输出5-pin mini-XLR-M, balanced / MAIN 1 and 2, digital: 0 dBFs, AES3, 48 kHz, 24 bit / MAIN1 and 2, analogue: -22 dBu to +8 dB (adjustable) / AUX 1 and 2, analogue: -22 dBu to +8 dBu (adjustable)
  • 时延 (ms)3.0 ms (AES3, digital modulation) / 1.5 ms (AES3, wideband FM)
  • 灵敏度< -90 dBm (digital modulation) / < -94 dBm (wideband FM) @ 52dB audio SNR

技术参数

Product
  • 时延 (ms)
    3.0 ms (AES3, digital modulation) / 1.5 ms (AES3, wideband FM)
  • 非线性谐波失真系数
    typ. 0.03% (digital modulation) / typ 0.2% (wideband FM)
Frequency Specifications
  • 频率特性
    40 to 20,000 Hz (+/- 3.0 dB)
  • 音频频率特性
    40 to 20,000 Hz (+/- 3.0 dB)
Inputs/Outputs
  • 音频输出
    5-pin mini-XLR-M, balanced / MAIN 1 and 2, digital: 0 dBFs, AES3, 48 kHz, 24 bit / MAIN1 and 2, analogue: -22 dBu to +8 dB (adjustable) / AUX 1 and 2, analogue: -22 dBu to +8 dBu (adjustable)
Electrical Properties
  • 灵敏度
    < -90 dBm (digital modulation) / < -94 dBm (wideband FM) @ 52dB audio SNR
Dimensions
  • 高度 (mm)
    350
  • 长度 (mm)
    135
  • 重量 (g)
    955
  • 宽度 (mm)
    66
  • Product height
    350
  • Product weight (g)
    955
  • Product width
    66

下载16

  • EU Declaration of conformity EK 6042
    .PDF
    ·
    569.62 KB
    下载
  • 使用说明书 - EK 6042 (PDF)
    .PDF
    ·
    1.97 MB
    下载
  • Instruction Manual - EK 6042 (PDF)
    .PDF
    ·
    1.83 MB
    下载
  • Safety Instructions & Manufacturer declarations EK 6042
    .PDF
    ·
    705.32 KB
    下载
  • EK 6042 Firmware Update - Release Notes
    .PDF
    ·
    119.08 KB
    下载
  • EK 6042 Firmware Update Version 1.5.1
    .ZIP
    ·
    2.21 MB

装箱内容04

  • 一台EK 6042
  • 两根天线
  • 一根USB线缆
  • 使用手册
