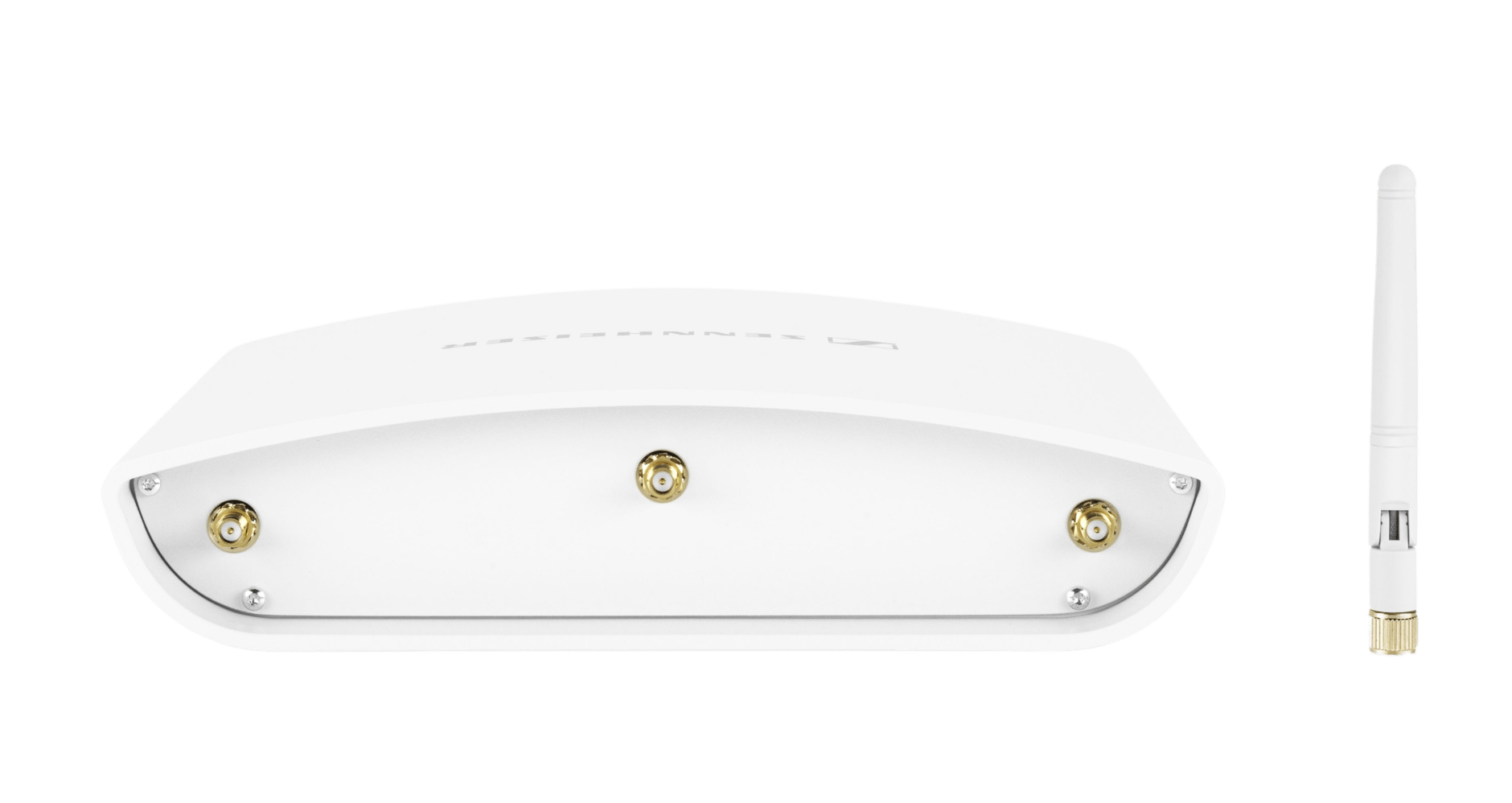

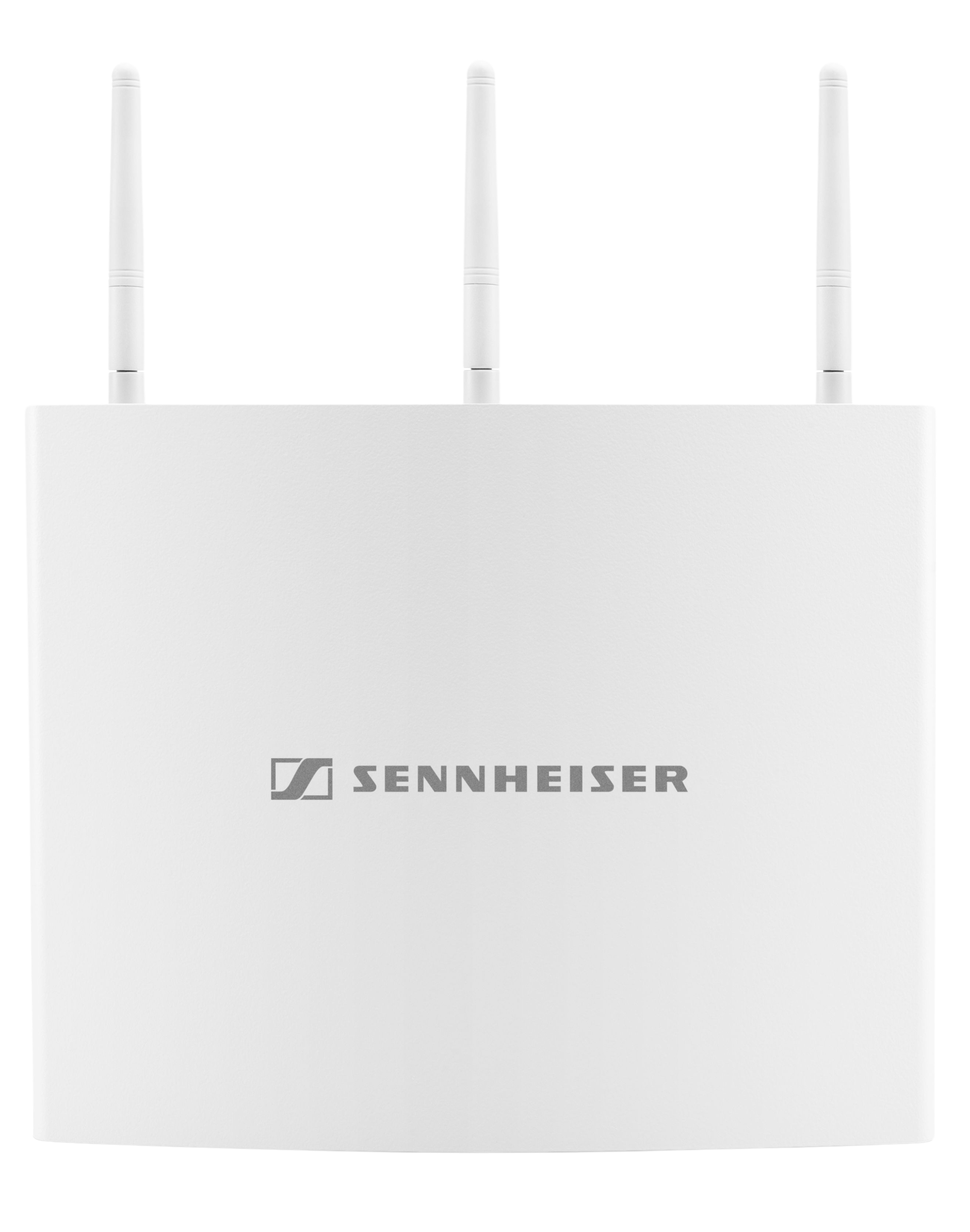

ADN-W AM

货号 505715

该产品已无法购买

View product archive

The ADN-W AM antenna module is designed to ensure reliable wireless bidirectional communication with the ADN-W D1 and C1 wireless conference units in both the 2.4 GHz and the 5 GHz frequency band.

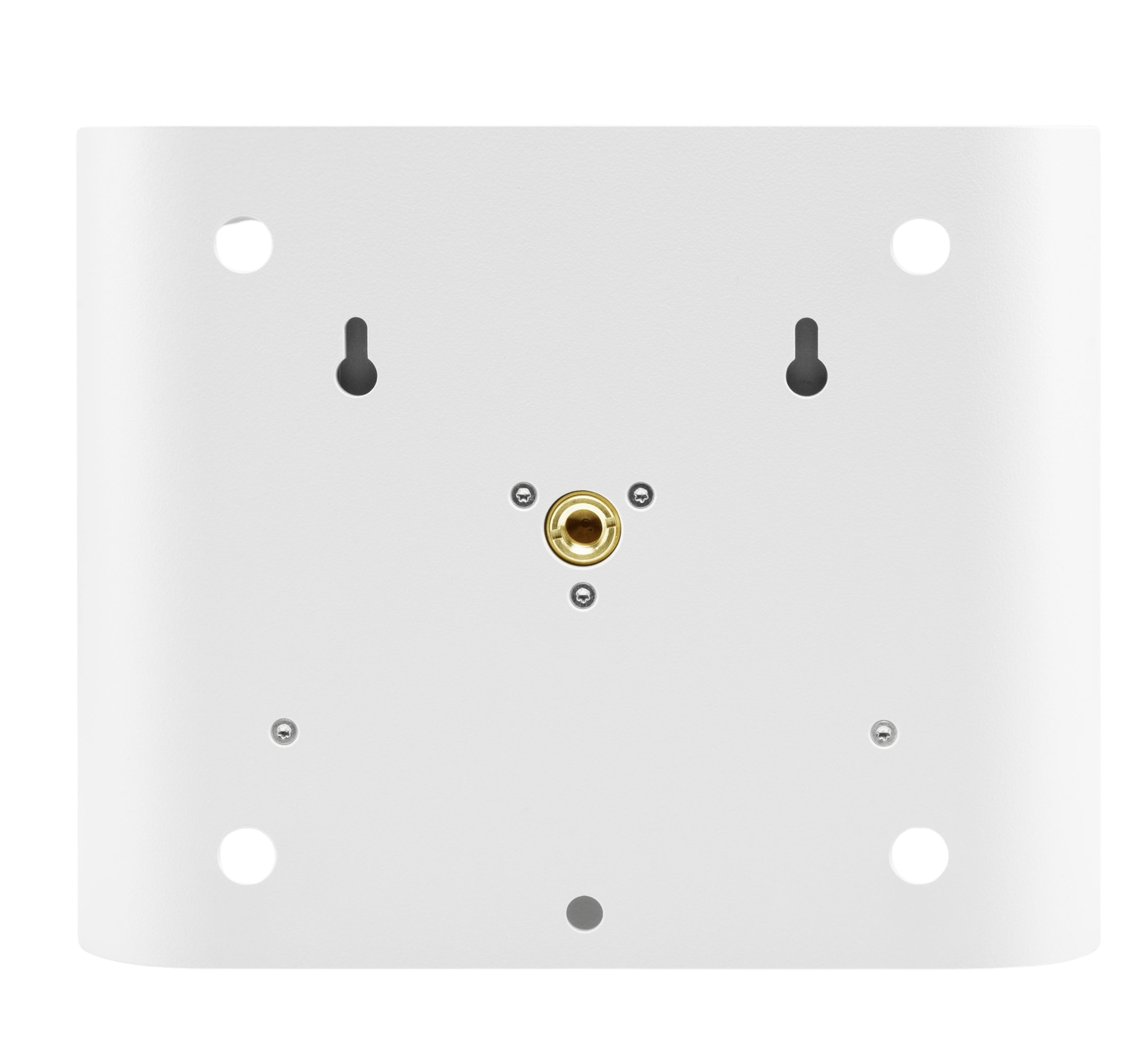

The ADN-W AM antenna module is designed to ensure reliable wireless bidirectional communication with the ADN-W D1 and C1 wireless conference units in both the 2.4 GHz and the 5 GHz frequency band. The antenna module easily connects to the ADN CU1 central unit via the ADN bus cable. The ADN-W AM features a built-in 5/8“ mounting thread (with a 3/8“ thread insert) that allows easy mounting on walls or ceilings.

产品特点04

  • Automatic frequency selection mode
  • Rugged metal housing

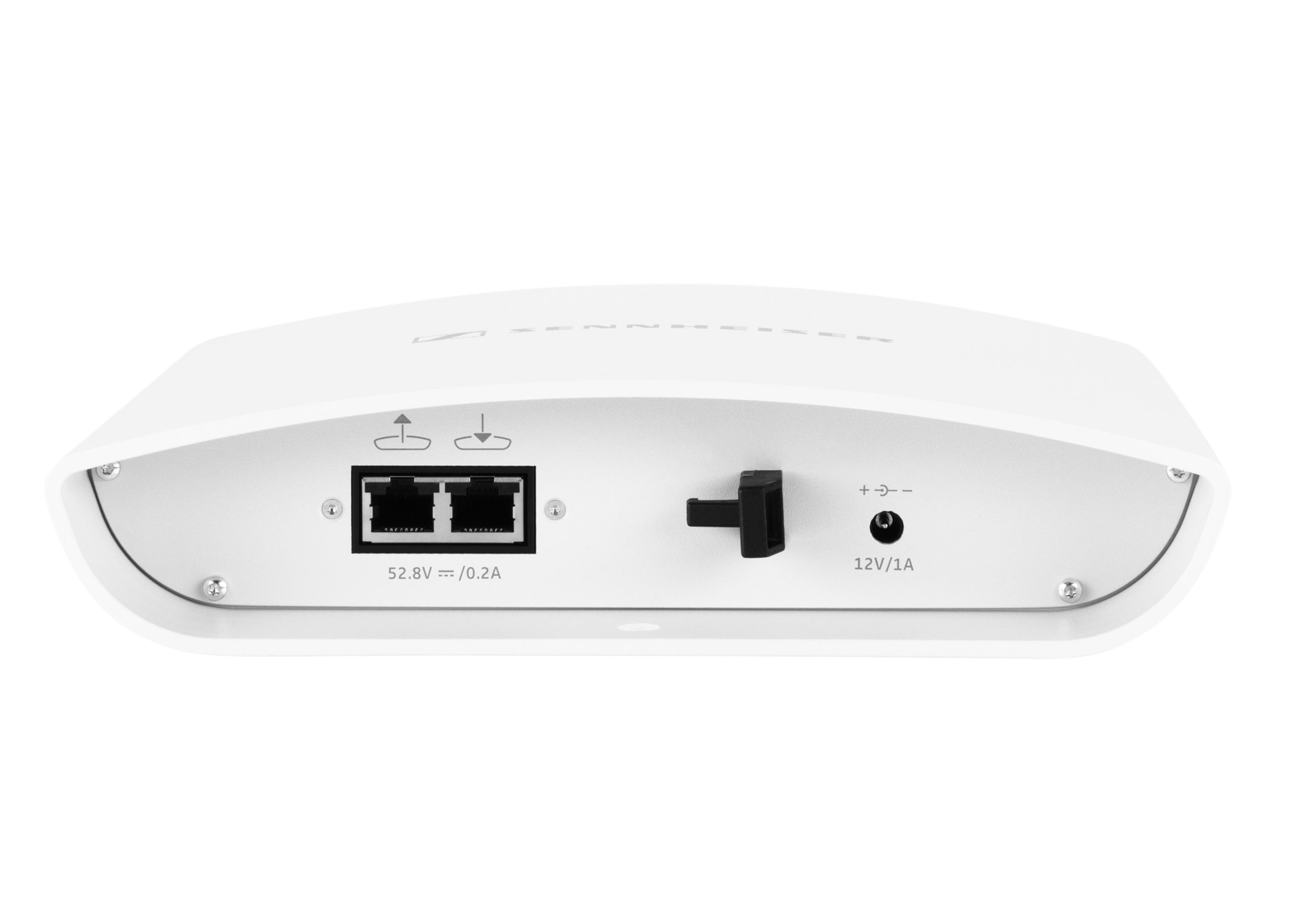

  • Powered via ADN bus or NT 12-50C DC power supply
  • AES 128-bit encryption

主要参数

  • 重量 (g)approx. 1660 g / 3.66lbs
  • 功耗 (Amp)6 W
  • 接口无线

技术参数

Connectivity
  • 接口
    无线
Ambient Conditions
  • 工作范围 (m)
    30 m / 100ft radius
  • 运行时的相对湿度 (≤ %)
    20 ... 95%
  • 工作温度 (C)
    5° … +45° C
Battery & Power
  • 包含电池
    N
  • 功耗 (Amp)
    6 W
Dimensions
  • 尺寸
    Width: 226 mm, Length: 58 mm, Height: 181 mm
  • 重量 (g)
    approx. 1660 g / 3.66lbs
  • 产品重量 (g)
    1660

下载19

ADN-W AM
.PDF
17.25 MB
下载
ADN-W AM
.PDF
18.64 MB
下载
ADN-W AM
.PDF
17.4 MB
下载
ADN-W AM
.PDF
17.27 MB
下载
ADN-W AM
.PDF
17.36 MB
下载
ADN-W AM
.PDF
17.13 MB
下载
ADN-W AM
.PDF
17.41 MB
下载
ADN-W AM
.PDF
17.43 MB
下载
ADN-W AM
.PDF
17.32 MB
下载
ADN-W AM
.PDF
4.86 MB
下载
ADN-W AM
.PDF
4.8 MB
下载
ADN-W AM
.PDF
4.62 MB
下载
ADN-W AM
.PDF
2.59 MB
下载
ADN-W AM
.PDF
4.56 MB
下载
ADN-W AM
.PDF
4.62 MB
下载
ADN-W AM
.PDF
4.62 MB
下载
ADN-W AM
.PDF
4.77 MB
下载
ADN-W AM
.PDF
201.01 KB
下载
ADN-W AM
.PDF
189.71 KB
下载

装箱内容03

  • ADN-W 天线模块
  • SDC CBL RJ45-5 系统电缆（长 5 米）
  • 快速指南

配件和备件01

Placeholder image
SDC CBL RJ45-50
