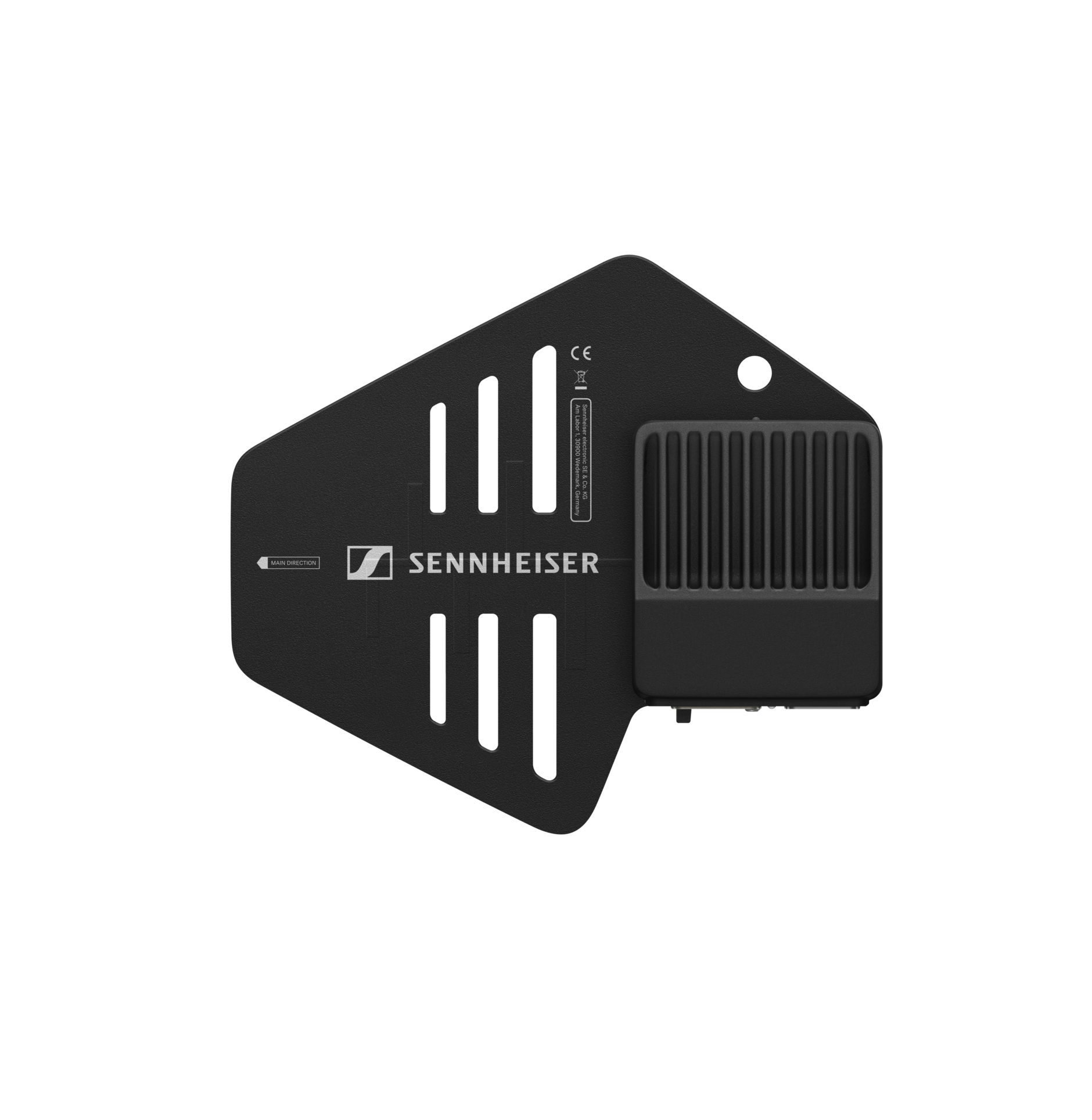

  • Spectera_DAD_1G4_Antenna_Product_Shot_Cutout_Front_ViewChange to image slide 0

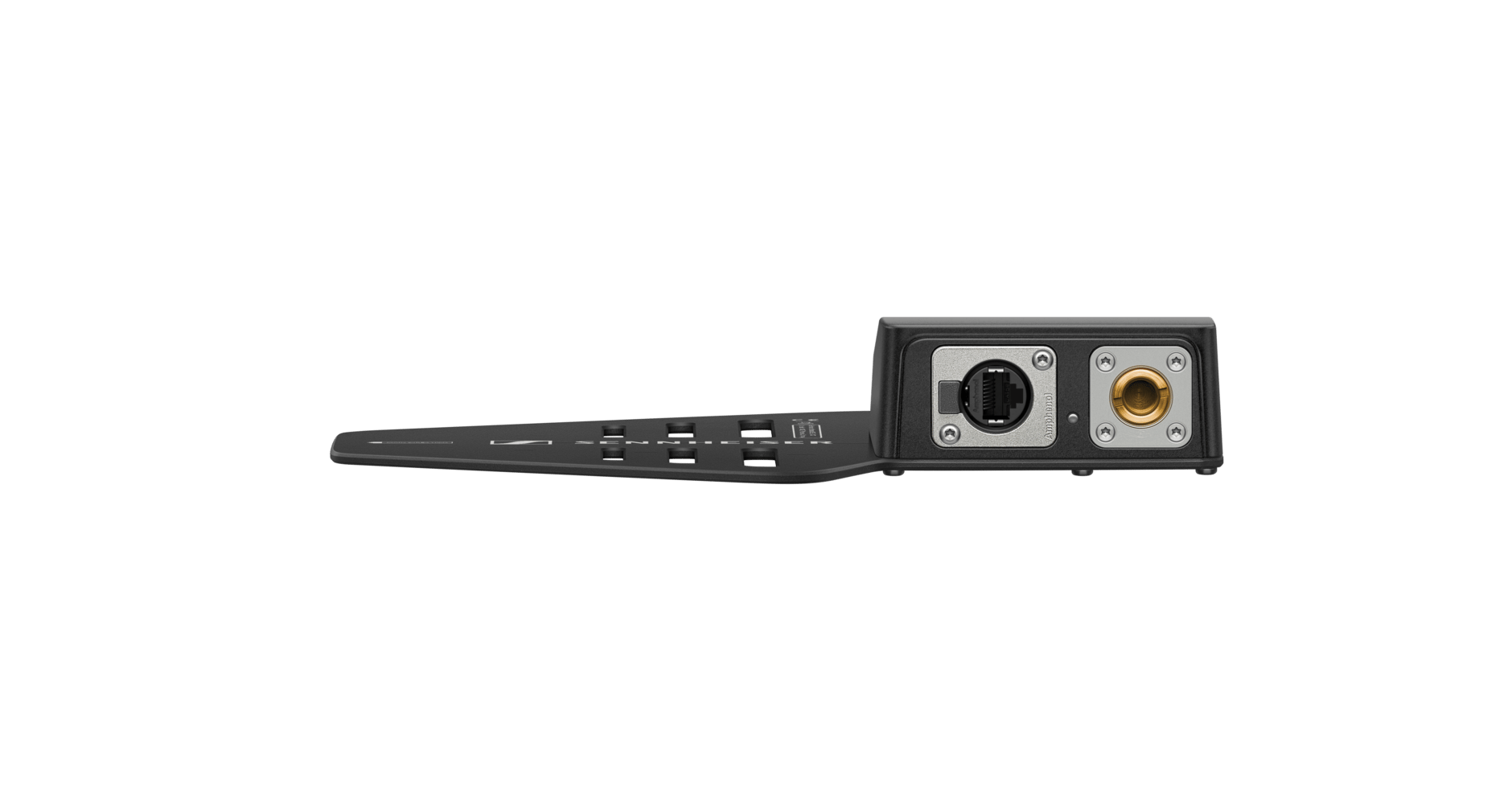

  • Spectera_DAD_1G4_Antenna_Product_Shot_Cutout_Back_ViewChange to image slide 1

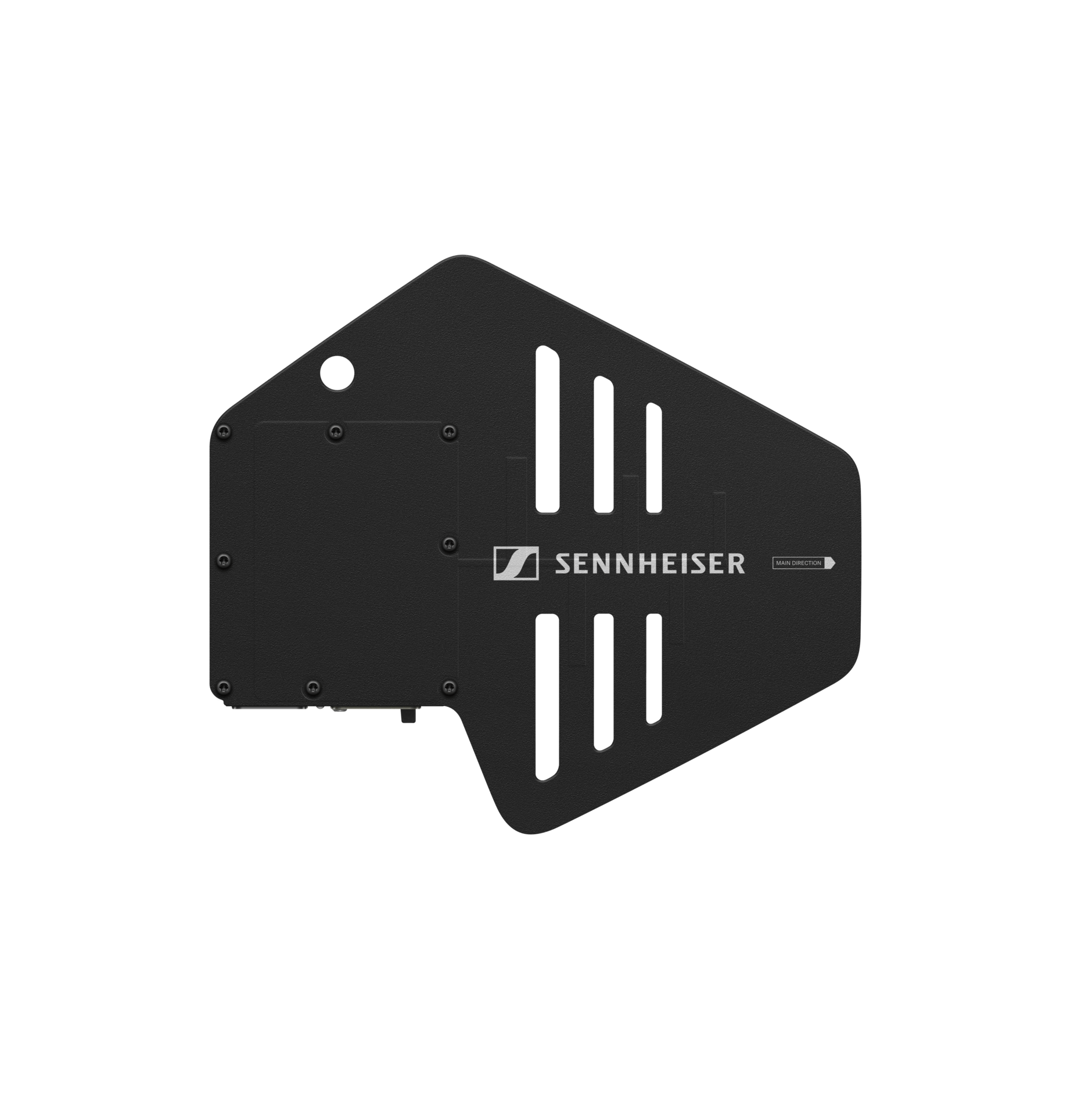

  • Spectera_DAD_1G4_Antenna_Product_Shot_Cutout_Special_Angle_Change to image slide 2

Spectera DAD Antenna (1G4)

货号 509170

The transceiving Spectera Digital Antenna Directional (DAD) manages IEM signals, mic/line signals and data simultaneously.

It provides continuous interference management and remote control, and is equipped with a rugged RJ45 connector, IP54 protection and PoE.

Variants include UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz).
滚动到

Features10

  • Transceiving antenna manages IEM signals, mic/line signals, and data simultaneously
  • Available variant: UHF (470 – 608 MHz and 630 – 698 MHz)
  • Integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
  • Directional antenna
  • Ruggedized RJ45 connector for standard network cable CAT 5e or higher (point to point)
  • Continuous interference management and remote control
  • IP54 protection
  • Fiber extension capabilities (supported converters in technical documentation)
  • Optional use as dedicated fast and high-quality scanning device
  • Powered over ethernet (standard POE)

主要参数

  • 功耗 (Amp)PoE class 2 (<6.5 W)

技术参数

Product
  • 颜色
    黑
  • 增益
    6.5 dB
  • 最小通道间距 (kHz)
    matches to used bandwidth mode
  • 高频灵敏度
    tbd per ALM
  • AMER保修期（年）
    2
Connectivity
  • 接口
    无线
  • 连接插头
    RJ45 1Gbps PoE
Ambient Conditions
  • Storage relative humidity
    25 - 95% (non-condensing)
  • Storage temperature range
    -25 °C - +80 °C (-13 °F - 176 °F)
  • 运行时的相对湿度 (≤ %)
    25 - 95% (non-condensing)
  • 工作温度 (C)
    -10 °C - +60 °C (14 °F - 140 °F)
Battery & Power
  • Battery included
    N
  • 功耗 (Amp)
    PoE class 2 (<6.5 W)
Electrical Properties
  • 传输功率 (mA)
    up to 100 mW countrywise limited
Technology
  • 加密
    AES 256 CTR Mode exp. >10k years
  • 传输方法
    Multicarrier, TDMA, TDD
Dimensions
  • Product height
    60
  • Product length
    400
  • Product weight (g)
    915
  • Product width
    330

下载14

chevron-up
  • SPECTERA DAD Spec Sheet (PT)
    .PDF
    ·
    312.91 KB
    下载
  • SPECTERA DAD Spec Sheet (DE)
    .PDF
    ·
    312.98 KB
    下载
  • SPECTERA DAD Spec Sheet (FR)
    .PDF
    ·
    313.23 KB
    下载
  • SPECTERA DAD Spec Sheet (EN)
    .PDF
    ·
    312.67 KB
    下载
  • SPECTERA DAD Spec Sheet (ES)
    .PDF
    ·
    312.92 KB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 1
    .PDF
    ·
    630.03 KB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 2
    .PDF
    ·
    930.67 KB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 3
    .PDF
    ·
    901.33 KB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 4
    .PDF
    ·
    673.41 KB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 5
    .PDF
    ·
    787.79 KB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 6
    .PDF
    ·
    1.2 MB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 7
    .PDF
    ·
    747.67 KB
    下载
  • SPECTERA Systems Rev 1_0-Scenario 8
    .PDF
    ·
    974.62 KB
    下载
  • SPECTERA Systems Rev 1_0 Scenarios 1-8
    .PDF
    ·
    5.37 MB
    下载

装箱内容01

  • (1) Spectera DAD antenna 1G4
