货号 505609
MEB 104-L B
概述
安装边界层麦克风

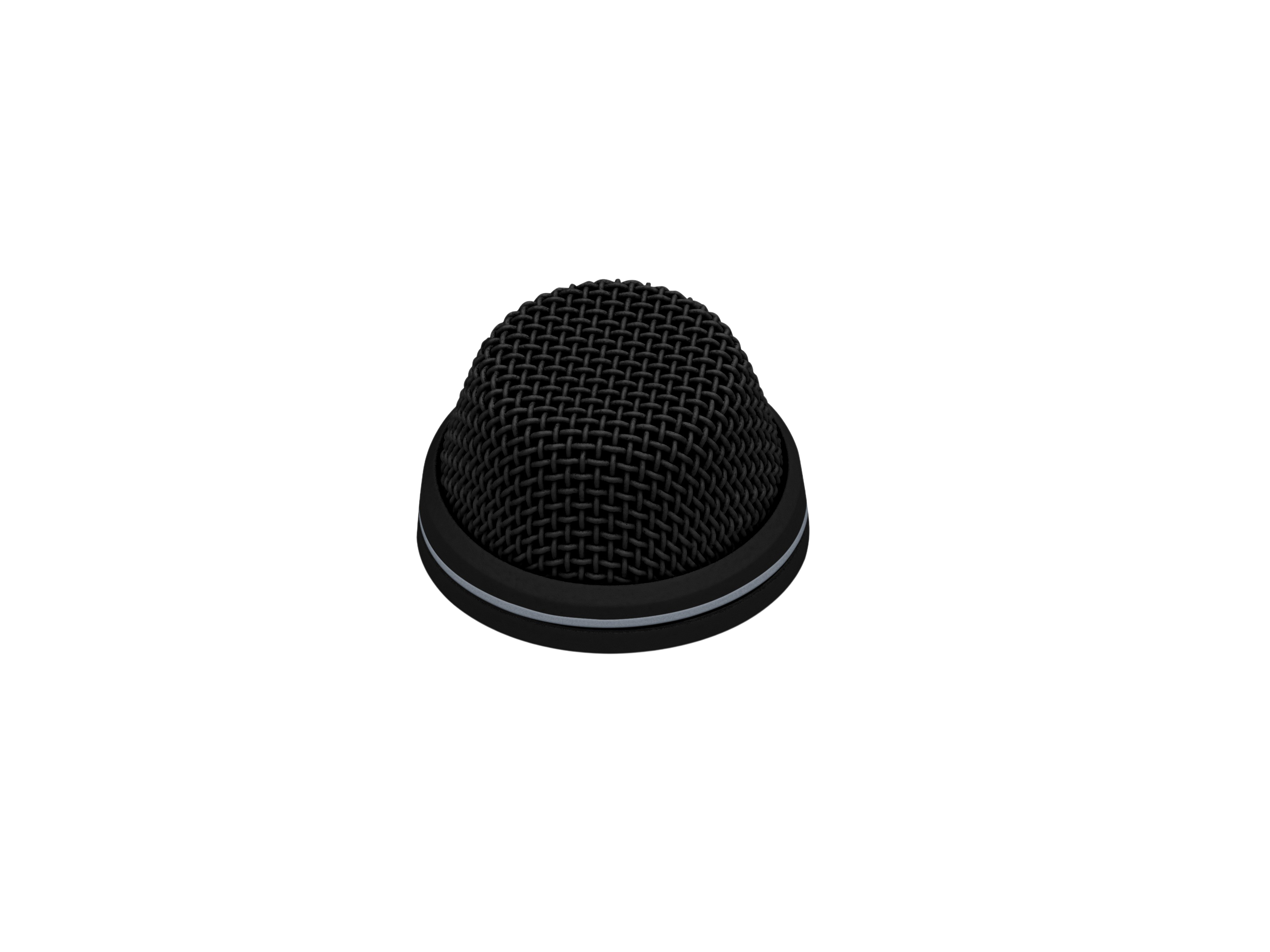

心型边界层麦克风 MEB 104(心型)结构紧凑,设计低调,适合任何室内风格,可以轻松安装到桌子或吊顶板等表面。它具有久经考验的森海塞尔麦克风音头,可实现最佳的语音清晰度,并受坚固的外壳保护。其 -L 型号带有一个用于状态指示的双色 LED 环。
主要参数
- Weight (g)2.12 oz
- Max. sound pressure level125 dB
- Polar pattern心轴式
- Sensitivity14 mV/Pa
技术参数
Product
- Polar pattern心轴式
- Transducer principlepre-polarized condenser microphone
Frequency Specifications
- Frequency response40 Hz – 20 kHz
Acoustic Properties
- Dynamic range (>)97 dB (A)
- Equivalent noise level (db)28 dB (A)
- Max. sound pressure level125 dB
Ambient Conditions
- Operating temperature (C)32 °to 104 ° F
Battery & Power
- Phantom poweringP 24 - P 48
Electrical Properties
- Sensitivity14 mV/Pa
- Nominal impedance200 Ω
Dimensions
- DimensionsHeight: 3.54 in (0.75 in above surface), Diameter: 1.12 in
- Height (mm)110
- Length (mm)85
- Weight (g)2.12 oz
- Width (mm)40
下载22
装箱内容03
- MEB 104
- 快速指南
- 安装材料
