SL CM FB

货号 506846

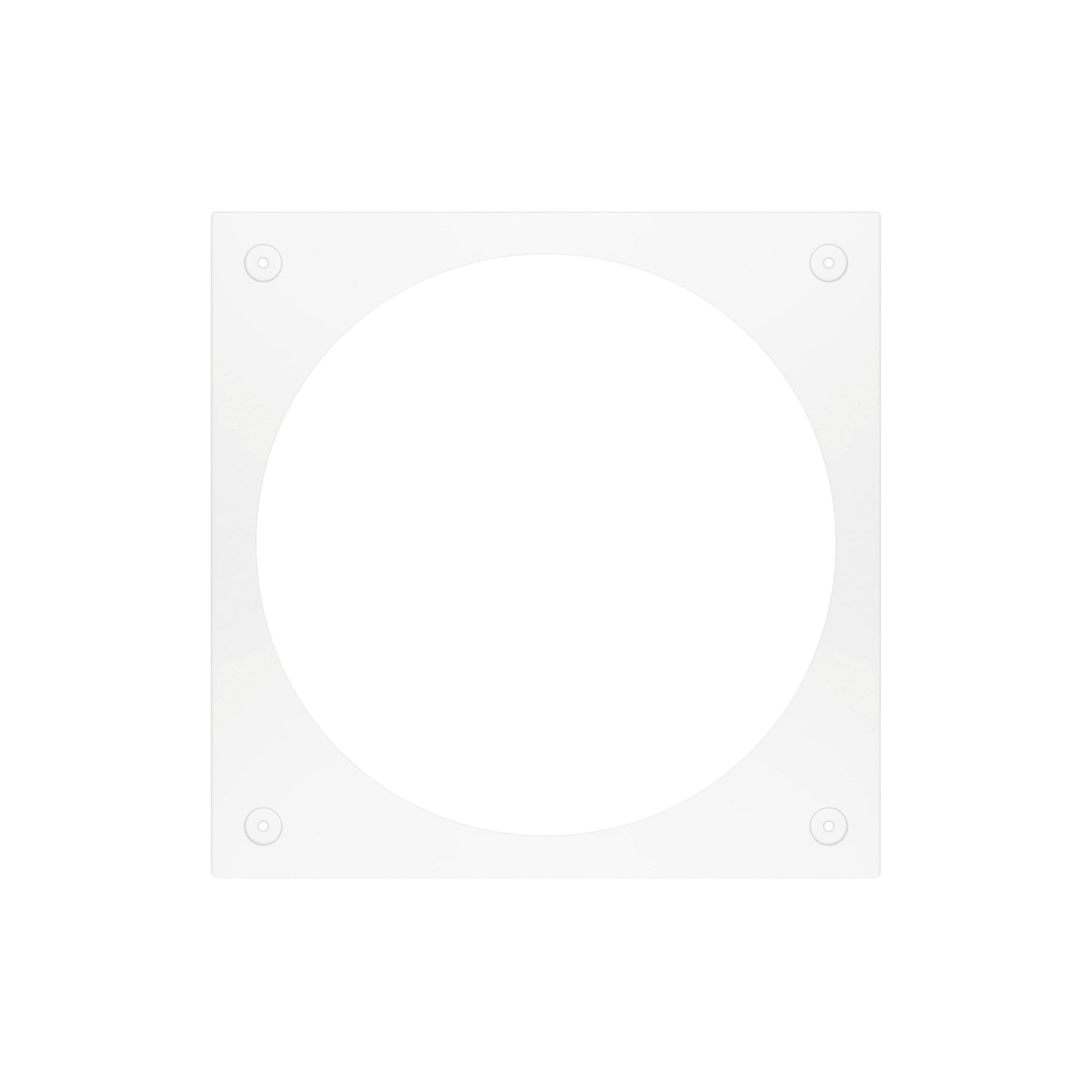

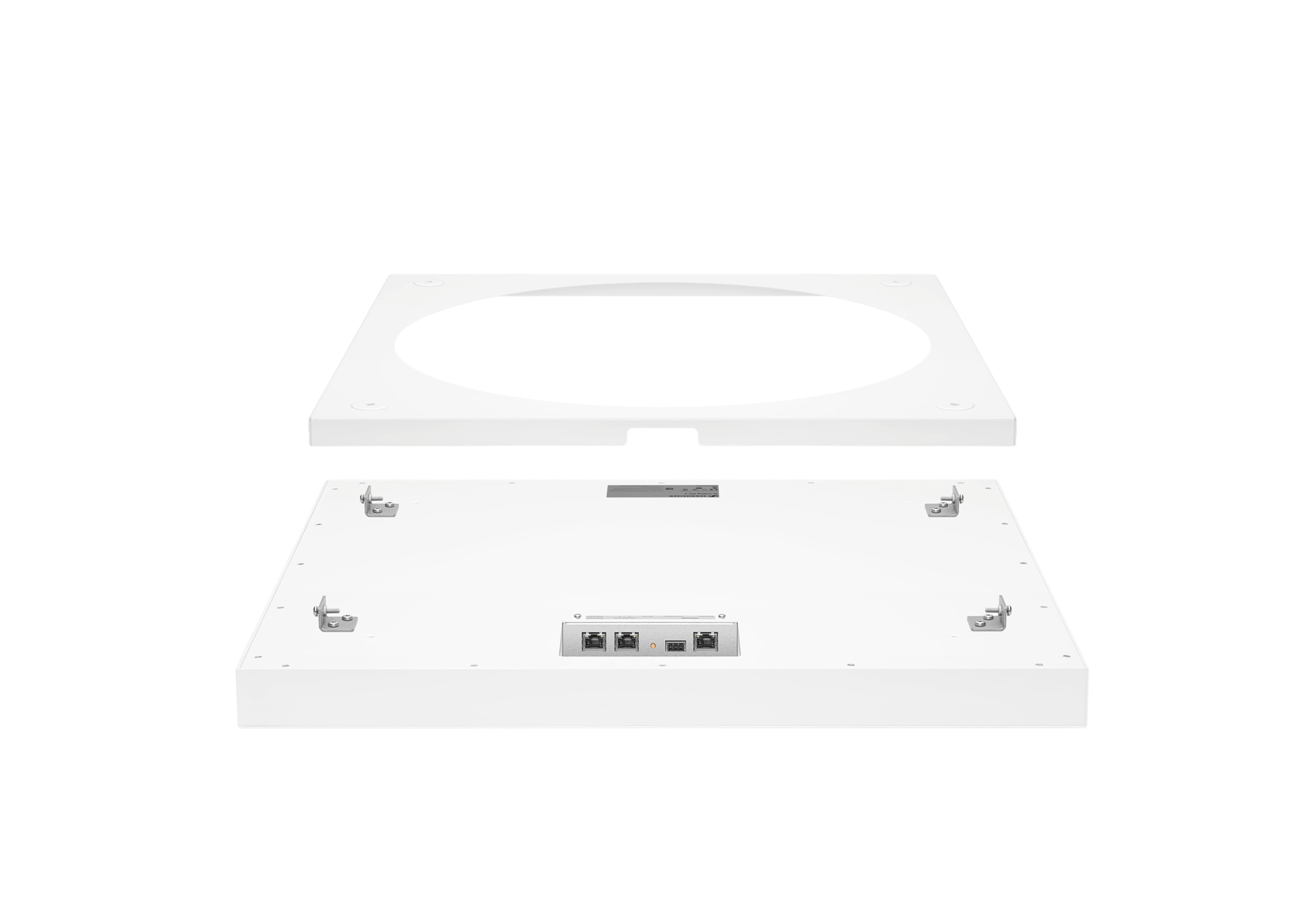

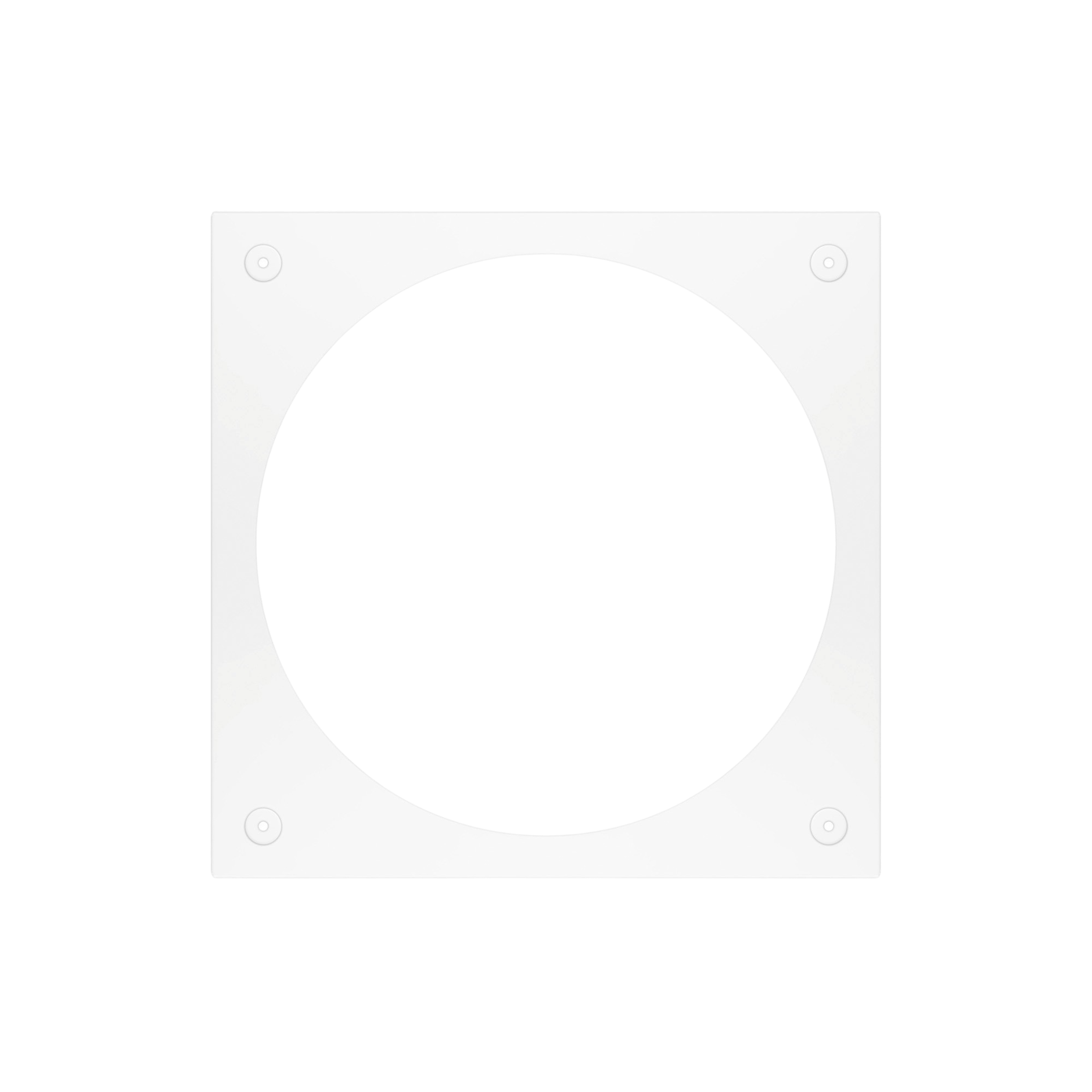

SL CM FB is a ceiling surface mounting bracket to install the TeamConnect Ceiling 2 microphone array on closed ceilings.
滚动到

主要参数

  • 重量 (g)2390

技术参数

Dimensions
  • 高度 (mm)
    66
  • 长度 (mm)
    600
  • 重量 (g)
    2390
  • 宽度 (mm)
    510
  • Product height
    66
  • Product weight (g)
    2390
  • Product width
    510

下载18

  • 安装指南 / 使用说明书 TeamConnect Ceiling 2 (PDF)
    .PDF
    ·
    4.89 MB
    下载
  • Mounting and operating instructions TeamConnect Ceiling 2 (PDF)
    .PDF
    ·
    4.98 MB
    下载
  • 3D model SL CM FB (STP)
    .STP
    ·
    392.65 KB
    下载
  • Outline dimensions SL CM FB (DWG)
    .DWG
    ·
    860.45 KB
    下载
  • Outline dimensions SL CM FB (DXF)
    .DXF
    ·
    3 MB
    下载
  • Outline dimensions SL CM FB (PDF)
    .PDF
    ·
    104.19 KB
    下载
