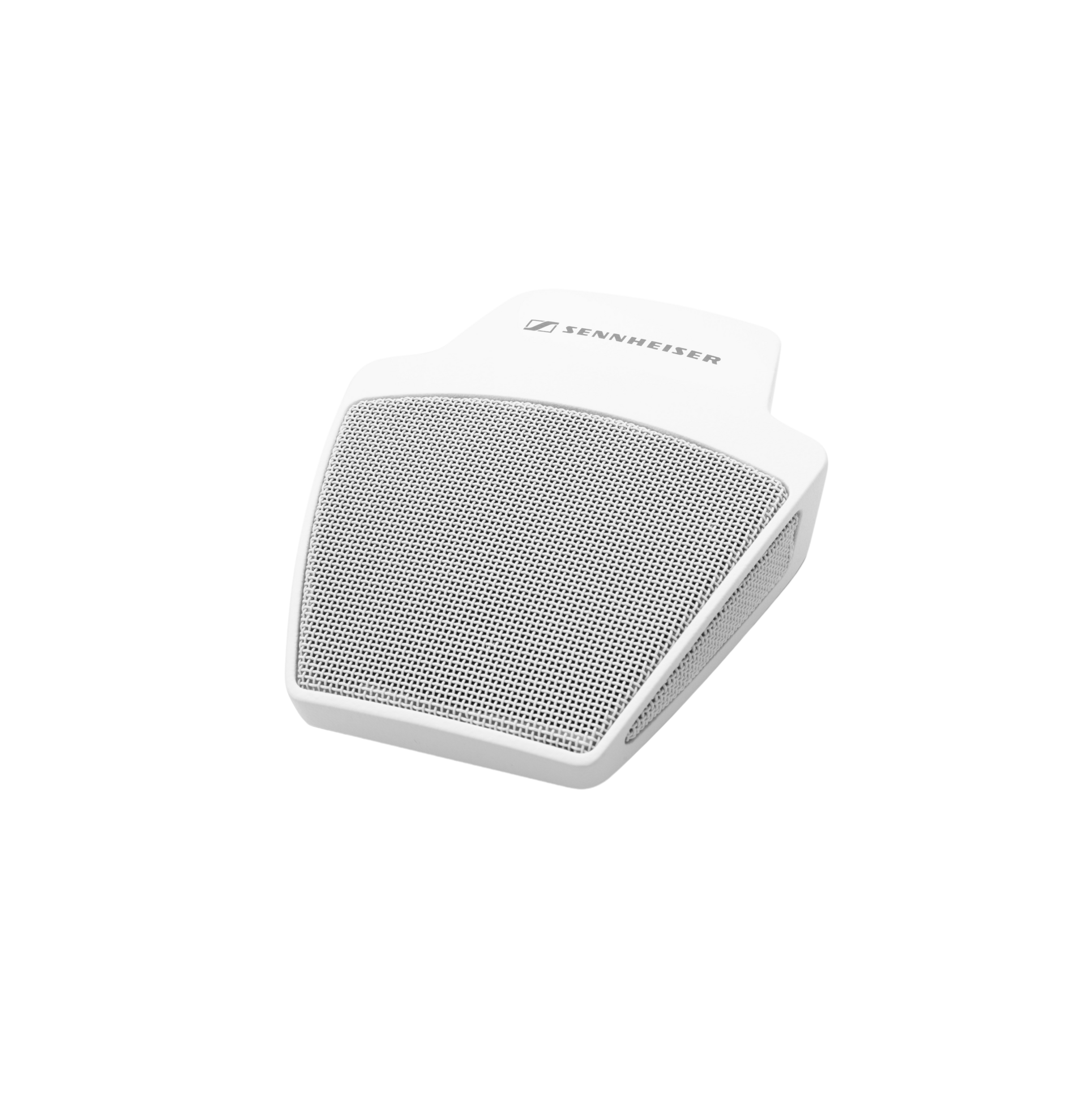

MEB 114 W

Article No. 505613

Top Specs

  • Dimensions3.34 x 3.93 x 0.98 in (W x D x H)
  • Weight (g)10.26 oz
  • Max. sound pressure level140 dB
  • Polar patternCardioid
  • Sensitivity10 mV/Pa
  • Transducer principlepre-polarized condenser microphone
  • Transducer typePre-polarised condenser
  • ConnectionWired
  • Connectors3-pin_XLR mini

Tech Specs

Product
  • Polar pattern
    Cardioid
  • Transducer principle
    pre-polarized condenser microphone
Frequency Specifications
  • Frequency response
    40 Hz – 20 kHz
  • Audio frequency response
    40 Hz – 20 kHz
Acoustic Properties
  • Dynamic range (>)
    111 dB (A)
  • Equivalent noise level (db)
    29 dB (A)
  • Max. sound pressure level
    140 dB
Connectivity
  • Connection
    Wired
  • Connectors
    3-pin_XLR mini
Ambient Conditions
  • Operating temperature (C)
    -10 °C to +50 °C (14 °F to 122 °F)
Battery & Power
  • Battery included
    N
  • Phantom power
    24 – 48 V
  • Phantom powering
    P 24 - P 48
Electrical Properties
  • Sensitivity
    10 mV/Pa
  • Nominal impedance
    200 Ω
Dimensions
  • Dimensions
    3.34 x 3.93 x 0.98 in (W x D x H)
  • Height (mm)
    58
  • Length (mm)
    205
  • Weight (g)
    10.26 oz
  • Width (mm)
    170
  • Product height
    25
  • Product length
    100
  • Product weight (g)
    286
  • Product width
    85

Downloads21

  • .PDF
    ·
    5.31 MB
    Download
  • .PDF
    ·
    558.39 KB
    Download
  • .DWG
    ·
    547.84 KB
    Download
  • .PDF
    ·
    1.68 MB
    Download
  • .PDF
    ·
    346.18 KB
    Download
  • .PDF
    ·
    449.12 KB
    Download
  • .PDF
    ·
    313.58 KB
    Download
  • .PDF
    ·
    134.42 KB
    Download
  • .PDF
    ·
    197.64 KB
    Download
  • .PDF
    ·
    1.99 MB
    Download
  • .PDF
    ·
    456.39 KB
    Download
  • .PDF
    ·
    2.04 MB
    Download

What's in the box03

  • MEB 114 Microphone
  • Quickguide
  • Cable
