MKE 600

Article No. 505453

Features08

  • Pronounced directivity
  • Maximal rejection of side noise
  • Switchable "Low Cut" filter minimizes wind noise
  • Phantom or battery powering
  • Battery switch with "Low Batt" indicator
  • Rugged all-metal housing
  • Very good suppression of structure-borne noise
  • Supplied with foam windshield, shock mount and adapter cable for cameras with 3.5 mm TRS jack connection

Top Specs

  • Dimensionsdiameter 20 mm, length 256 mm
  • Weight (g)128 g (without battery)
  • Max. sound pressure level132 dB SPL with P48; 126 dB SPL with battery powering
  • Polar patternSupercardioid, Lobar
  • Sensitivity21 mV/Pa with P48; 19 mV/Pa with battery powering:

Tech Specs

Product
  • Polar pattern
    Supercardioid, Lobar
Frequency Specifications
  • Frequency response
    40 Hz to 20 kHz
  • Audio frequency response
    40 - 20,000 Hz
Acoustic Properties
  • Equivalent noise level (db)
    15 dB (A) with P48; 16 dB (A) with battery powering
  • Max. sound pressure level
    132 dB SPL with P48; 126 dB SPL with battery powering
Ambient Conditions
  • Operating temperature (C)
    -10 °C to 60 °C (14 °F to 140 °F)
Battery & Power
  • Battery operating time (h)
    approx. 150 hrs
Electrical Properties
  • Sensitivity
    21 mV/Pa with P48; 19 mV/Pa with battery powering:
Dimensions
  • Dimensions
    diameter 20 mm, length 256 mm
  • Height (mm)
    82
  • Length (mm)
    330
  • Weight (g)
    128 g (without battery)
  • Width (mm)
    132.5
  • Product height
    82
  • Product weight (g)
    128 g (0.28 lbs)
  • Product width
    20 mm (0.79")

Downloads10

  • EU Declaration of conformity - MKE 600
    .PDF
    ·
    702.56 KB
    Download
  • Instruction manual MKE 600
    .PDF
    ·
    281.46 KB
    Download
  • Quick guide - MKE 600
    .PDF
    ·
    2.1 MB
    Download
  • Safety instructions - MKE 600
    .PDF
    ·
    715.59 KB
    Download
  • Product specification MKE 600
    .PDF
    ·
    196.08 KB
    Download
  • Brochures MKE 600
    .PDF
    ·
    486.46 KB
    Download

What's in the box06

  • MKE 600 shotgun microphone
  • MZS 600 shock mount
  • MZW 600 foam windshield
  • Instruction manual

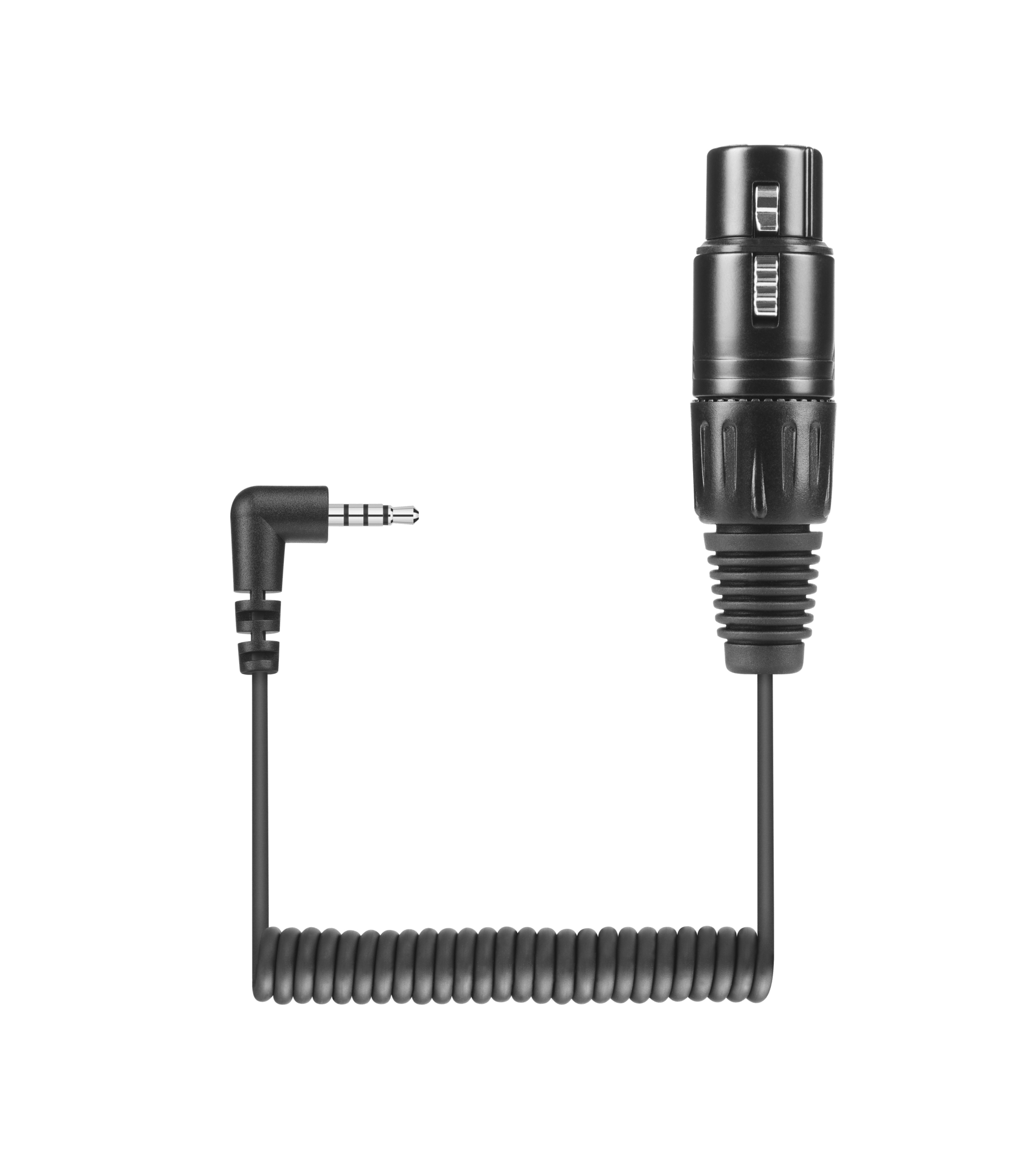

  • KA 600 XLR to 3.5mm TRS cable
  • Pouch
