ADN C1

Article No. 502759

This product is no longer available to be purchased

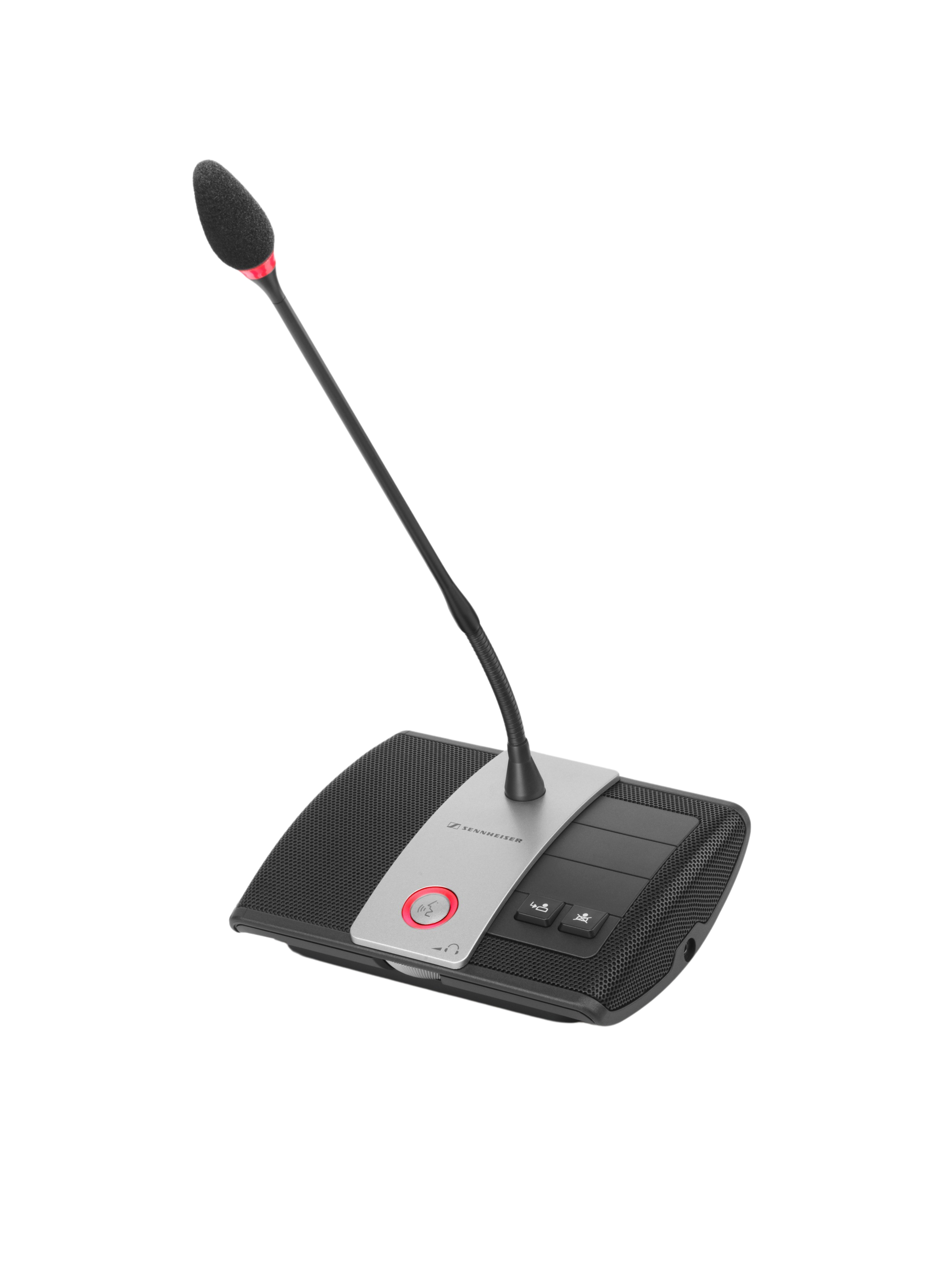

The digital chairperson unit ADN C1 offers high speech-intelligibility in a modern design. The gooseneck microphone is equipped with a super-cardioid capsule. A twin-loudspeaker system guarantees a homogenous sound level in the meeting room.

The digital chairperson unit ADN C1 offers high speech-intelligibility in a modern design. The goose-neck microphone is equipped with a super-cardioid capsule that attenuates unwanted ambient noise efficiently. A twin-loudspeaker system guarantees a homogenous sound level in the meeting room. The cabling of the units, which is done by CAT5 cables and hidden connections can be optionally secured with strain reliefs for fixed installations.

Features⁰⁶

Gooseneck microphone with Sennheiser super-cardioid capsule
DSP limiter
Modern industrial design, hidden cable connections
High-performance twin loudspeakers
Convenient cabling via RJ45 sockets
Strain relief available for fixed installations

Top Specs

Dimensions185 x 63 x 140 mm (without gooseneck)
Weight (g)700 g
Polar patternSupercardioid
Power consumption (Amp)max. 3,5 W
Pick-up patternSuper-cardioid

Tech Specs

Product

Polar pattern
Supercardioid
Total harmonic distortion (THD)
0,03 % at 50 mW/16 Ω

Acoustic Properties

Pick-up pattern
Super-cardioid

Ambient Conditions

Operating temperature (C)
+ 10 °C to + 40 °C

Battery & Power

Power consumption (Amp)
max. 3,5 W

Dimensions

Dimensions
185 x 63 x 140 mm (without gooseneck)
Height (mm)
210
Length (mm)
409
Weight (g)
700 g
Width (mm)
250
Product height
210
Product length
409
Product weight (g)
700
Product width
250

Downloads²²

Instruction Manuals

Quick Guide ADN C1 & ADN D1
.PDF
·
2.88 MB
Download
ADN System Instruction Manual
.PDF
·
17.27 MB
Download

Technical Drawings

Outline Dimensions ADN C1 (DWG)
.DWG
·
2.24 MB
Download

Quick Guides

ADN C1 Quick Guide
.PDF
·
1.11 MB
Download

Compliance Statements

Manufacturer declarations - ADN / ADN-W C1/D1
.PDF
·
504.73 KB
Download

Media Control Protocols

ADN Media Control Protocol
.PDF
·
4.77 MB
Download

Spec Sheets

Product specification ADN C1
.PDF
·
171.44 KB
Download
System specification ADN conference System
.PDF
·
476.52 KB
Download

Digital Brochures

Product brochure ADN | ADN-W
.PDF
·
2.91 MB
Download

EU Declaration of Conformity

EC Declaration of Conformity ADN Conference System
.PDF
·
384.18 KB
Download

Press Reviews

Reference: Saudi Arabia
.PDF
·
270.72 KB
Download

Need downloads for multiple products? Find more in our download center.

What's in the box⁰²

ADN C1 Chairperson unit
Quick-Guide

Accessories and spare parts⁰¹

ADN TR1
