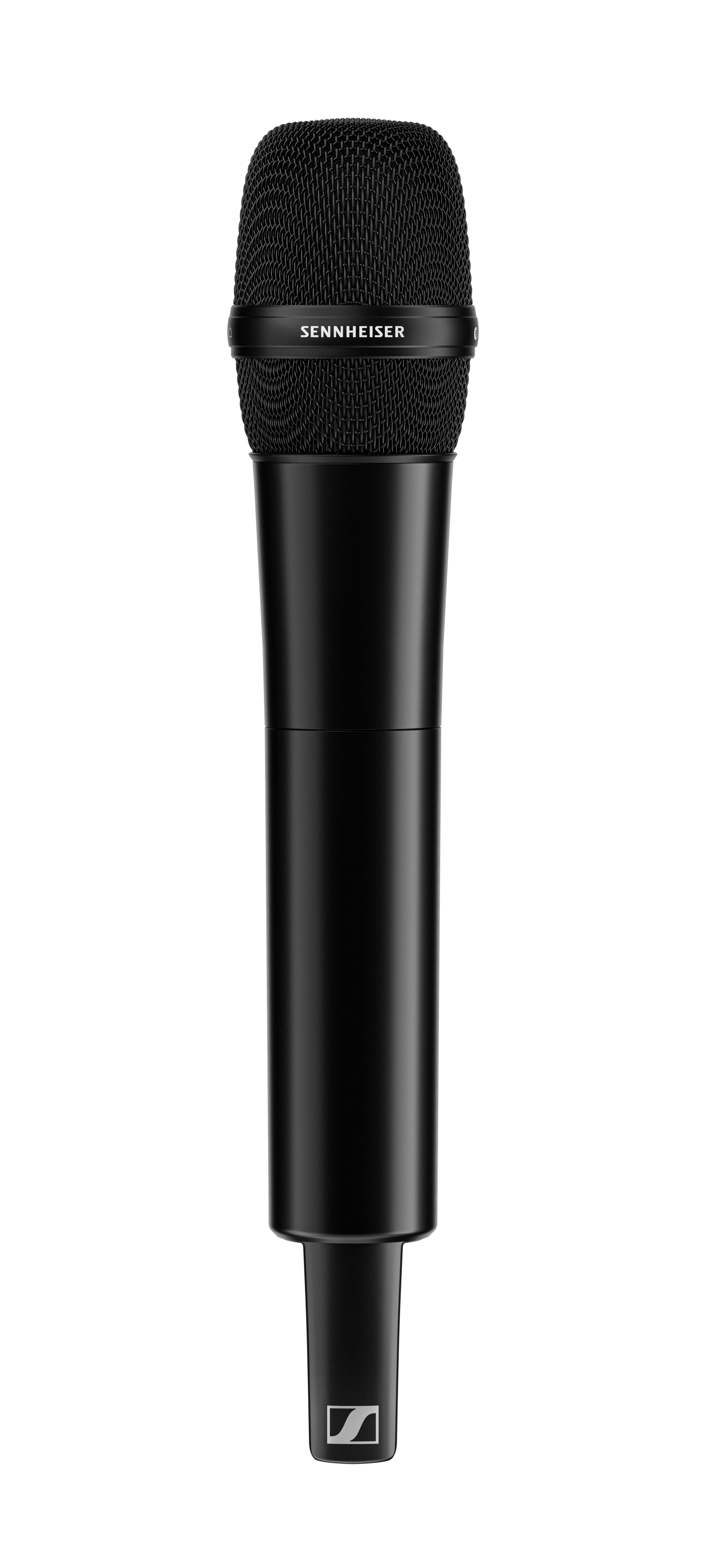

  • EW-DX_SKM-S_Product_Shot_Cutout_FrontChange to image slide 1

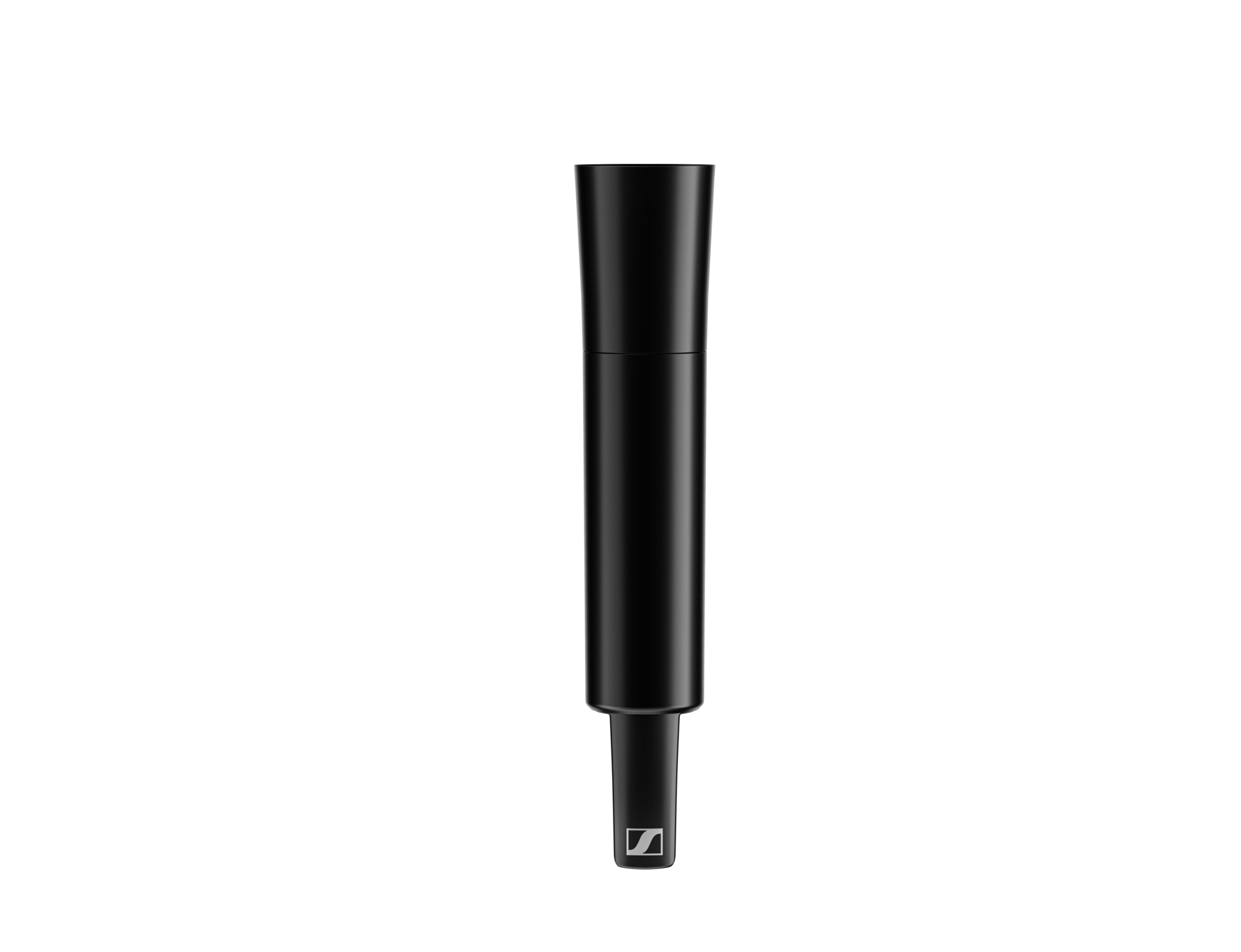

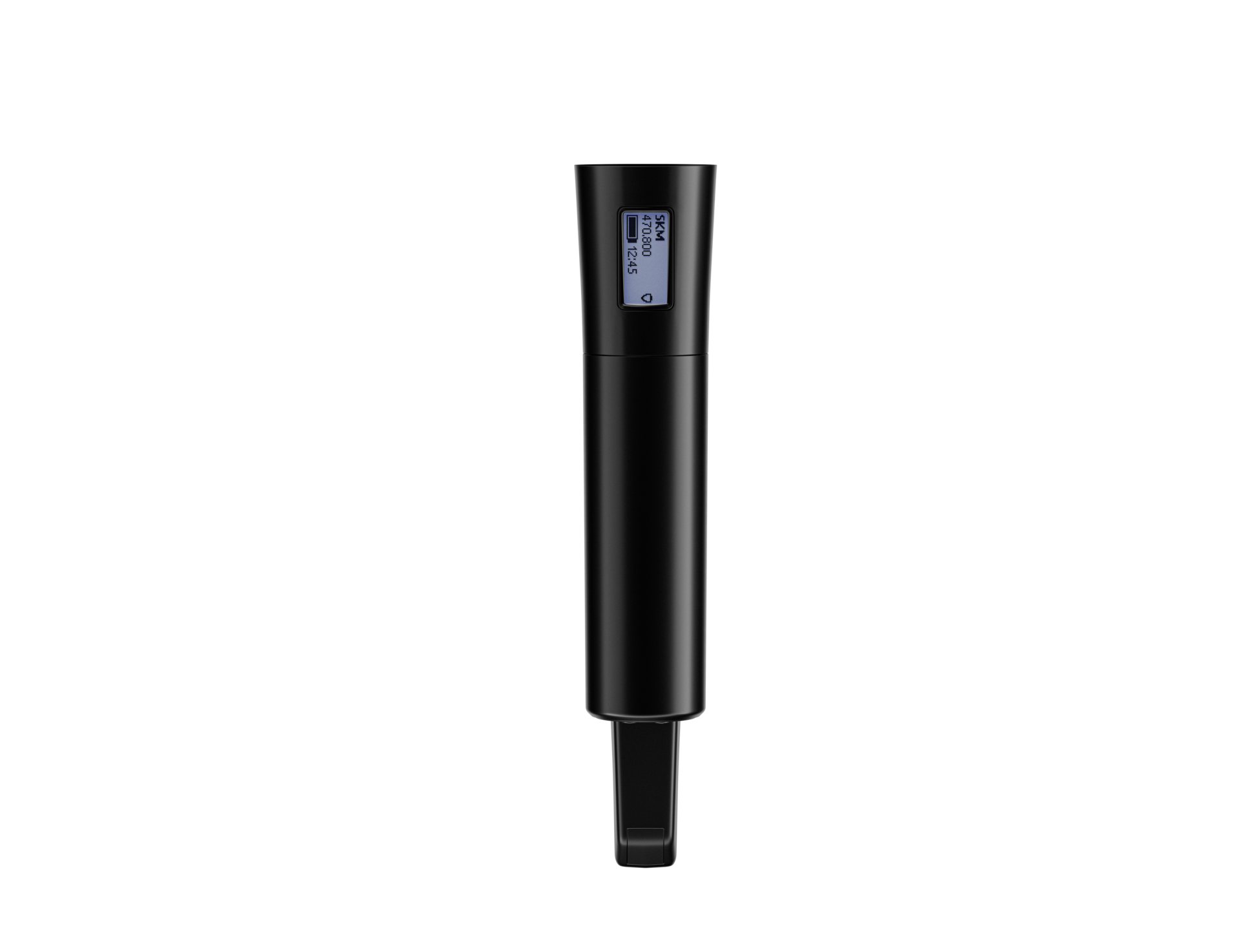

  • Sennheiser_EW-DX_SKM_Product_Shot_Cutout_front_wo_capsuleChange to image slide 2
  • Sennheiser_EW-DX_SKM_Product_Shot_Cutout_Back_wo_capsuleChange to image slide 3

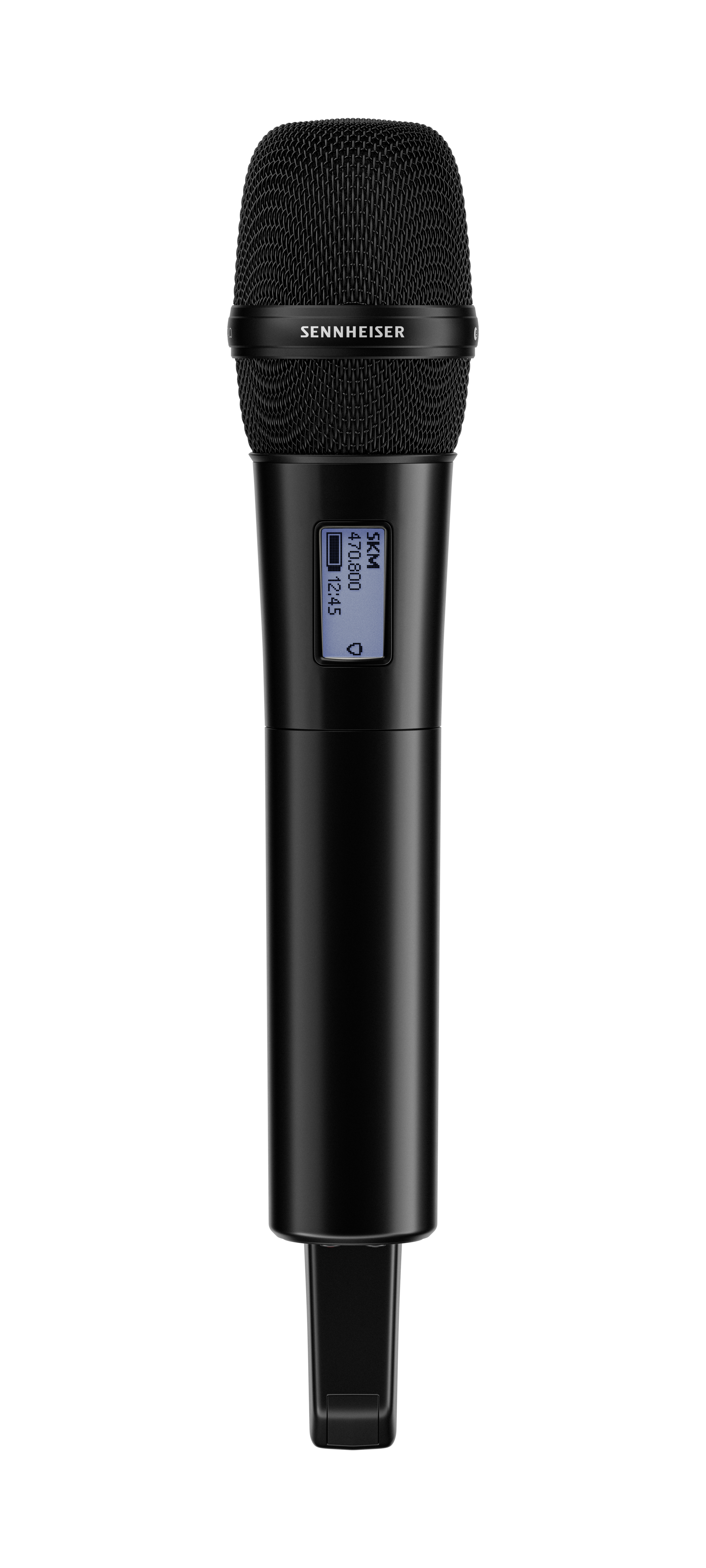

  • EW-DX_SKM_Product_Shot_Cutout_FrontChange to image slide 4

EW-DX SKM (Q1-9)

Article No. 509426

Features15

  • 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • 10mW fixed RF power for up to 100 m/328 ft of range
  • Charging contacts for in-device charging with CHG 70N charger (sold separately)
  • Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
  • Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
  • Function buttons - control all the transmitter settings directly from the handheld including button lock function
  • Digital audio trim
  • Test tone generator
  • Switchable LED configuration (On/Off)
  • Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
  • Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
  • Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
  • Metal housing
  • Worldwide usage (specific frequencies subject to local RF regulations)
  • Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.

Top Specs

  • Dimensions50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
  • Weight (g)450
  • Latency (ms)1.9 ms

Tech Specs

Product
  • Total harmonic distortion (THD)
    ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Latency (ms)
    1.9 ms
Frequency Specifications
  • Audio frequency response
    20 Hz - 20 kHz (-3 dB)
Acoustic Properties
  • Dynamic range (>)
    134 dB
Connectivity
  • Connection
    Wireless
Ambient Conditions
  • Operating relative humidity (≤ %)
    5 - 95 % (non-condensing)
  • Operating temperature (C)
    -10 °C - +55 °C (14 °F - 131 °F)
Battery & Power
  • Battery capacity (Ah)
    2.3
  • Battery count
    2
  • Battery included
    Y
  • Battery voltage (V)
    1.5
  • Charging current (mA)
    < 300 mA
  • Battery operating time (h)
    BA 70 rechargeable battery pack
Electrical Properties
  • Input voltage
    2.0 - 4.35 V
  • Transmission power (mA)
    Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP
Technology
  • Transmission method
    200 kHz
Dimensions
  • Dimensions
    50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
  • Height (mm)
    73
  • Length (mm)
    350
  • Weight (g)
    450
  • Width (mm)
    81
  • Product height
    73
  • Product length
    350
  • Product weight (g)
    304
  • Product width
    81
Bluetooth
  • Bluetooth transmission frequency
    2402 - 2480 MHz

Downloads49

chevron-up
  • Instruction manual and frequently asked questions - Evolution Wireless Digital (EW-D | EW-DX | EW-DP) (PDF)
    .PDF
    ·
    42.48 MB
    Download
  • Safety instructions - EW-DX
    .PDF
    ·
    890.29 KB
    Download
  • Specifications & Manufacturer declarations - EW-DX
    .PDF
    ·
    886.79 KB
    Download
  • Firmware Release Notes - EW-DX
    .PDF
    ·
    117.18 KB
    Download
  • EW-DX Firmware Release Notes v.3.0.2
    .PDF
    ·
    105.19 KB
    Download
  • EW-DX Firmware Release Notes v.3.0.3
    .PDF
    ·
    110.87 KB
    Download
  • EW-DX Firmware v.3.02
    .ZIP
    ·
    37.25 MB
    Download
  • EW-D Firmware - Release Notes
    .PDF
    ·
    111.45 KB
    Download
  • Firmware Update - EW-DX Version 1.2.13
    .ZIP
    ·
    32.75 MB
    Download
  • EW-DX_Firmware_v2.0.1
    .ZIP
    ·
    34.18 MB
  • EW-DX Firmware v.3.0.3
    .ZIP
    ·
    37.36 MB
    Download
  • Dimensions EW-DX_SKM (STP)
    .STP
    ·
    15.65 MB
    Download
  • Dimensions EW-DX_SKM (DWG)
    .DWG
    ·
    1.32 MB
    Download
  • System Drawing of 2-Channel System
    .PDF
    ·
    510.5 KB
    Download
  • System Drawing of 2-32 channel system
    .PDF
    ·
    4.09 MB
    Download
  • System Drawing of 2-32 channel system
    .PDF
    ·
    4.09 MB
    Download
  • System Drawing of 4-Channel System
    .PDF
    ·
    472.29 KB
    Download
  • System Drawing of 6-Channel System
    .PDF
    ·
    478.8 KB
    Download
  • System Drawing of 8-Channel System
    .PDF
    ·
    485.07 KB
    Download
  • System Drawing of 10-Channel System
    .PDF
    ·
    496.46 KB
    Download
  • System Drawing of 12-Channel System
    .PDF
    ·
    502.85 KB
    Download
  • System Drawing of 14-Channel System
    .PDF
    ·
    509.02 KB
    Download
  • System Drawing of 16-Channel System, option A
    .PDF
    ·
    516.42 KB
    Download
  • System Drawing of 16-Channel System, options A&B
    .PDF
    ·
    578.59 KB
    Download
  • System Drawing of 16-Channel System, option B
    .PDF
    ·
    516.46 KB
    Download
  • System Drawing of 18-Channel System
    .PDF
    ·
    527.91 KB
    Download
  • System Drawing of 20-Channel System
    .PDF
    ·
    534.62 KB
    Download
  • System Drawing of 22-Channel System
    .PDF
    ·
    541.65 KB
    Download
  • System Drawing of 24-Channel System
    .PDF
    ·
    551.18 KB
    Download
  • System Drawing of 26-Channel System
    .PDF
    ·
    556.84 KB
    Download
  • System Drawing of 30-Channel System
    .PDF
    ·
    572.07 KB
    Download
  • System Drawing of 32-Channel System
    .PDF
    ·
    580.4 KB
    Download
  • System Drawing of EM 2 Channel Receiver
    .PDF
    ·
    451.28 KB
    Download
  • System Drawing of EW-D ASA
    .PDF
    ·
    419.59 KB
    Download
  • Quick Guide - EW-DX EM 2 | EW-DX SKM(-S) | EW-DX SK (3-PIN)
    .PDF
    ·
    4.83 MB
    Download
  • Sennheiser Control Cockpit - How to Guide
    .PDF
    ·
    452.72 KB
    Download
  • Product specification - EW-DX SKM | EW-DX SKM-S
    .PDF
    ·
    349.23 KB
    Download
  • Sennheiser Sound Control Protocol - EW-DX EM 2 (Firmware 1.1.3)
    .PDF
    ·
    517.9 KB
    Download
  • EW-DX_Education_Corporate_Brochure_11_2024_EN
    .PDF
    ·
    4.58 MB
    Download
  • EU Declaration of Conformity - EW-DX EM 2 | EW-DX SKM | EW-DX SK
    .PDF
    ·
    1.35 MB
    Download
    • Crestron Plugin - EW-DX EM 2
      .ZIP
      ·
      2.24 MB
      Download
    • Q-SYS Plugin - EW-DX EM 2
      .ZIP
      ·
      789.31 KB
      Download

    What's in the box03

    • EW-DX SKM handheld transmitter
    • MZQ 1 microphone clamp
    • 2 Batteries (AA)
