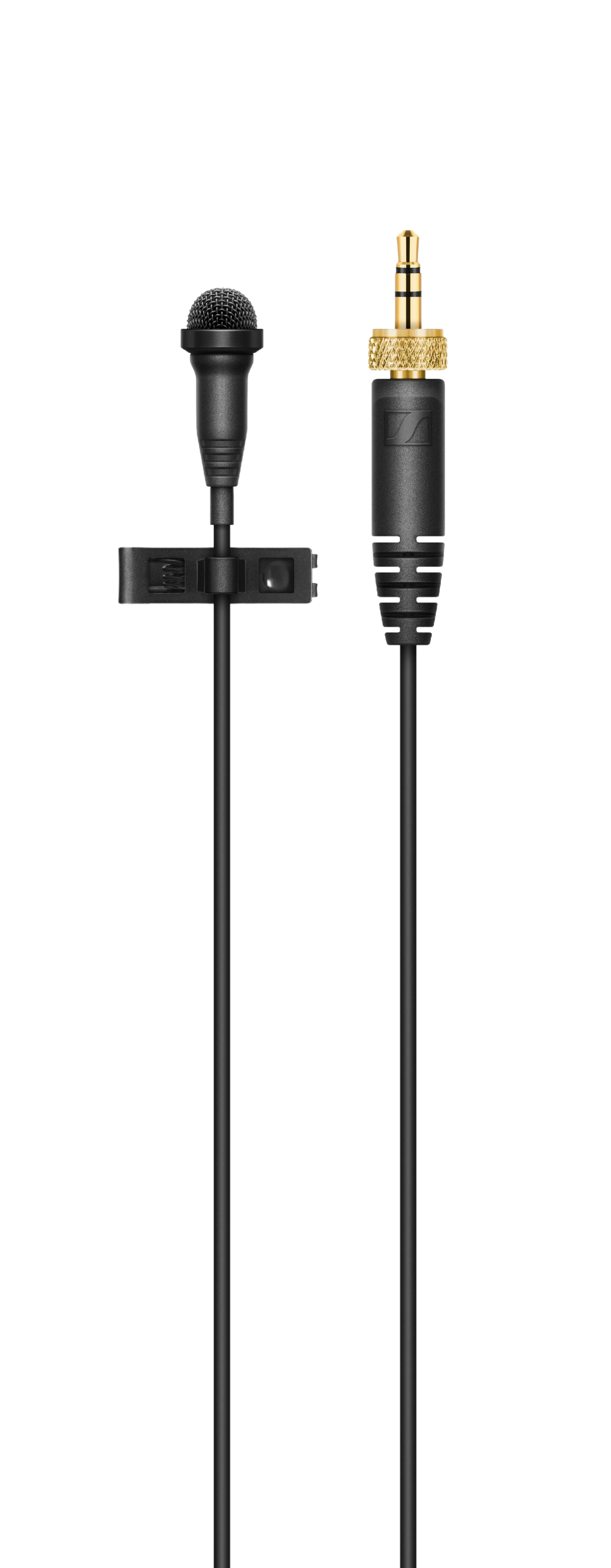

ME 2

Article No. 508935

Small omni-directional clip-on microphone for speech and vocal applications. High speech intelligibility. Easy attachment on any clothing.

Omni-directional lavalier (lapel) microphone for use with evolution Wireless SK bodypack transmitters.
Scroll to:

Features03

  • High speech intelligibility
  • Easy attachment on clothing
  • Mini jack for bodypack transmitters from evolution wireless series, AVX, SpeechLine Digital Wireless, XS Wireless

Top Specs

  • Dimensionsd 6,5 mm
  • Weight (g)30
  • Max. sound pressure level130 dB
  • Polar patternOmnidirectional
  • Transducer principlePermanently-polarized Condenser

Tech Specs

Product
  • Polar pattern
    Omnidirectional
  • Transducer principle
    Permanently-polarized Condenser
Frequency Specifications
  • Audio frequency response
    50 - 18,000 Hz
Acoustic Properties
  • Equivalent noise level (db)
    32 dB
  • Pick-up pattern
    omni-directional
  • Max. sound pressure level
    130 dB
Connectivity
  • Connectors
    3.5mm
  • Cable connections
    mini-jack
Battery & Power
  • Battery included
    N
Electrical Properties
  • Input voltage
    10 V
Dimensions
  • Dimensions
    d 6,5 mm
  • Height (mm)
    15
  • Length (mm)
    170
  • Weight (g)
    30
  • Width (mm)
    110
  • Product height
    15
  • Product length
    170
  • Product weight (g)
    30
  • Product width
    110
  • Cable length (m)
    1,6 m

Downloads05

chevron-up
  • Safety instructions ME 2/ ME 3/ ME 4
    .PDF
    ·
    1.68 MB
    Download
  • Product specification ME 2
    .PDF
    ·
    116.38 KB
    Download
  • EU Declaration of Conformity - ME 2 / ME 3 / ME 4
    .PDF
    ·
    546.6 KB
    Download

What's in the box02

  • 1 ME
  • 1 clip
