EZL 2020-20L

Article No. 500542

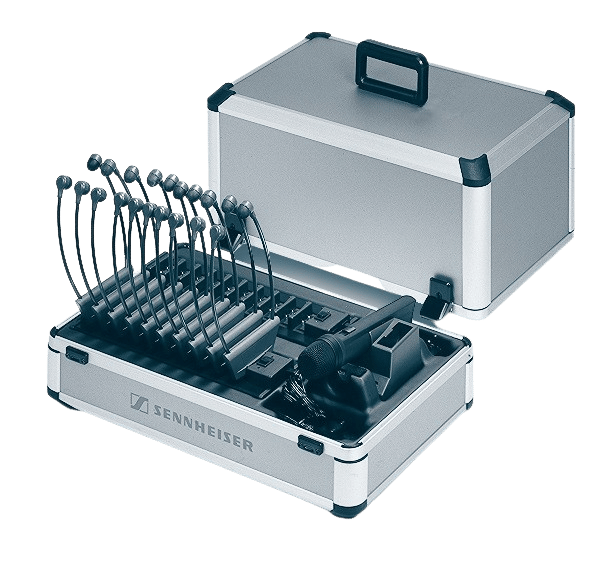

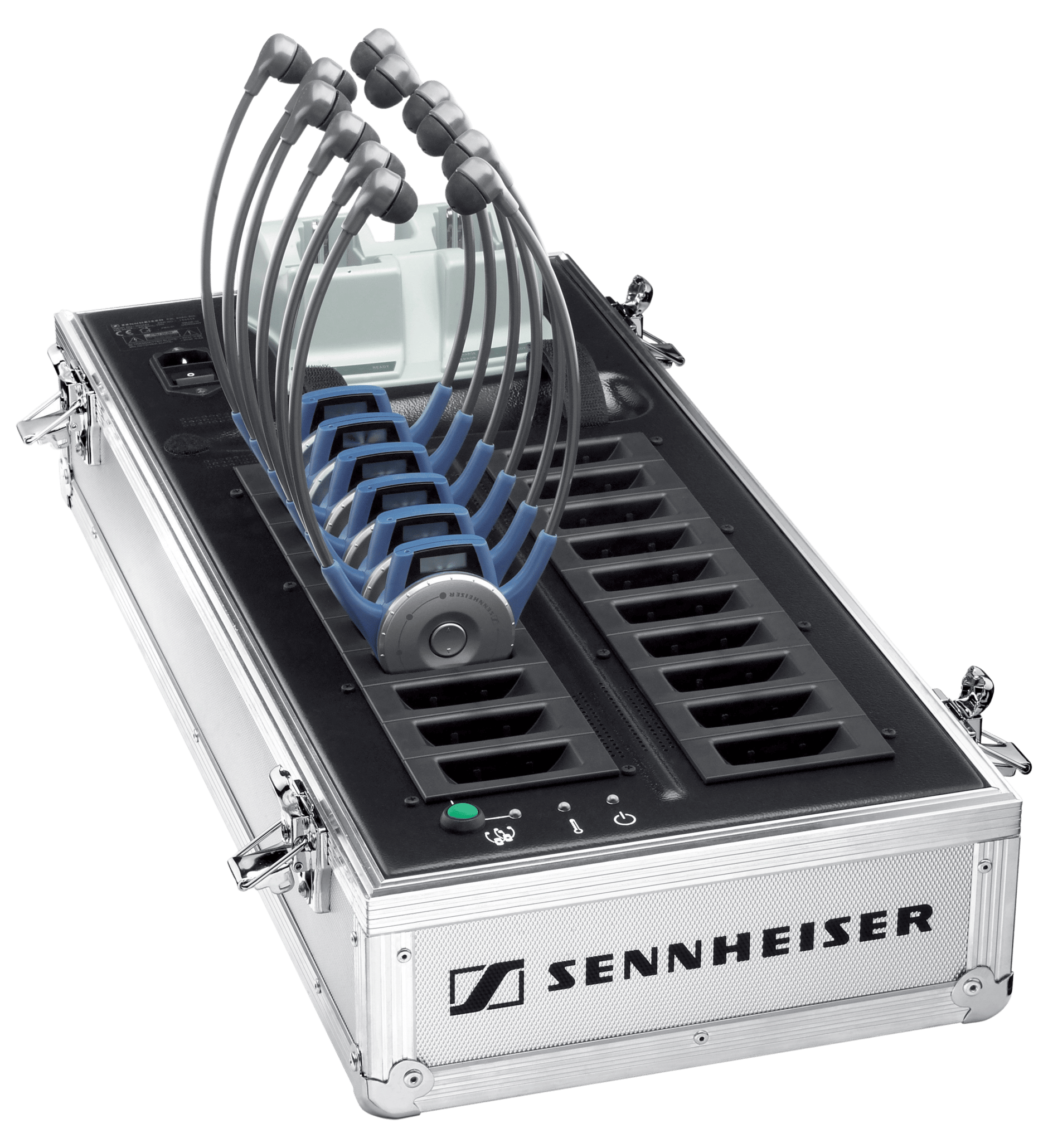

The EZL 2020-20L charger case has been designed to be highly user-friendly. It acts as both the storage case for all equipment and charging station for the Tourguide receivers and transmitter.

The EZL 2020-20L charger case has been designed to be highly user-friendly. It acts as both the storage case for all equipment and charging station for the Tourguide receivers and transmitter. Twenty charging bays for HDE 2020-D or EK 2020-D receivers and two charging bays for the transmitter or its rechargeable battery pack-are provided. Truly impressive feature of the charging case is the Copy button. All you need do is to set one receiver to the correct channel, press this button just once, and all of the other receivers in the case will immediately be set to the same channel.
Scroll to:
Scroll to:

Features07

  • Charging bays for 20 receivers
  • Copy button copies the selected channel of one receiver to all others
  • Fast charging in approx. 2.5 hrs
  • Trickle charge
  • Charging bay for SK 2020-D
  • Charging bay for BA 2015 spare battery
  • Safe recharging with temperature monitoring

Top Specs

  • Dimensions600 x 270 x 380 mm
  • Weight (g)8,3 kg
  • Charging time (h)HDE 2020-D, < 2,5 h; SK 2020-D / BA 2015 < 3,5 h
  • Power consumption (Amp)max. 70 W

Tech Specs

Ambient Conditions
  • Operating temperature (C)
    0–40 °C
Battery & Power
  • Charging time (h)
    HDE 2020-D, < 2,5 h; SK 2020-D / BA 2015 < 3,5 h
  • Power consumption (Amp)
    max. 70 W
Dimensions
  • Dimensions
    600 x 270 x 380 mm
  • Weight (g)
    8,3 kg
  • Product weight (g)
    8,3 kg

Downloads12

  • EU Declaration of Conformity Tourguide 2020 System
    .PDF
    ·
    600.4 KB
    Download
  • Bedienungsanleitung Tourguide 2020-D
    .PDF
    ·
    5.28 MB
    Download
  • Instruction manual Tourguide 2020-D
    .PDF
    ·
    5.49 MB
    Download
  • Notice d'emploi Tourguide 2020-D
    .PDF
    ·
    5.3 MB
    Download
  • Instruction manual Tourguide 2020-D
    .PDF
    ·
    5.3 MB
    Download
  • Gebruiksaanwijzing Tourguide 2020-D
    .PDF
    ·
    5.31 MB
    Download
  • Brochure visitor guidance systems
    .PDF
    ·
    3.93 MB
    Download
  • Sennheiser tour-guide systems Key data
    .PDF
    ·
    212.45 KB
    Download
  • System Configurations SR2020-D-US
    .PDF
    ·
    373.42 KB
    Download
  • TG2020_Brochure
    .PDF
    ·
    245.71 KB
    Download
  • Product brochure Tourguide 2020
    .PDF
    ·
    3.73 MB
    Download
  • Brochure produit Tourguide 2020
    .PDF
    ·
    3.82 MB
    Download

What's in the box02

  • EZL 2020-20 Charging Case
  • Manual
