TeamConnect Ceiling Medium F-W
Article No. 700170
Features16
- Patented automatic dynamic beamforming
- TruVoicelift
- 15 Electret condenser capsules, Made in Germany
- Perfect speech intelligibility
- Dante or Analog Output
- PoE/PoE+ powered (single/daisy chaining)
- Single-cable mode
- Exclusion Zones & Priority Zone
- Camera Control via talker position data
- Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2
- Options for flush, surface, suspended or VESA mounting<br>
- Easily paintable metal housing
- IEEE 802.1x
- Intelligent Noise Control
- Color: White
- Certified for Microsoft Teams
Top Specs
- ColorWhite
- Weight (g)max. 4,9 kg (10.8lbs)
- Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
- Max. sound pressure level98 dB SPL
- Power consumption (Amp)Approx. 8 W
- Sensitivity0 dBV/Pa (1020 mV/Pa)
- Signal-to-noise ratio79 db(A)
- Transducer principlePre-polarized condenser microphone
- Transducer typePre-polarised condenser
- ConnectionWired
Tech Specs
Product
- Transducer principlePre-polarized condenser microphone
- Warranty AMER (years)5
- ColorWhite
Frequency Specifications
- Audio frequency response (Hz)100 Hz to 16,000 Hz
- Audio frequency response100 Hz to 16,000 Hz
Acoustic Properties
- Dynamic range (>)83 db(A)
- Equivalent noise level (db)15 db(A)
- Max. sound pressure level98 dB SPL
- Signal-to-noise ratio79 db(A)
Connectivity
- ConnectionWired
Inputs/Outputs
- Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Ambient Conditions
- Operating relative humidity (≤ %)20 to 95%, non-condensing
Battery & Power
- Battery includedN
- Power consumption (Amp)Approx. 8 W
Electrical Properties
- Sensitivity0 dBV/Pa (1020 mV/Pa)
Dimensions
- Height (mm)46
- Length (mm)407
- Weight (g)max. 4,9 kg (10.8lbs)
- Width (mm)407
- Product height46
- Product length407
- Product weight (g)4900
- Product width407
Downloads40
.PDF
1.27 MB
.SENNPKG
47.23 MB
.DNT
17.23 MB
.PDF
8.24 MB
.PDF
697.87 KB
.PDF
46.66 KB
.PDF
1.06 MB
.PDF
1.92 MB
Online Manuals02
What's in the box08

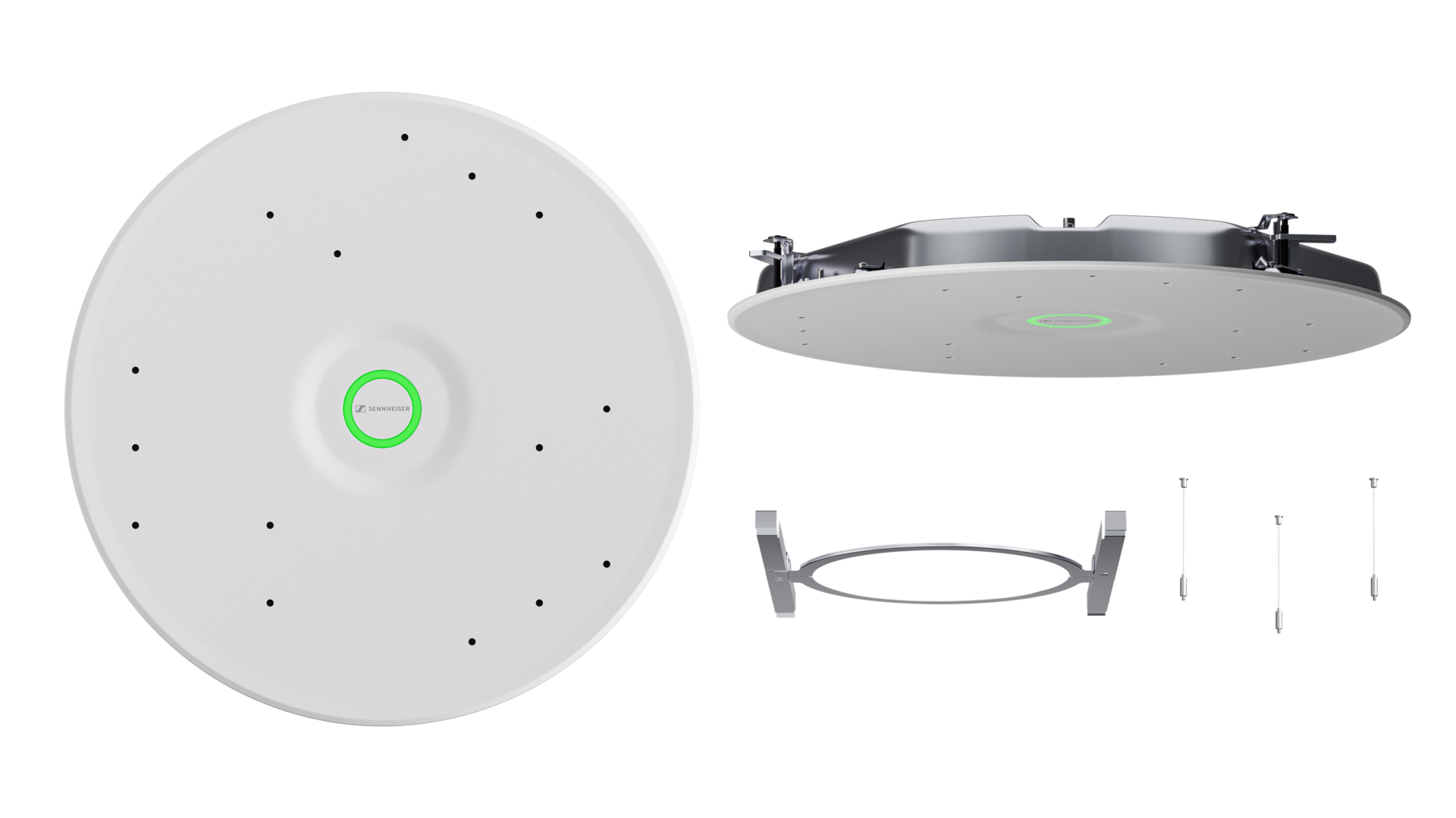

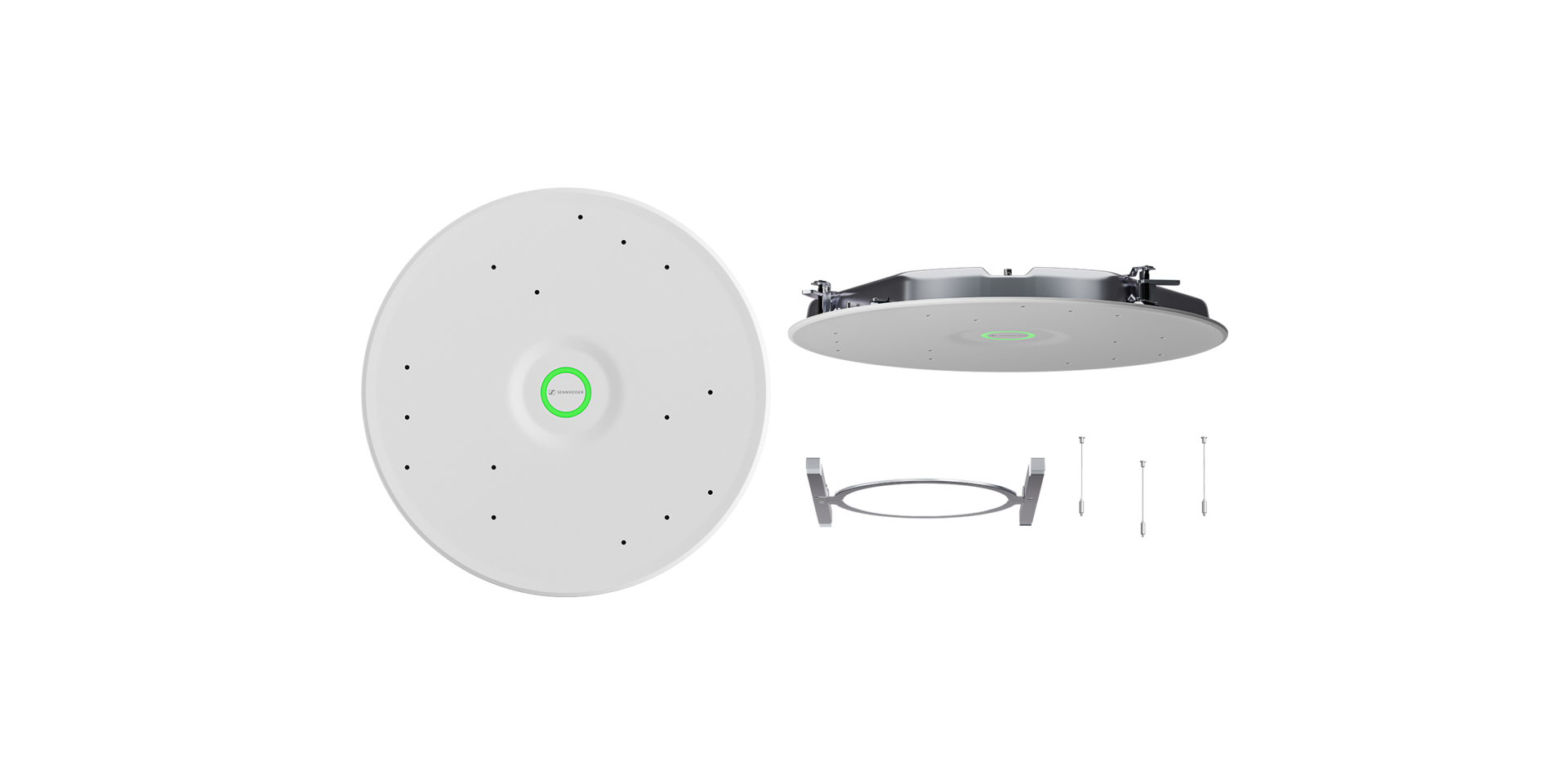

- TCC M microphone
- Front plate white
- Flush Mount Kit
- Chicago plenum connection box cover plate
- Drilling templates
- Phoenix connector
- Safety rope
- Suspension kit
