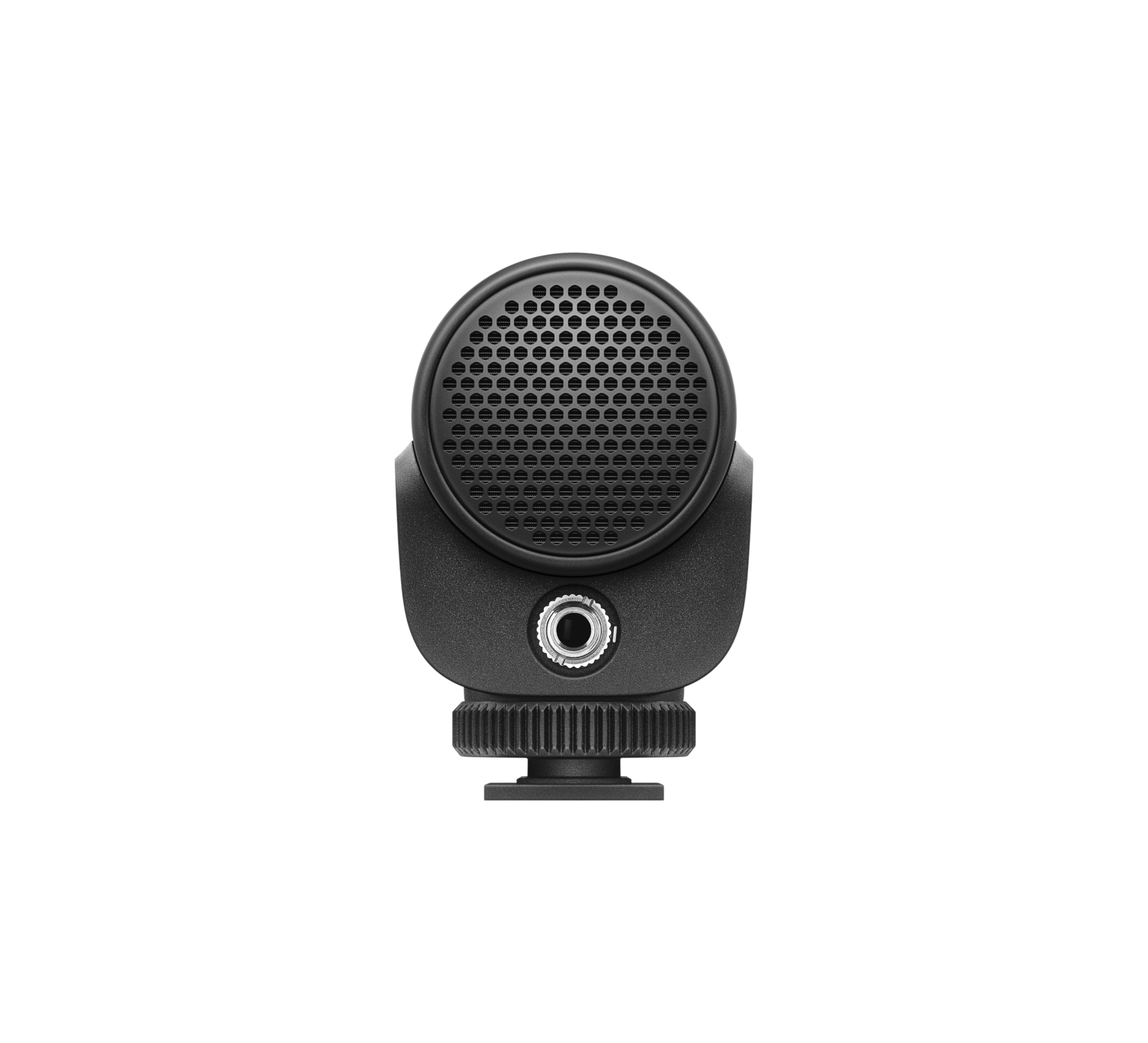

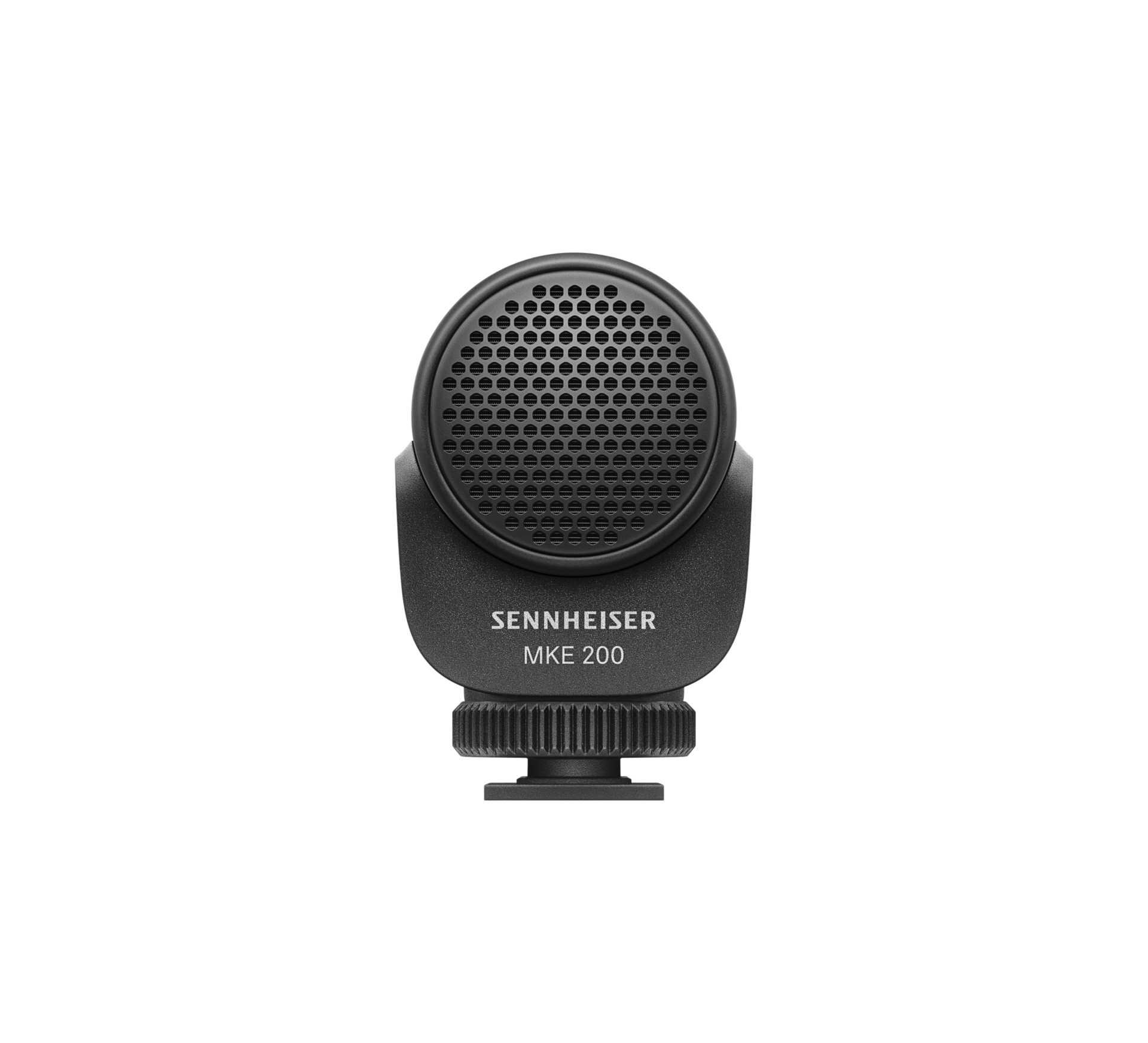

  • MKE_200_Product_Shot_cutout_front_viewChange to image slide 1
  • MKE_200_Product_Shot_cutout_back_viewChange to image slide 2
  • MKE_200_Product_Shot_cutout_camera_grey_side_leftChange to image slide 3

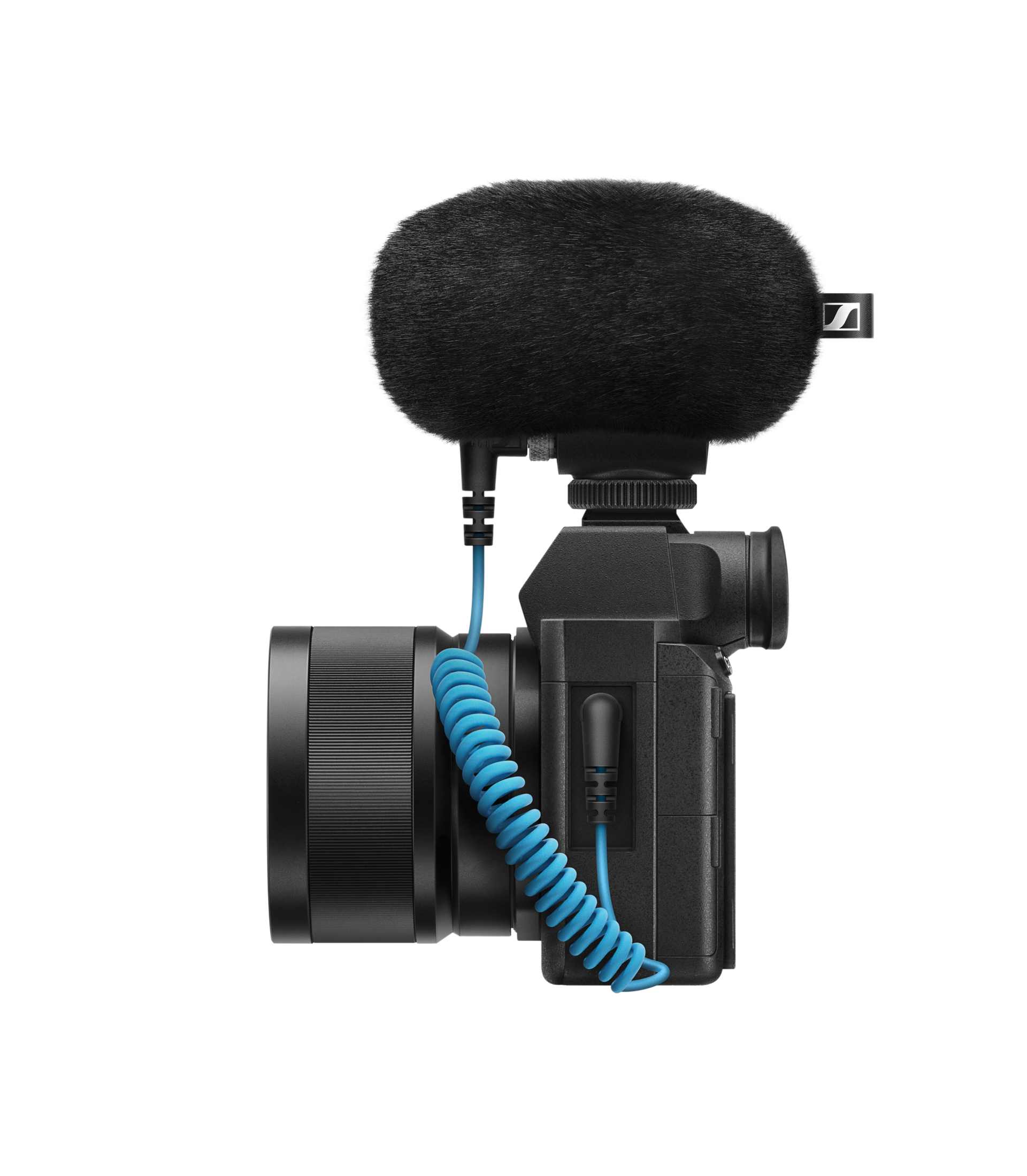

  • MKE_200_Product_Shot_cutout_camera_side_left_furry_windshieldChange to image slide 4

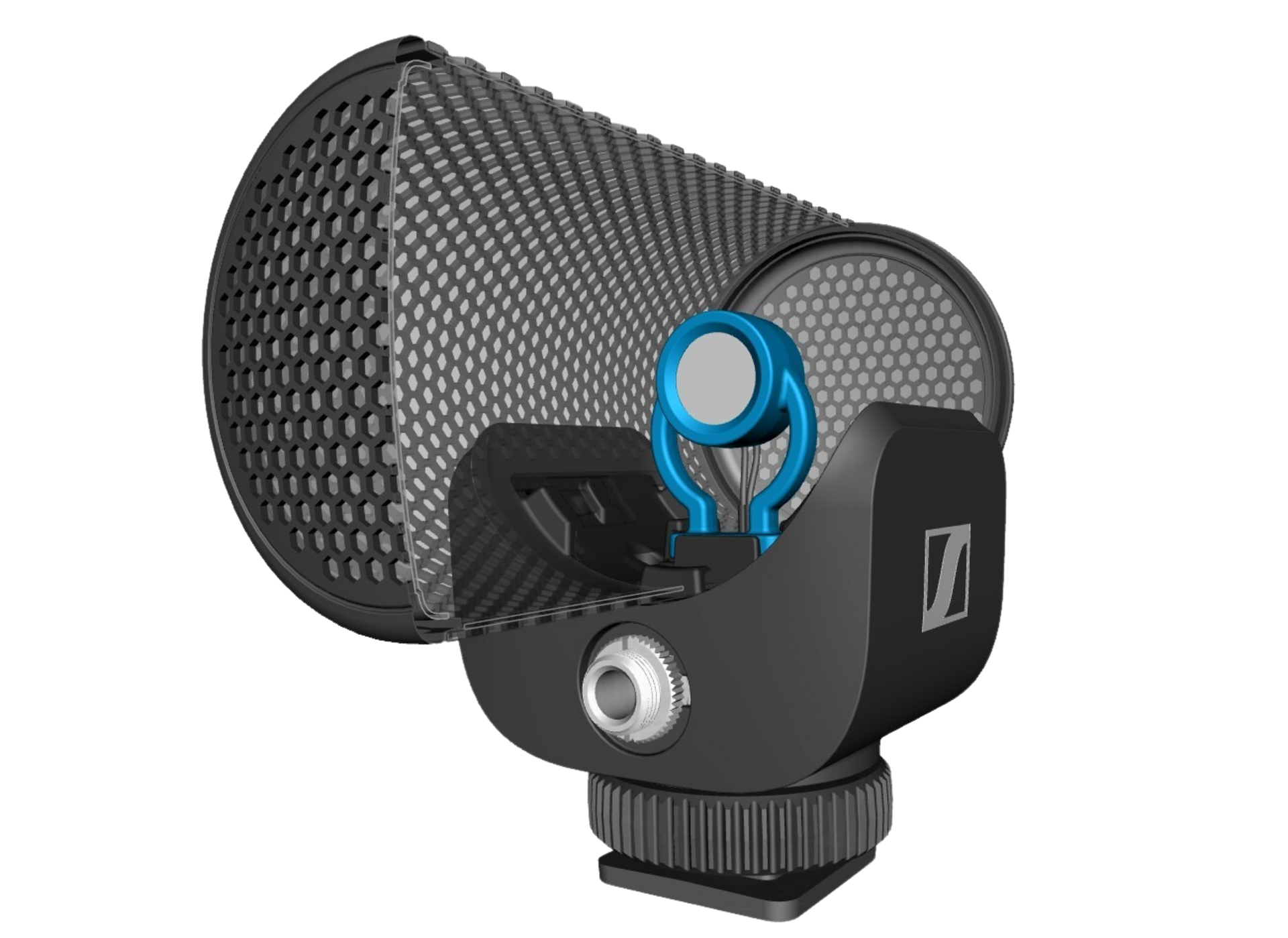

  • MKE_200_Product_Shot_cutawayChange to image slide 5
  • CL_35_TRS_Product_Shot_CutoutChange to image slide 6

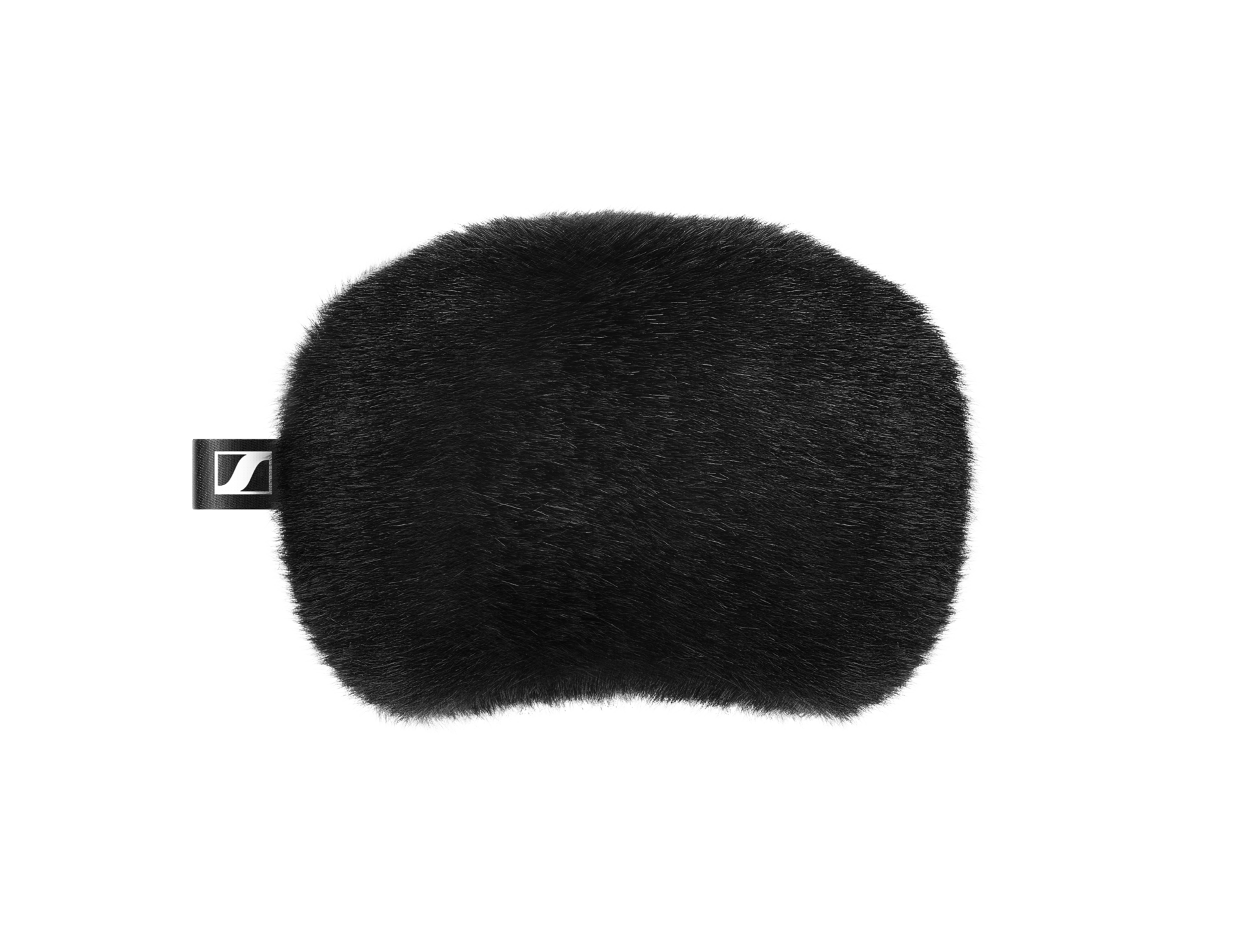

  • MZH_200_product_shot_cutoutChange to image slide 7

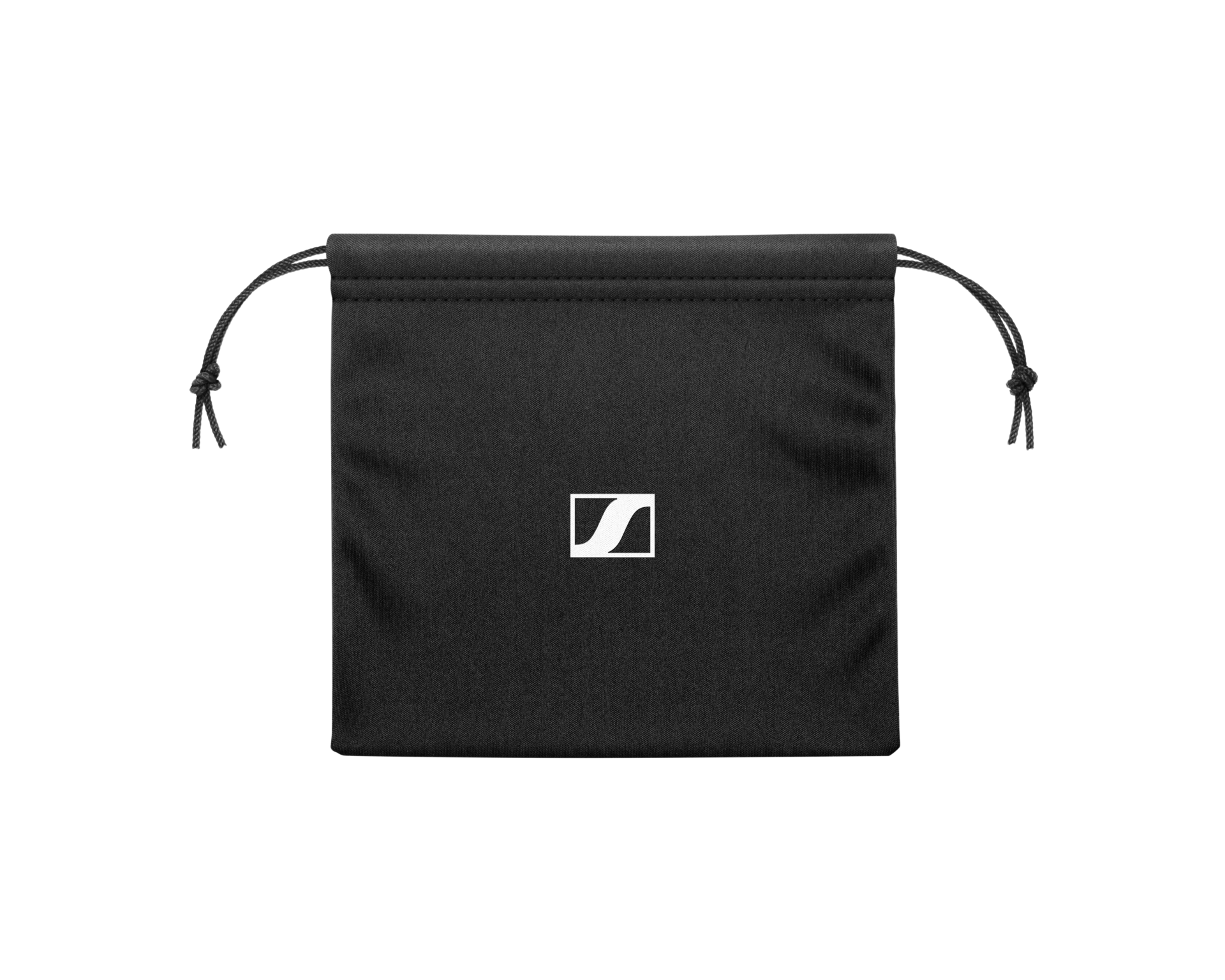

  • MKE_200_Accessories_Shot_drawstring_pouchChange to image slide 8

MKE 200

Article No. 508897

Features06

  • Directional microphone for isolated and enhanced in-camera audio
  • Compact design with sleek and stylish finish
  • Integrated wind protection and internal suspension mount to minimize handling noise
  • Interchangeable 3.5mm (1/8"") TRS and TRRS connectivity for use with DSLR and mirrorless cameras or mobile devices
  • Standard cold shoe mount for universal use
  • Battery free operation

Top Specs

  • ColorBlack
  • Dimensions69 x 60 x 39 mm
  • Weight (g)48g
  • Connection ports3.5mm locking jack
  • Max. sound pressure level120 dB
  • Polar patternSupercardioid
  • Sensitivity-33 dB V/Pa
  • Transducer principlePre-polarized Condenser

#mke200

Tech Specs

Product
  • Polar pattern
    Supercardioid
  • Transducer principle
    Pre-polarized Condenser
  • Color
    Black
Frequency Specifications
  • Frequency response
    40 to 20,000 Hz
  • Audio frequency response
    40 - 20,000 Hz
Acoustic Properties
  • Equivalent noise level (db)
    20 dB (A)
  • Pick-up pattern
    Super-cardioid
  • Max. sound pressure level
    120 dB
Connectivity
  • Connection ports
    3.5mm locking jack
  • Cable connections
    mini jack
Electrical Properties
  • Sensitivity
    -33 dB V/Pa
  • Input voltage
    2 – 10 V
Dimensions
  • Dimensions
    69 x 60 x 39 mm
  • Height (mm)
    70
  • Length (mm)
    240
  • Weight (g)
    48g
  • Width (mm)
    115
  • Product height
    39 mm (1.54")
  • Product weight (g)
    48 g (0.11 lbs)
  • Product width
    69 mm (2.72")

Downloads05

  • Safety instructions and manufacturer declarations - MKE 200
    .PDF
    ·
    633.45 KB
    Download
  • Quick Guide - MKE 200
    .PDF
    ·
    778.66 KB
    Download
  • Product specification - MKE 200
    .PDF
    ·
    272.18 KB
    Download
  • Product specification - MKE 200 Mobile Kit
    .PDF
    ·
    504.23 KB
    Download
  • EU Declaration of Conformity - MKE 200
    .PDF
    ·
    616.99 KB
    Download

What's in the box07

  • MKE 200 on-camera microphone
  • CL 35 TRS, locking TRS-TRS coiled cable
  • CL 35 TRRS, locking TRS - TRRS coiled cable
  • MZH 200 furry windshield
  • Drawstring pouch
  • Quick Guide
  • Saftey Guide
