Article No. 509156
XSW IEM EK (A)
XSW IEM EK (A)
Article No. 509156
Features08

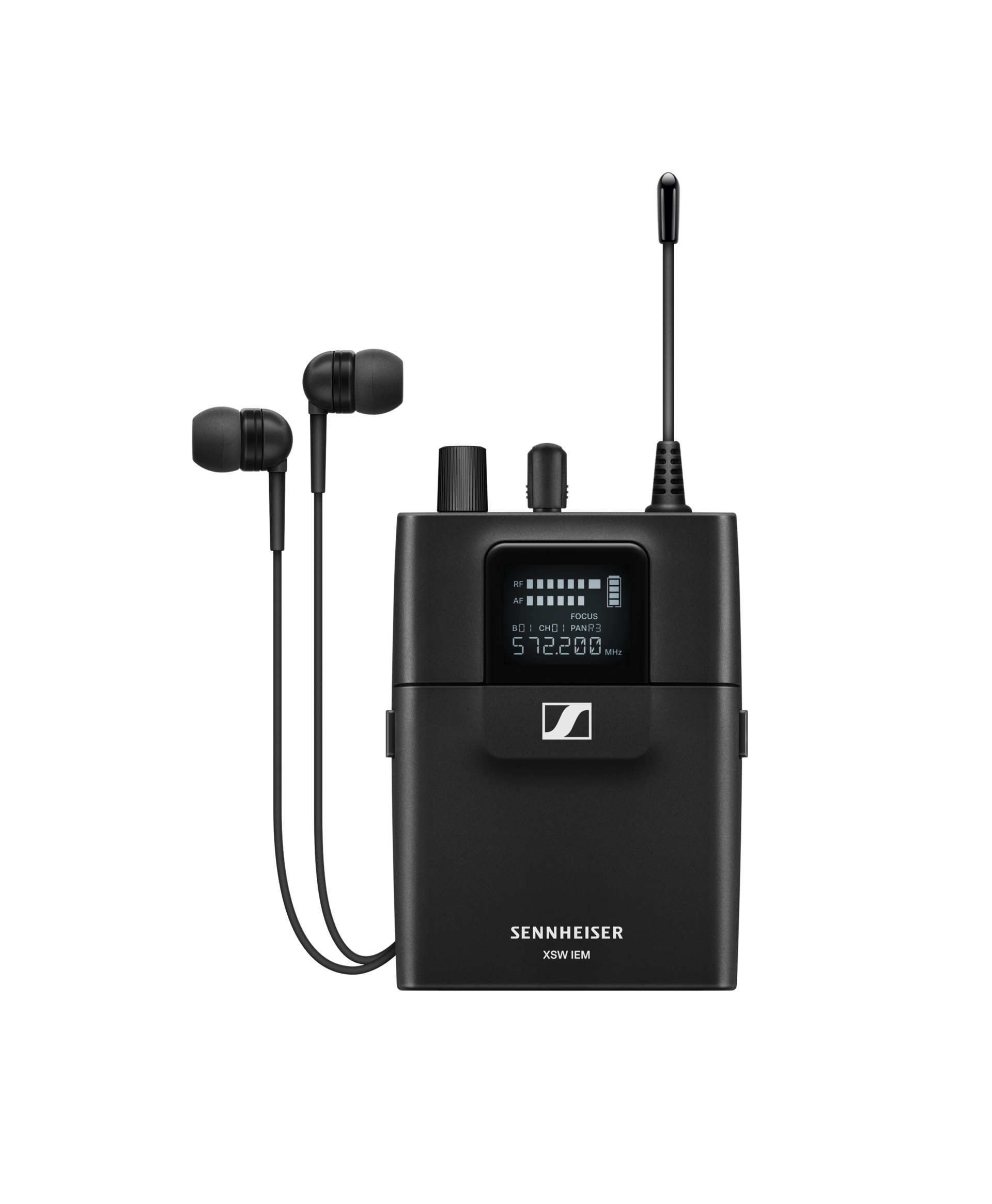

- UHF bodypack receiver to expand existing XS Wireless IEM setups

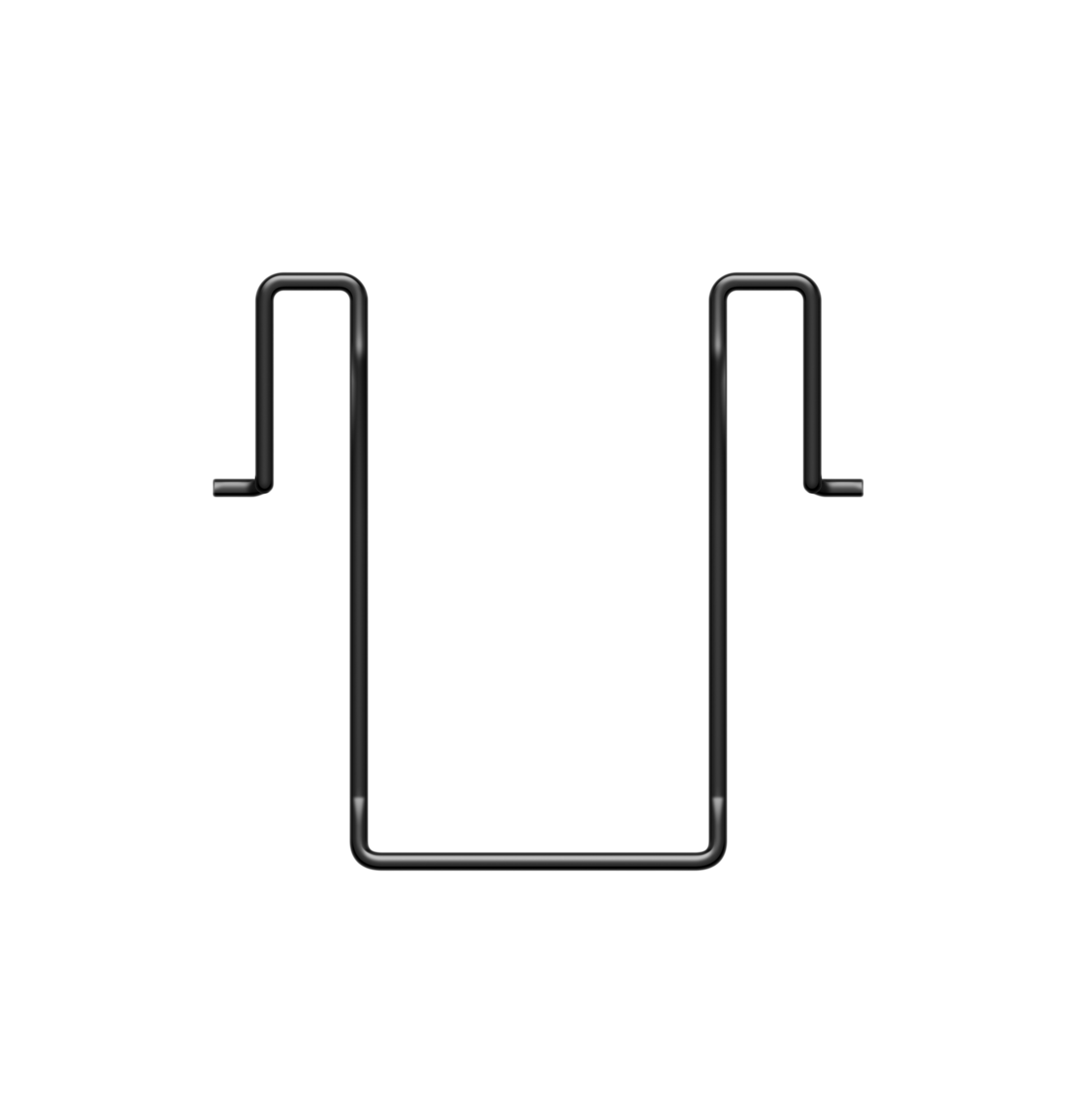

- Lightweight bodypack with rear clamp and stage-proof control panel
- Standard 3.5 mm jack plug for supplied IE 4 in-ear monitors or optional in-ear sets
- Backlit front panel and status LED for battery and link status
- Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
- Pan control for individual balance of the input channels
- Operates with 2x AA primary cells or rechargeable batteries
- Color: Black
Top Specs
- ColorBlack
- DimensionsApprox. 95 x 70 x 26 mm
- Weight (g)268
- Power consumption (Amp)Max. 200 mA
- Wearing styleIn-ear
Tech Specs
Product
- Total harmonic distortion (THD)≤ 1 %
- ColorBlack
- Wearing styleIn-ear
Frequency Specifications
- Audio frequency response (Hz)45 Hz to 15 kHz
- Audio frequency response45 Hz to 15 kHz
Acoustic Properties
- Audio output level2 x 1,25 Veff at 16 Ω
- Squelch10 μV, fixed
Connectivity
- ConnectionWireless
Ambient Conditions
- Operating temperature (C)0 °C – +40 °C (32 °F – 104 °F)
Battery & Power
- Battery capacity (Ah)2.3
- Battery count2
- Battery includedY
- Battery voltage (V)1.5
- Power consumption (Amp)Max. 200 mA
- Battery operating time (h)Approx. 6 hrs
Electrical Properties
- Input voltage100 to 240 V~200mA, 50/60 Hz
- Output voltage+12 V DC
- Output power30 mW
Dimensions
- DimensionsApprox. 95 x 70 x 26 mm
- Height (mm)33
- Length (mm)185
- Weight (g)268
- Width (mm)125
- Product height70
- Product length95
- Product weight (g)110
- Product width26
Downloads08
What's in the box03
- XSW IEM EK Stereo Receiver
- IE 4 In-ear headphones
- 2 AA batteries
