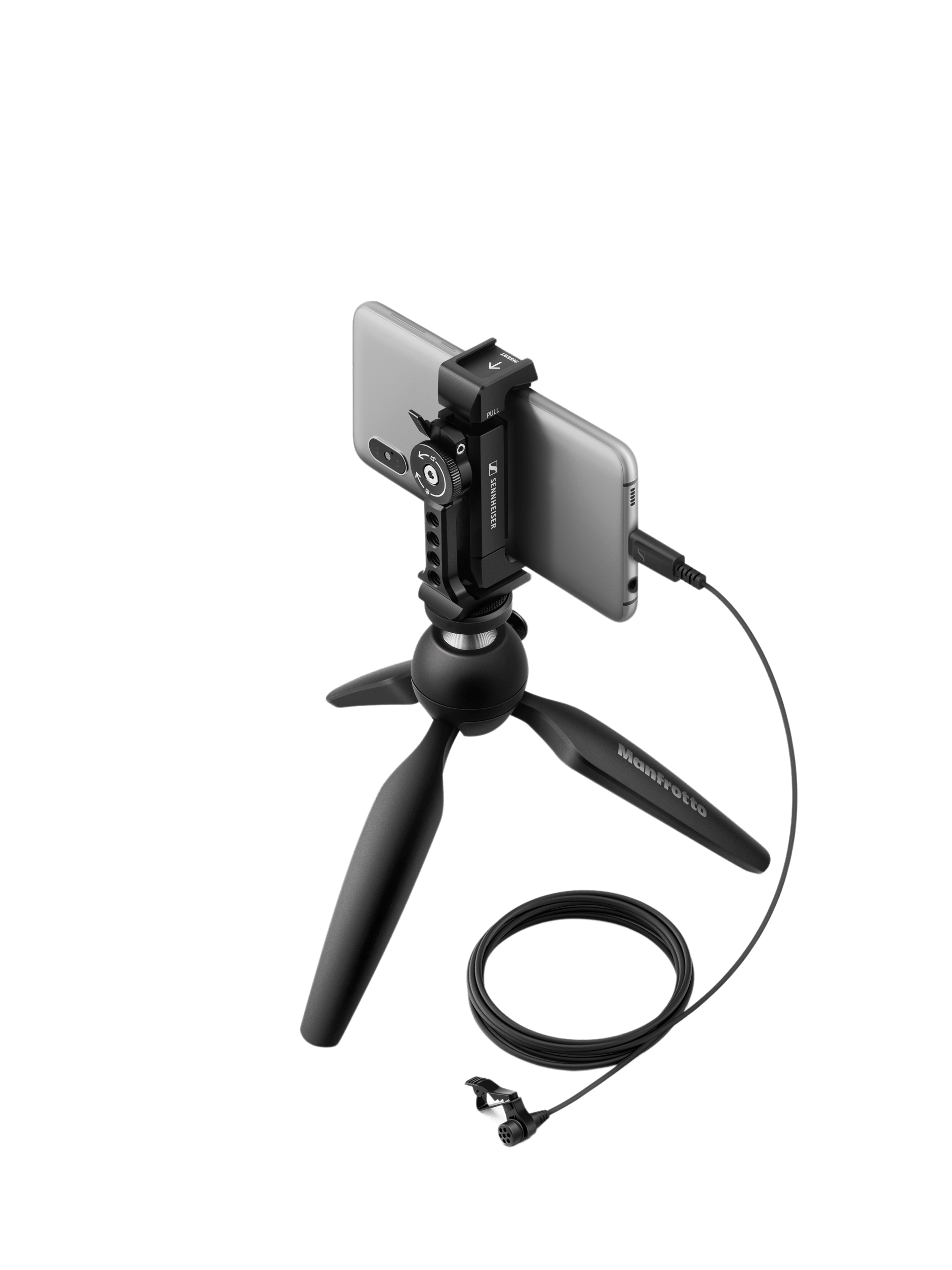

XS Lav USB-C Mobile Kit

Article No. 509259

Features05

  • Mobile Kit ideal for vloggers and content creators on the move
  • XS Lav features an omnidirectional microphone capsule for a clear, natural sound
  • Smartphone Clamp with cold shoe mount offers portrait or landscape orientation
  • Manfrotto PIXI Mini Tripod features push-button locking ball head for desired placement
  • Durably constructed components built to withstand daily use

Top Specs

  • Weight (g)17 g
  • Max. sound pressure level110 dB
  • Polar patternOmnidirectional
  • Transducer principlePre-polarized condenser microphone

Tech Specs

Product
  • Polar pattern
    Omnidirectional
  • Transducer principle
    Pre-polarized condenser microphone
Frequency Specifications
  • Frequency response
    70 to 18,000 Hz
  • Audio frequency response
    70 to 18,000 Hz
Acoustic Properties
  • Equivalent noise level (db)
    32 dB
  • Max. sound pressure level
    110 dB
  • Sampling rates
    8, 16, 32, 44.1, 48 kHz
  • Pick-up pattern
    Omni-directional
Technology
  • Supported operating systems
    Windows_10_later
Dimensions
  • Height (mm)
    70
  • Length (mm)
    240
  • Weight (g)
    17 g
  • Width (mm)
    115
  • Product height
    70
  • Product weight (g)
    17 g
  • Product width
    115
  • Cable length (m)
    2.0 m

Downloads06

  • Safety instructions and manufacturer declarations - XS Lav Mobile / XS Lav USB-C
    .PDF
    ·
    806.61 KB
    Download
  • Instruction manual - Mobile Kit: PIXI Mini Tripod / Smartphone Clamp
    .PDF
    ·
    743.83 KB
    Download
  • Product specification - XS Lav USB-C
    .PDF
    ·
    260.71 KB
    Download
  • Product specification - XS Lav USB-C Mobile Kit
    .PDF
    ·
    464.75 KB
    Download
  • Quick Guide - XS Lav USB-C
    .PDF
    ·
    1.23 MB
    Download
  • EU Declaration of Conformity - XS LAV Mobile / XS Lav USB-C
    .PDF
    ·
    753.25 KB
    Download

What's in the box06

  • Clip-on microphone with USB-C connector and 2 m (6.6’) cable
  • Manfrotto PIXI Mini Tripod
  • Sennheiser Smartphone Clamp
  • Microphone clip
  • XS Lav Foam Windscreen
  • Storage pouch
