Spectera

The world's first wideband, bidirectional wireless ecosystem

Overview

Innovation sounds like this

The future of wireless pro audio is here — and it’s bidirectional. Featuring up to 64 channels (32 in/ 32 out) in a single unit, Spectera is the world's first wideband, bidirectional digital wireless ecosystem, providing audio professionals with unparalleled capability and flexibility. Spectera’s 11 Audio Link modes give you unprecedented control of latency, audio quality and more for each link, while its bidirectional bodypacks manage both in-ear monitor and mic/line signals simultaneously. 

Play

Components⁰⁸

Features

Unified Wireless Control

Bidirectional wireless ecosystem; data and audio control in a single RF carrier for all components

Bidirectionality

Bidirectional SEK bodypack manages both IEM and mic/line signals simultaneously

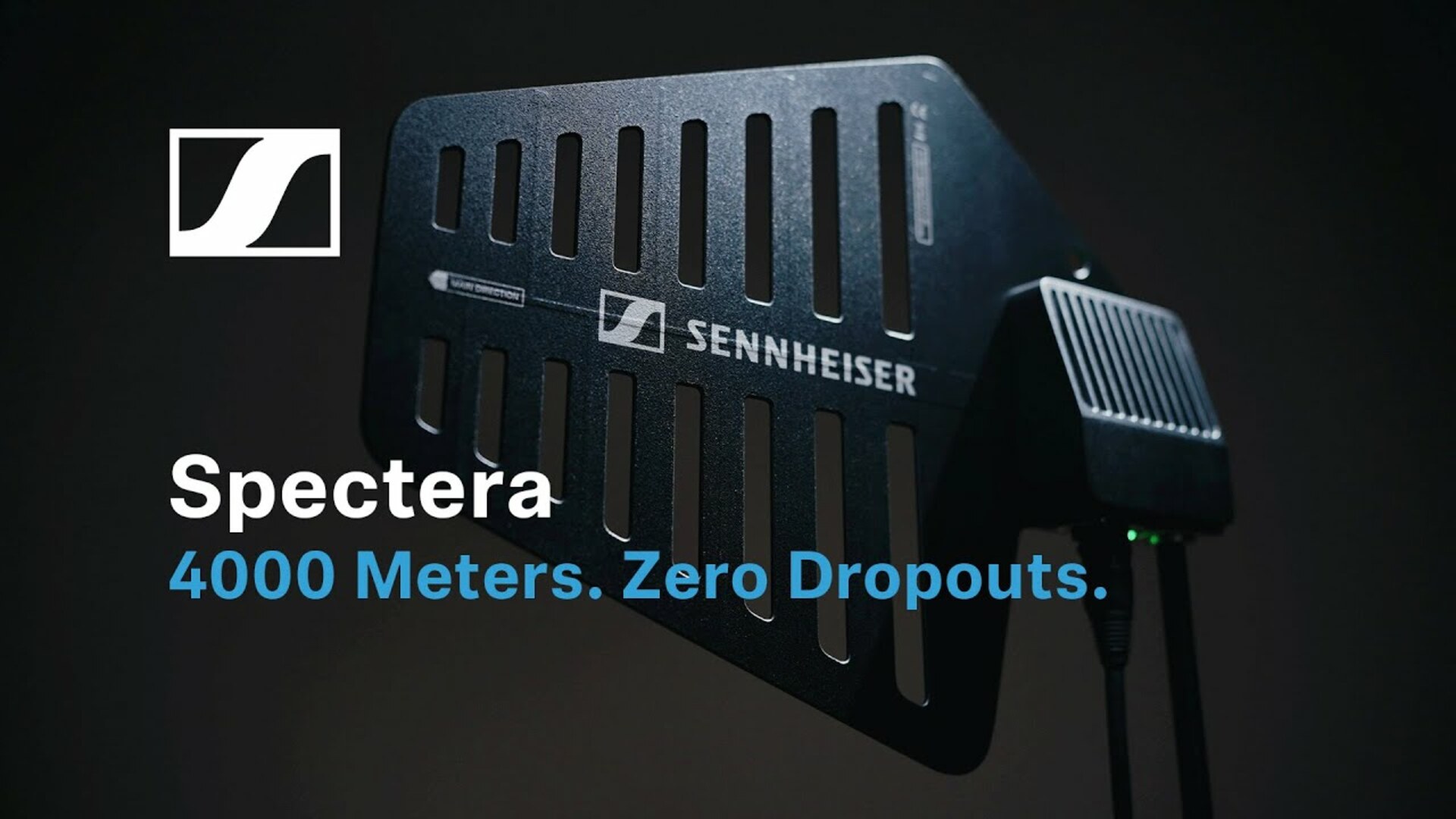

Transceiving Antennas

Transceiving antennas manage IEM signals, mic/line signals, and data simultaneously Continuous bidirectional communication for full remote control and monitoring of SEK bodypack links, IEM volume, audio level and settings, RF health, battery status, and more

Single RF Carrier

Innovative Sennheiser WMAS technology accommodates an entire production in a single wideband RF carrier (6/8 MHz)

Integrated RF Components

Integrated RF components in DAD antenna eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters

Enhanced Dropout Resistance

Vastly more resistant to dropouts from RF fading than traditional narrowband systems via innovative Sennheiser WMAS technology equal to 40x diversity (8 MHz) / 30x diversity (6 MHz)

Intuitive Workflow

Intuitive workflow via LinkDesk user interface: plan and preconfigure from anywhere with LinkDesk virtual setup for Windows and Mac

64-Channel Base Station

1 RU base station provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz)

Unified Wireless Control
Bidirectional wireless ecosystem; data and audio control in a single RF carrier for all components
Bidirectionality
Bidirectional SEK bodypack manages both IEM and mic/line signals simultaneously
Transceiving Antennas
Transceiving antennas manage IEM signals, mic/line signals, and data simultaneously Continuous bidirectional communication for full remote control and monitoring of SEK bodypack links, IEM volume, audio level and settings, RF health, battery status, and more
Single RF Carrier
Innovative Sennheiser WMAS technology accommodates an entire production in a single wideband RF carrier (6/8 MHz)
Integrated RF Components
Integrated RF components in DAD antenna eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
Enhanced Dropout Resistance
Vastly more resistant to dropouts from RF fading than traditional narrowband systems via innovative Sennheiser WMAS technology equal to 40x diversity (8 MHz) / 30x diversity (6 MHz)
Intuitive Workflow
Intuitive workflow via LinkDesk user interface: plan and preconfigure from anywhere with LinkDesk virtual setup for Windows and Mac
64-Channel Base Station
1 RU base station provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz)

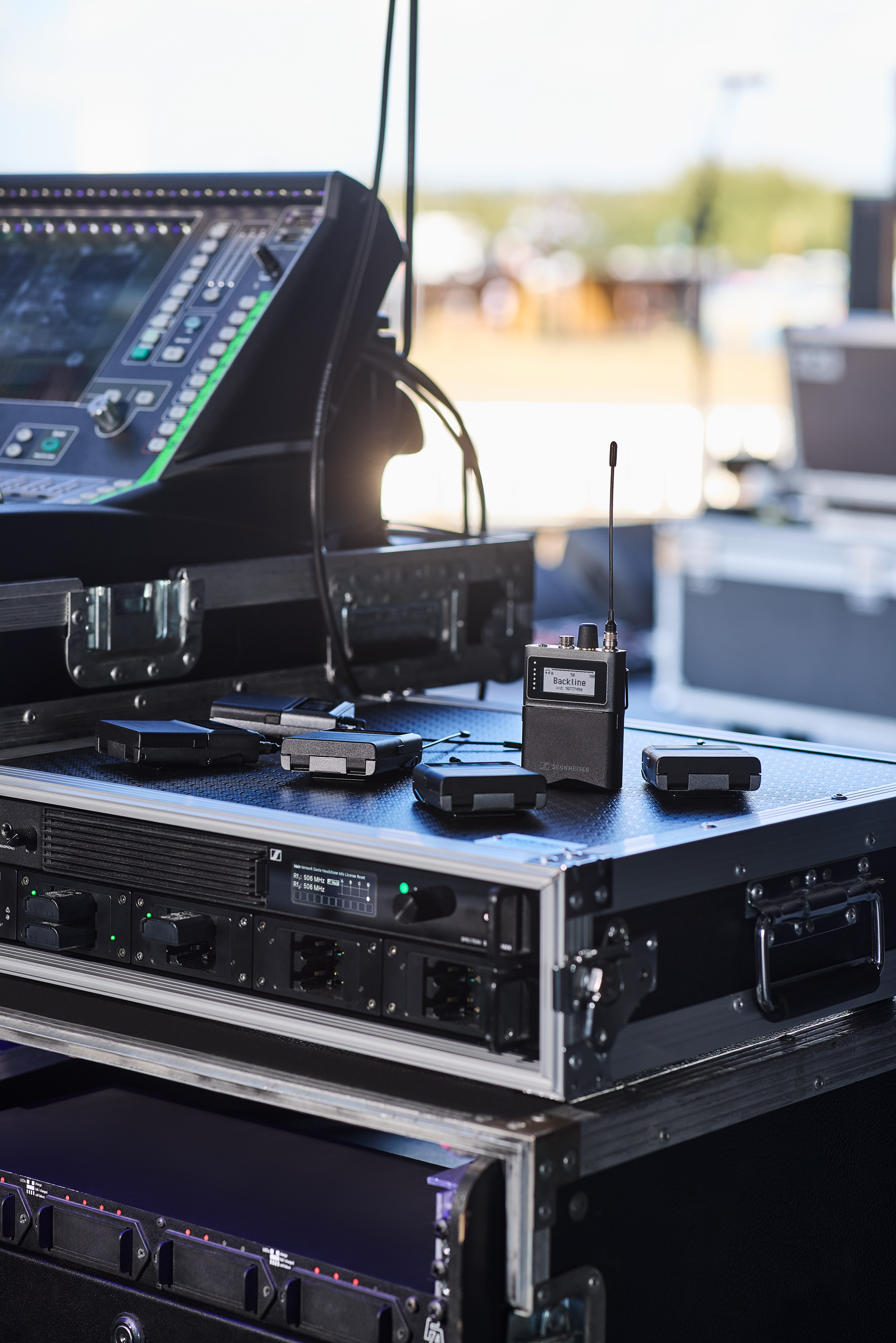

Evolving Ecosystem

Evolving hardware/software ecosystem; future releases will include SKM handheld mic, cascade port activation, plus a variety of innovative hardware and software updates 

1 / 5

Evolving Ecosystem

Evolving Ecosystem

Evolving hardware/software ecosystem; future releases will include SKM handheld mic, cascade port activation, plus a variety of innovative hardware and software updates 

Evolving Ecosystem1 / 5

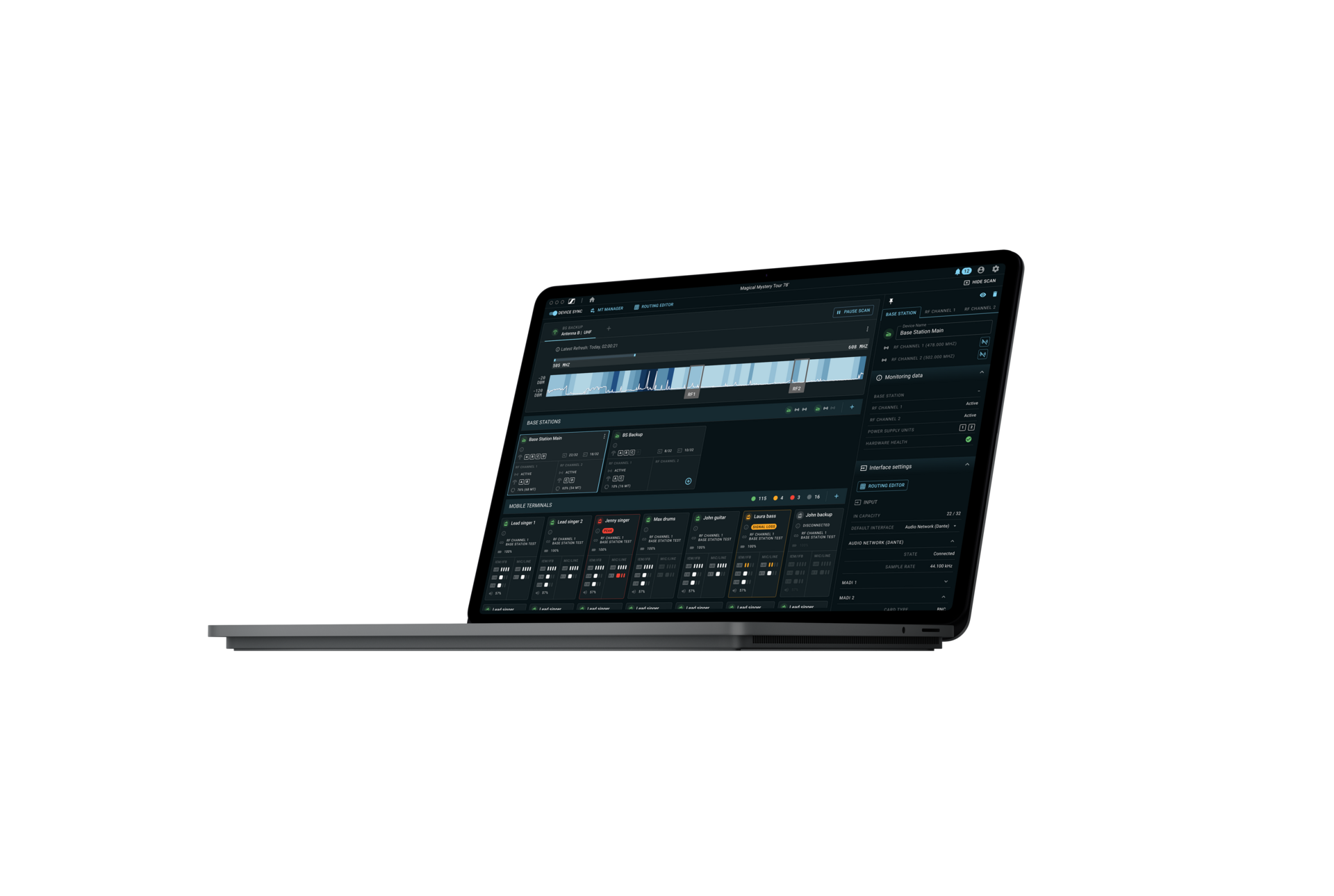

Audio Link Modes: Control Quality and Latency

11 Audio Link modes allow for selectable control of audio quality, latency, channel count, and operating range

Audio Link Modes: Control Quality and Latency2 / 5

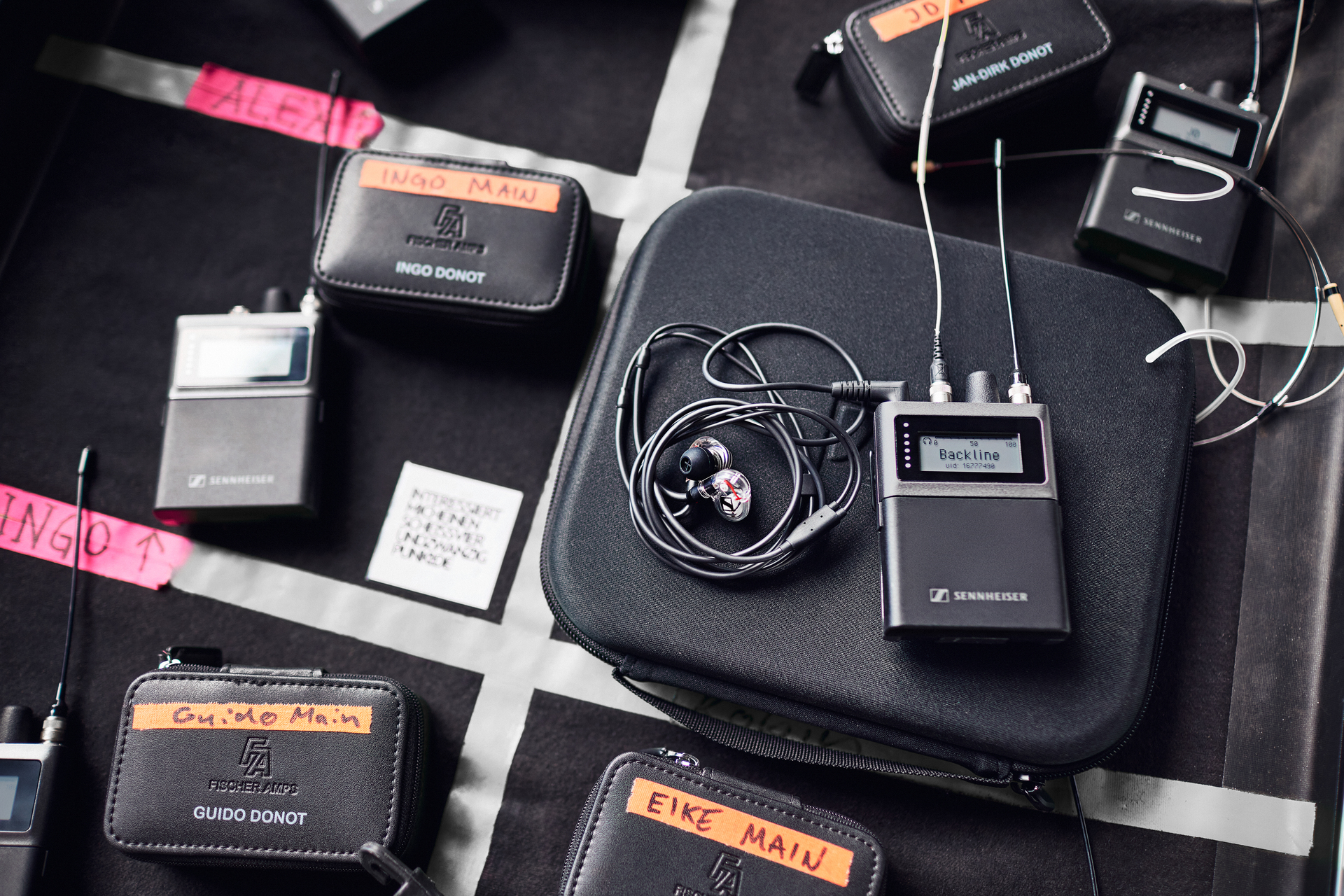

Low Latency Audio

Signature Sennheiser digital audio quality across the entire system — including IEMs — with latency down to .7 milliseconds  

Low Latency Audio3 / 5
Comprehensive Redundancy
Redundancy throughout, including power supply, Dante, MADI (optional), and up to four antennas 
Comprehensive Redundancy4 / 5
Hassle-Free Coordination
Sennheiser WMAS technology eliminates the hassle and time of frequency coordination
Hassle-Free Coordination5 / 5

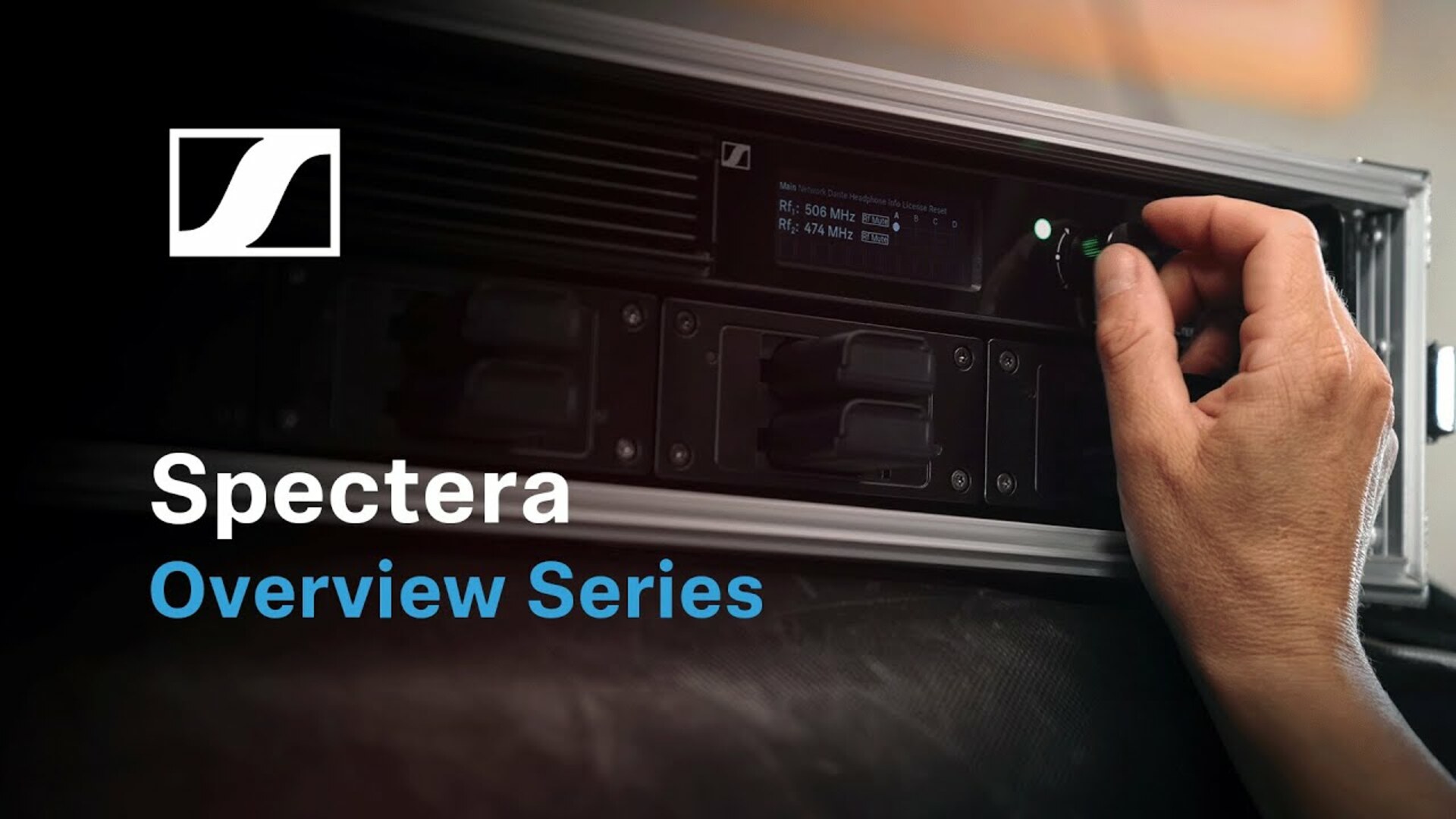

Up to 64 Channels in a Single Rack Unit

Spectera’s space-saving 1 RU base station features flexible digital I/O with redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Spectera’s transceiving antennas manage IEM signals, mic/line signals, and data simultaneously and up to four antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity. Spectera’s simultaneous 32 I/O enables advanced flexibility for wireless mic, instruments, and in-ear monitoring applications in a single system. Configurations are completely flexible and can include up to 32 mic/line channels and 16 stereo IEMs serving your talent on stage or 32 interruptible foldback (IFB) across your crew.

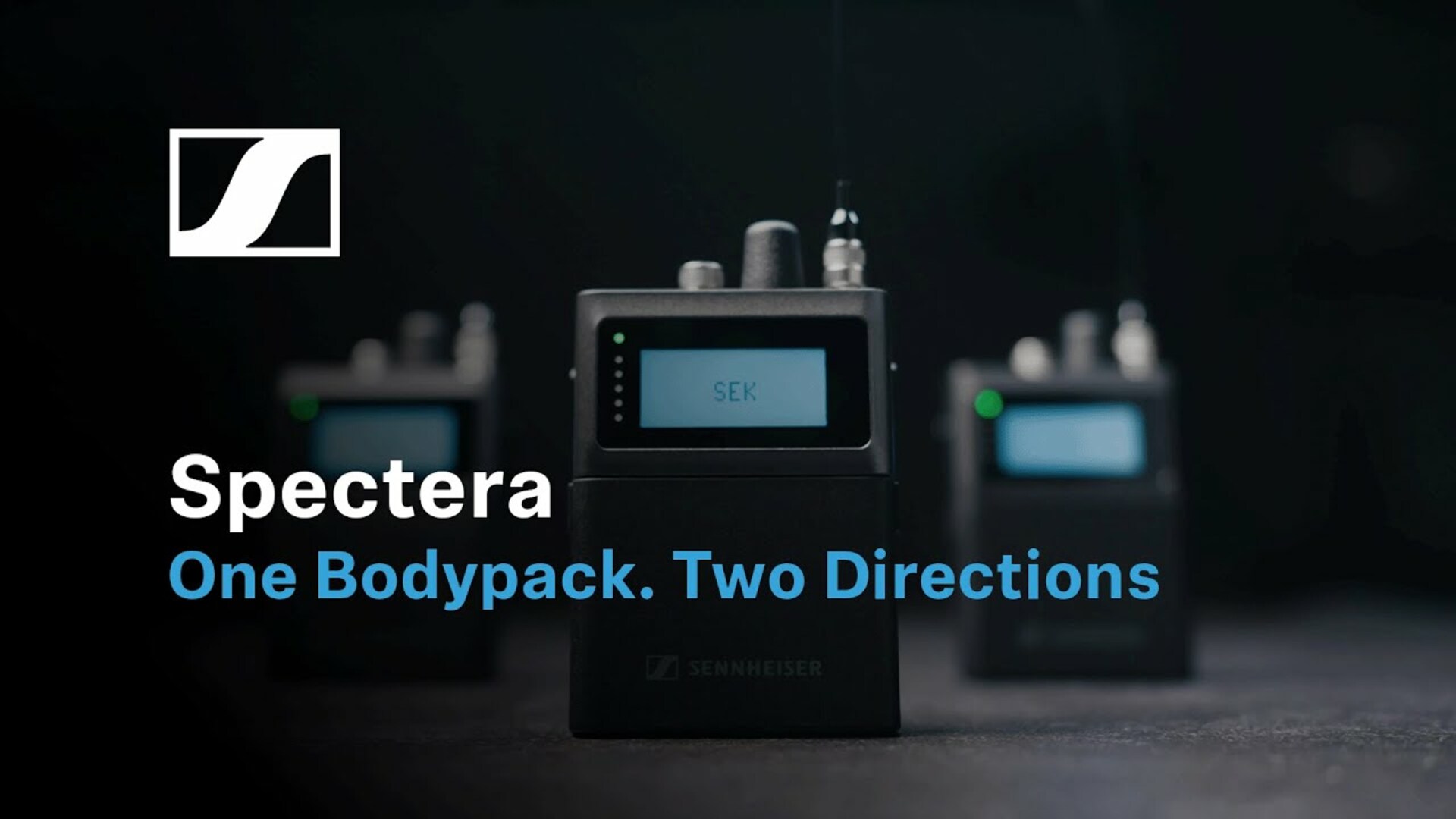

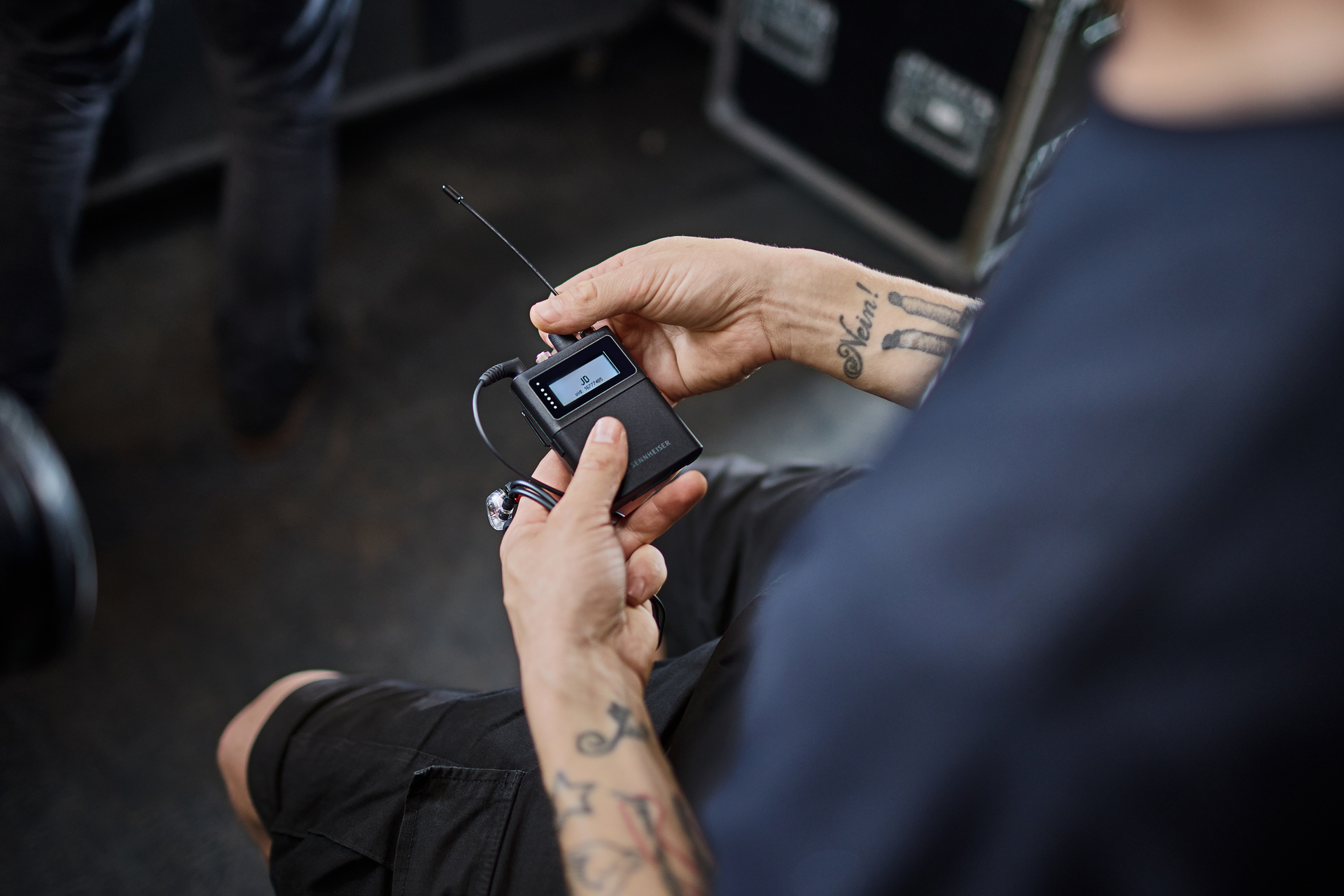

Advanced Bidirectional Bodypacks

With Spectera’s bidirectional bodypacks, you have far more control and far fewer blind spots. Each Spectera SEK bodypack manages both an in-ear monitor and a mic/line input signal simultaneously. And with LinkDesk software, you have a full remote control and monitoring of everything: IEM volume, audio level and settings, RF health, battery status, and more. So, you can spend more time in control and less time managing components and chasing surprises. For in-ear monitors, Spectera delivers unprecedented RF performance and stability — equivalent to digital wireless microphones. With Spectera, you get stunning IEM clarity and accuracy with ultra-low latency down to 0.7 milliseconds.

Revolutionary Reliability

At the heart of Spectera is Sennheiser’s remarkable wireless multichannel audio technology (WMAS) and its unique modulation and multiplexing capabilities, which make Spectera vastly more resistant to dropouts and RF fading than narrowband systems. Spectera also features built-in redundancy where it matters most: redundant power supplies, redundant Dante and optional redundant MADI audio I/O, and the ability to connect multiple antennas for redundancy, additional zone coverage, or additional spectrum capacity. 

Connect with Our Experts

WMAS | Wireless Multi-Channel Audio Systems

With their broadband audio transmission, Wireless Multi-Channel Audio Systems (WMAS) open up exciting perspectives for digital wireless microphones and digital in-ear monitoring systems in live audio events as well as theatre and broadcasting installations.

Learn more

Concert stage setup with lighting and sound equipment in a large indoor venue.

Downloads

Technical Drawings

Technical Drawing - Spectera Base Station (pdf)
.PDF
·
741.82 KB
Download
Technical Drawing - Spectera Base Station (dxf)
.DXF
·
11.78 MB
Download
Technical Drawing - Spectera Base Station (stp)
.STP
·
48.32 MB
Download
Technical Drawing - Spectera DAD Antenna UHF (stp)
.STP
·
15.11 MB
Download
Technical Drawing - Spectera DAD Antenna UHF (dxf)
.DXF
·
8.62 MB
Download
Technical Drawing - Spectera DAD Antenna UHF (pdf)
.PDF
·
398.47 KB
Download
Technical Drawing - Spectera SEK UHF 1G4 (pdf)
.PDF
·
242.86 KB
Download
Technical Drawing - Spectera SEK UHF 1G4 (dxf)
.DXF
·
6.47 MB
Download
Technical Drawing - Spectera SEK UHF (stp)
.STP
·
9.19 MB
Download
Technical Drawing - Spectera SEK 1G4 (stp)
.STP
·
9.19 MB
Download
SPECTERA Systems Rev 1_0-Scenario 1
.PDF
·
630.03 KB
Download
SPECTERA Systems Rev 1_0-Scenario 2
.PDF
·
930.67 KB
Download
SPECTERA Systems Rev 1_0-Scenario 3
.PDF
·
901.33 KB
Download
SPECTERA Systems Rev 1_0-Scenario 4
.PDF
·
673.41 KB
Download
SPECTERA Systems Rev 1_0-Scenario 5
.PDF
·
787.79 KB
Download
SPECTERA Systems Rev 1_0-Scenario 6
.PDF
·
1.2 MB
Download
SPECTERA Systems Rev 1_0-Scenario 7
.PDF
·
747.67 KB
Download
SPECTERA Systems Rev 1_0-Scenario 8
.PDF
·
974.62 KB
Download
SPECTERA Systems Rev 1_0 Scenarios 1-8
.PDF
·
5.37 MB
Download

Others

SPECTERA Base Station Product specification (EN)
.PDF
·
412.86 KB
Download
SPECTERA Base Station Spec Sheet (DE)
.PDF
·
413.24 KB
Download
SPECTERA Base Station Spec Sheet (FR)
.PDF
·
413.46 KB
Download
SPECTERA Base Station Spec Sheet (ES)
.PDF
·
413.23 KB
Download
SPECTERA Base Station Spec Sheet (PT)
.PDF
·
413.15 KB
Download
SPECTERA SEK Spec Sheet (EN)
.PDF
·
203.24 KB
Download
SPECTERA SEK Spec Sheet (DE)
.PDF
·
205.69 KB
Download
SPECTERA SEK Spec Sheet (FR)
.PDF
·
206.11 KB
Download
SPECTERA SEK Spec Sheet (ES)
.PDF
·
205.7 KB
Download
SPECTERA SEK Spec Sheet (PT)
.PDF
·
205.8 KB
Download
SPECTERA DAD Spec Sheet (EN)
.PDF
·
311.49 KB
Download
SPECTERA DAD Spec Sheet (DE)
.PDF
·
312.28 KB
Download
SPECTERA DAD Antenna Spec Sheet (FR)
.PDF
·
312 KB
Download
SPECTERA DAD Antenna Spec Sheet (ES)
.PDF
·
311.78 KB
Download
SPECTERA DAD Antenna Spec Sheet (PT)
.PDF
·
311.79 KB
Download
