• TCCM_Accessories_Wire_Mount_Only
  • TCCM_Accessories_Wire_Mount
Article No. 700237

TeamConnect Ceiling Medium SK

Overview

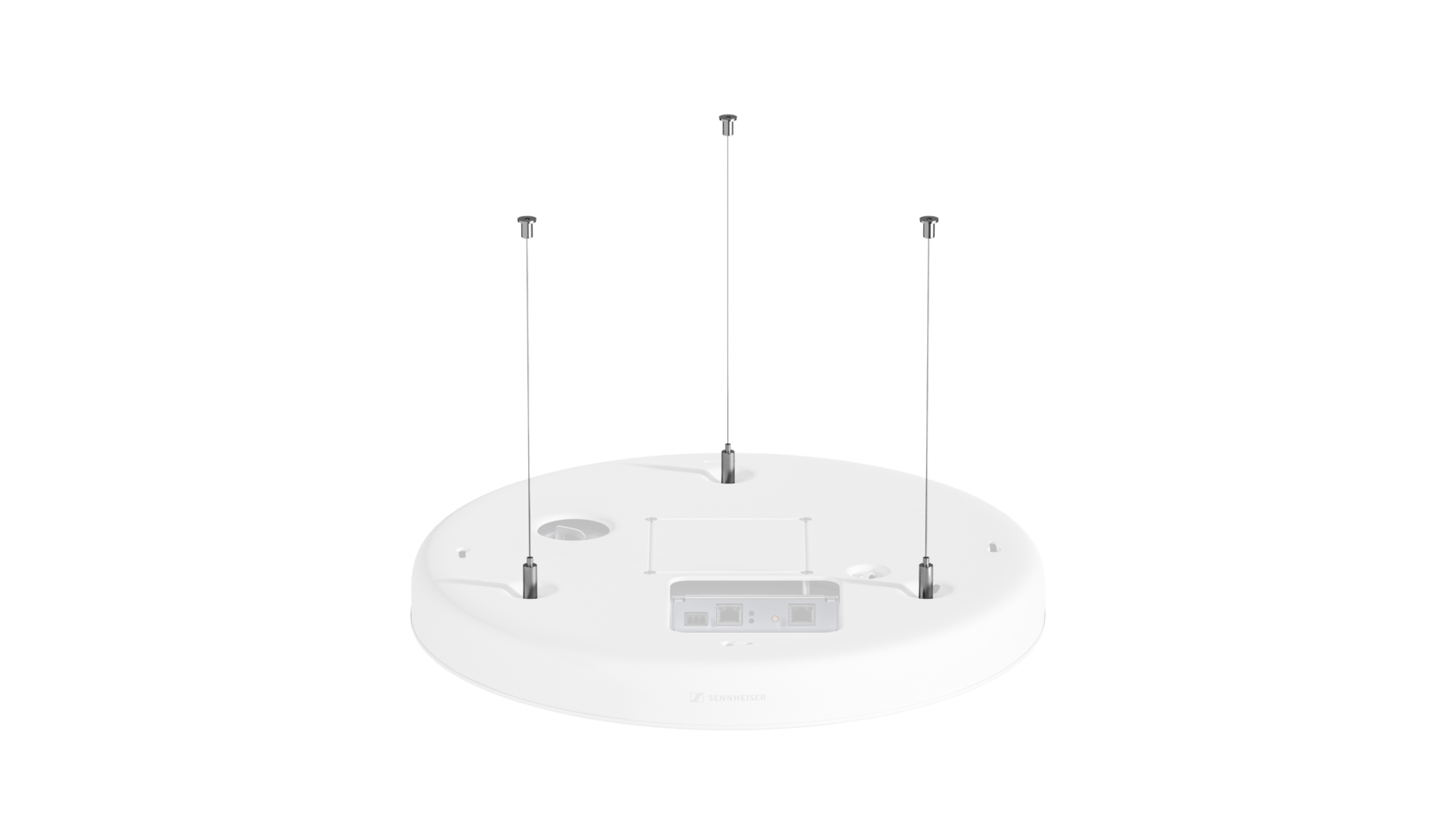

Ceiling Mic M Suspension Kit

The TCC M SK Ceiling Mic Suspension kit is for use when installing the TeamConnect Ceiling Medium in high-ceilinged rooms. It consists of three 16.4 ft (5m) steel cables that can be adjusted to fit the required installation height.

Top Specs

  • Weight (g)205
Tech Specs
Product
  • Warranty AMER (years)
    5
Dimensions
  • Height (mm)
    19
  • Length (mm)
    141
  • Weight (g)
    205
  • Width (mm)
    141
Downloads17
  • Safety Guide - TeamConnect Ceiling Medium
    .PDF
    ·
    1.27 MB
    Download
  • Outline Dimensions TeamConnect Ceiling Medium TCC M-SK (DWG)
    .DWG
    ·
    2.37 MB
    Download
  • Outline Dimensions TeamConnect Ceiling Medium TCC M-SK (DXF)
    .DXF
    ·
    8.36 MB
    Download
  • Outline Dimensions TeamConnect Ceiling Medium TCC M-SK (PDF)
    .PDF
    ·
    312.42 KB
    Download
  • TCCM - Letter of Volatility
    .PDF
    ·
    95.46 KB
    Download
  • Crestron Module TeamConnect Ceiling M
    .ZIP
    ·
    24.33 MB
    Download
  • Q-Sys control plug-in TeamConnect Ceiling M (V 1.0.0)
    .QPLUG
    ·
    129.93 KB
    Download
  • 3D model TeamConnect Ceiling Medium TCC M-SK (STP)
    .STP
    ·
    25.05 MB
    Download
  • TCCM - Drilling Template (DWG)
    .DWG
    ·
    1.03 MB
    Download
  • TCCM - Drilling Template (DXF)
    .DXF
    ·
    3.69 MB
    Download
  • Architect's specification for TCC M
    .PDF
    ·
    46.66 KB
    Download
  • Compliance Sheet - TeamConnect Ceiling Medium
    .PDF
    ·
    1.26 MB
    Download
  • Mounting Guide - TeamConnect Ceiling Medium
    .PDF
    ·
    2.3 MB
    Download
  • Quick Guide - TeamConnect Ceiling Medium
    .PDF
    ·
    1.06 MB
    Download
  • Architect's specification for TCC M
    .PDF
    ·
    52.66 KB
    Download
  • Architect's specification for TCC M
    .PDF
    ·
    51.26 KB
    Download
  • Architect's specification for TCC M
    .PDF
    ·
    51.94 KB
    Download
What's in the box03
  • 3 x Ceiling installation threads
  • 3 x 16.4ft / 5m length steel cables
  • 3 x Ceiling housing threads
