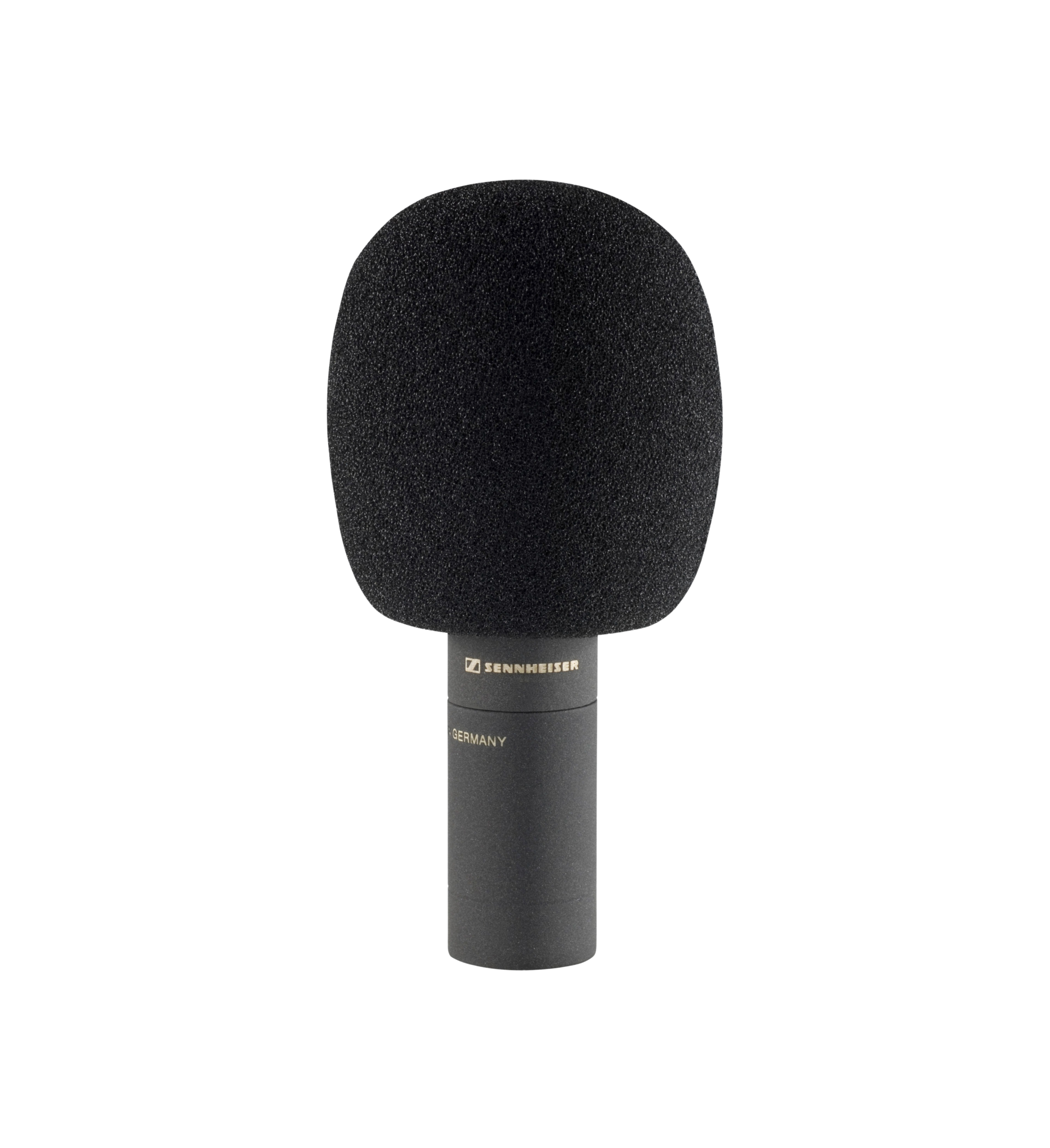

MKH 8050

Article No. 506291

Super-cardioid microphone. Perfect for recording soloists, large instruments like the grand piano but also orchestras. Balanced frequency response within the pick-up pattern. Absolute acoustical separation of instruments.

The super-cardioid MKH 8050 will give higher attenuation of off-axis sound from the side than its cardioid sister model. It is a good choice for recording soloists, where the requirements for lateral acoustic separation are higher.

Features⁰⁸

Super-cardioid pick-up pattern
Modular design
Wide frequency response 30 to 50.000 Hz
Symmetrical transducer with 2 backplates providing extremly low distortion
Extremly low inherent self-noise
Accurate directional pattern
Non reflective Nextel coating
Provides optimum separation of instrumentss

Top Specs

DimensionsØ 19 mm, L 41 mm (74 mm with XLR module)
Weight (g)25 g (55 g with XLR module)
Audio outputXLR-3M balanced, transformerless, floating
Polar patternSupercardioid
Transducer principleRF condenser microphone

Tech Specs

Product

Polar pattern
Supercardioid
Transducer principle
RF condenser microphone

Frequency Specifications

Frequency response
30 - 50000 Hz
Audio frequency response
30 to 50000 Hz

Acoustic Properties

Equivalent noise level (db)
13 dB(A)
Pick-up pattern
super-cardioid

Inputs/Outputs

Audio output
XLR-3M balanced, transformerless, floating

Battery & Power

Phantom powering
48 V +/- 4 V

Electrical Properties

Nominal impedance
25 Ω
Min. terminating impedance
1000 Ω

Dimensions

Dimensions
Ø 19 mm, L 41 mm (74 mm with XLR module)
Height (mm)
82
Length (mm)
245
Weight (g)
25 g (55 g with XLR module)
Width (mm)
170
Product height
82
Product weight (g)
25 g (55 g with XLR module)
Product width
170

Downloads⁰⁶

Others

MKH 8000 Series Microphone and accessories overview
.PDF
·
1.84 MB
Download
Bedienungsanleitung MKH 8050
.PDF
·
601.84 KB
Download
Safety instructions MKH 8020, 8040, 8050, 8090
.PDF
·
671.29 KB
Download
Brochure MKH 8000 Series
.PDF
·
2.02 MB
Download
EU Declaration of conformity MKH 8020, 8040, 8050, 8060, 8070 und 8090
.PDF
·
491.2 KB
Download
The MKH Story
.PDF
·
1.18 MB
Download
