TeamConnect Ceiling Medium F-B

Article No.  700234

Features14

  • Patented automatic dynamic beamforming
  • TruVoicelift
  • 15 Electret condenser capsules, made in Germany
  • Perfect speech intelligibility
  • Dante or Analog Output
  • PoE/PoE+ powered (single/daisy chaining)
  • Single-cable mode
  • Exclusion & Priority Zones
  • Camera Control via talker position data
  • Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2
  • Options for flush, surface, suspended or VESA mounting
  • Easily paintable metal housing
  • IEEE 802.1x
  • Intelligent Noise Control

Top Specs

  • Weight (g)max. 4,9 kg (10.8lbs)
  • Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
  • Max. sound pressure level98 dB SPL
  • Power consumption (Amp)Approx. 8 W
  • Sensitivity0 dBV/Pa (1020 mV/Pa)
  • Signal-to-noise ratio79 db(A)
  • Transducer principlePre-polarized condenser microphone
Tech Specs
Product
  • Transducer principle
    Pre-polarized condenser microphone
  • Warranty AMER (years)
    5
Frequency Specifications
  • Audio frequency response (Hz)
    100 Hz to 16,000 Hz
  • Audio frequency response
    100 Hz to 16,000 Hz
Acoustic Properties
  • Dynamic range (>)
    83 db(A)
  • Equivalent noise level (db)
    15 db(A)
  • Max. sound pressure level
    98 dB SPL
  • Signal-to-noise ratio
    79 db(A)
Inputs/Outputs
  • Audio output
    1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Ambient Conditions
  • Operating relative humidity (≤ %)
    20 to 95%, non-condensing
Battery & Power
  • Power consumption (Amp)
    Approx. 8 W
Electrical Properties
  • Sensitivity
    0 dBV/Pa (1020 mV/Pa)
Dimensions
  • Height (mm)
    46
  • Length (mm)
    407
  • Weight (g)
    max. 4,9 kg (10.8lbs)
  • Width (mm)
    407
  • Product height
    92
  • Product weight (g)
    max. 4,9 kg (10.8lbs)
  • Product width
    455
Downloads29
  • Safety Guide - TeamConnect Ceiling Medium
    .PDF
    ·
    1.27 MB
    Download
  • Q-Sys control plug-in TeamConnect Ceiling M (V 2.0.1)
    .ZIP
    ·
    907.83 KB
    Download
  • Crestron Module TeamConnect Ceiling M
    .ZIP
    ·
    24.33 MB
    Download
  • TCC M Firmware Release Notes 1.5.0 EN 2024 06
    .PDF
    ·
    101.3 KB
    Download
  • 2023_06_TCC_M_Dante_Firmware_Release_Notes_EN
    .PDF
    ·
    127.83 KB
    Download
  • Firmware TCC M 1.5.0
    .SENNPKG
    ·
    46.75 MB
  • EU Declaration of Conformity
    .PDF
    ·
    697.87 KB
    Download
  • US FCC Supplier's Declaration of Conformity
    .PDF
    ·
    184.92 KB
    Download
  • UKCA Declaration of Conformity
    .PDF
    ·
    679.97 KB
    Download
  • TCCM - Letter of Volatility
    .PDF
    ·
    95.46 KB
    Download
  • Outline Dimensions TeamConnect Ceiling Medium TCC M-F (DWG)
    .DWG
    ·
    3.47 MB
    Download
  • Outline Dimensions TeamConnect Ceiling Medium TCC M-F (DXF)
    .DXF
    ·
    12.33 MB
    Download
  • Outline dimensions TeamConnect Ceiling Medium TCC M-F (PDF)
    .PDF
    ·
    612.58 KB
    Download
  • 3D model TeamConnect Ceiling Medium TCC M-F (STP)
    .STP
    ·
    26.27 MB
    Download
  • TCCM - Drilling Template (DWG)
    .DWG
    ·
    1.03 MB
    Download
  • TCCM - Drilling Template (DXF)
    .DXF
    ·
    3.69 MB
    Download
  • Architect's specification for TCC M
    .PDF
    ·
    46.66 KB
    Download
  • Compliance Sheet - TeamConnect Ceiling Medium
    .PDF
    ·
    1.26 MB
    Download
  • Mounting Guide - TeamConnect Ceiling Medium
    .PDF
    ·
    2.3 MB
    Download
  • Quick Guide - TeamConnect Ceiling Medium
    .PDF
    ·
    1.06 MB
    Download
  • Product Specification TeamConnect Ceiling Medium
    .PDF
    ·
    1.92 MB
    Download
  • TCCM - Drilling Template (PDF)
    .PDF
    ·
    143.07 KB
    Download

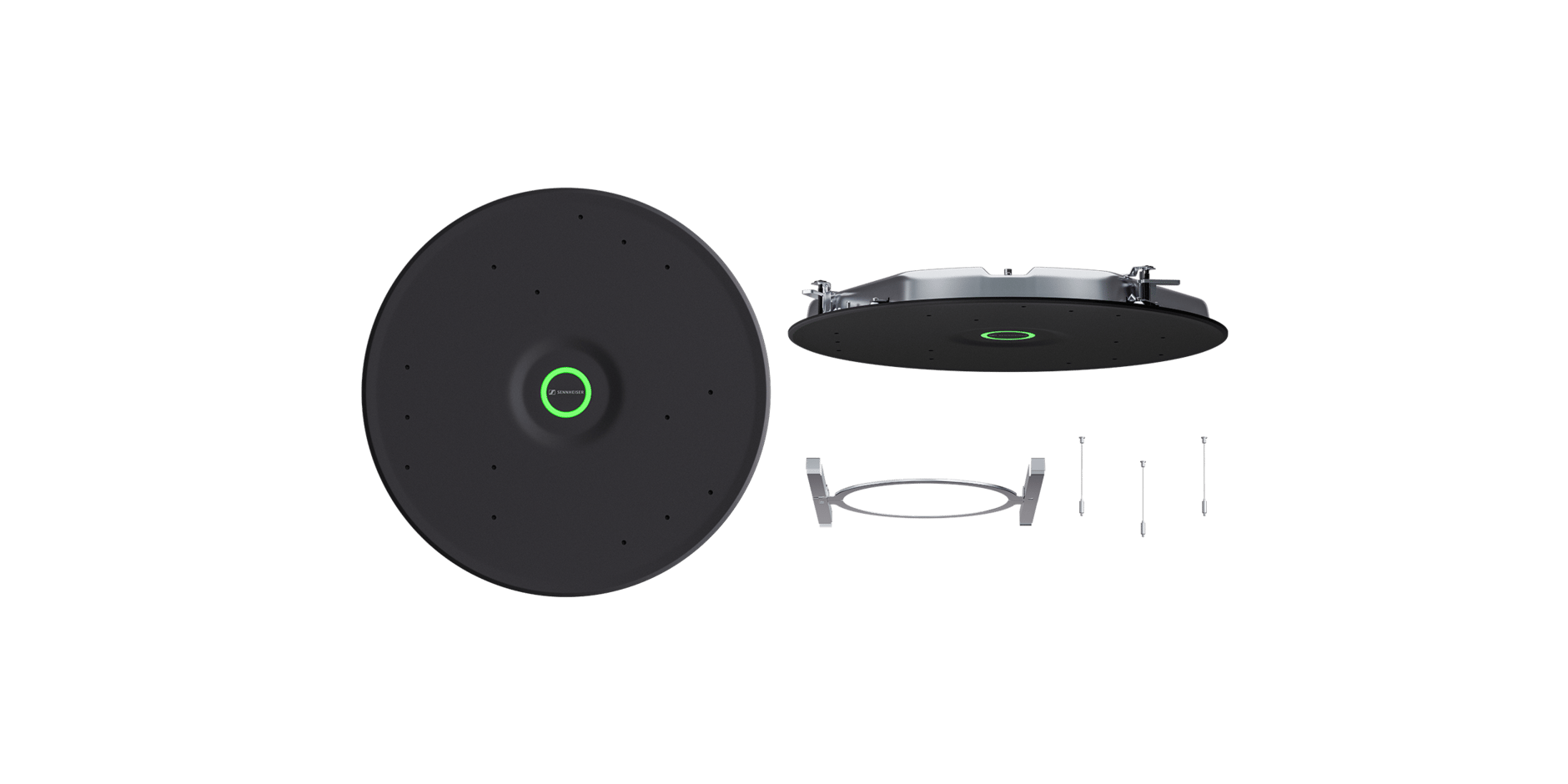

What's in the box08
  • TCC M microphone
  • Front plate black
  • Flush Mount Kit
  • Chicago plenum connection box cover plate
  • Drilling templates
  • Phoenix connector
  • Safety rope
  • Suspension kit
