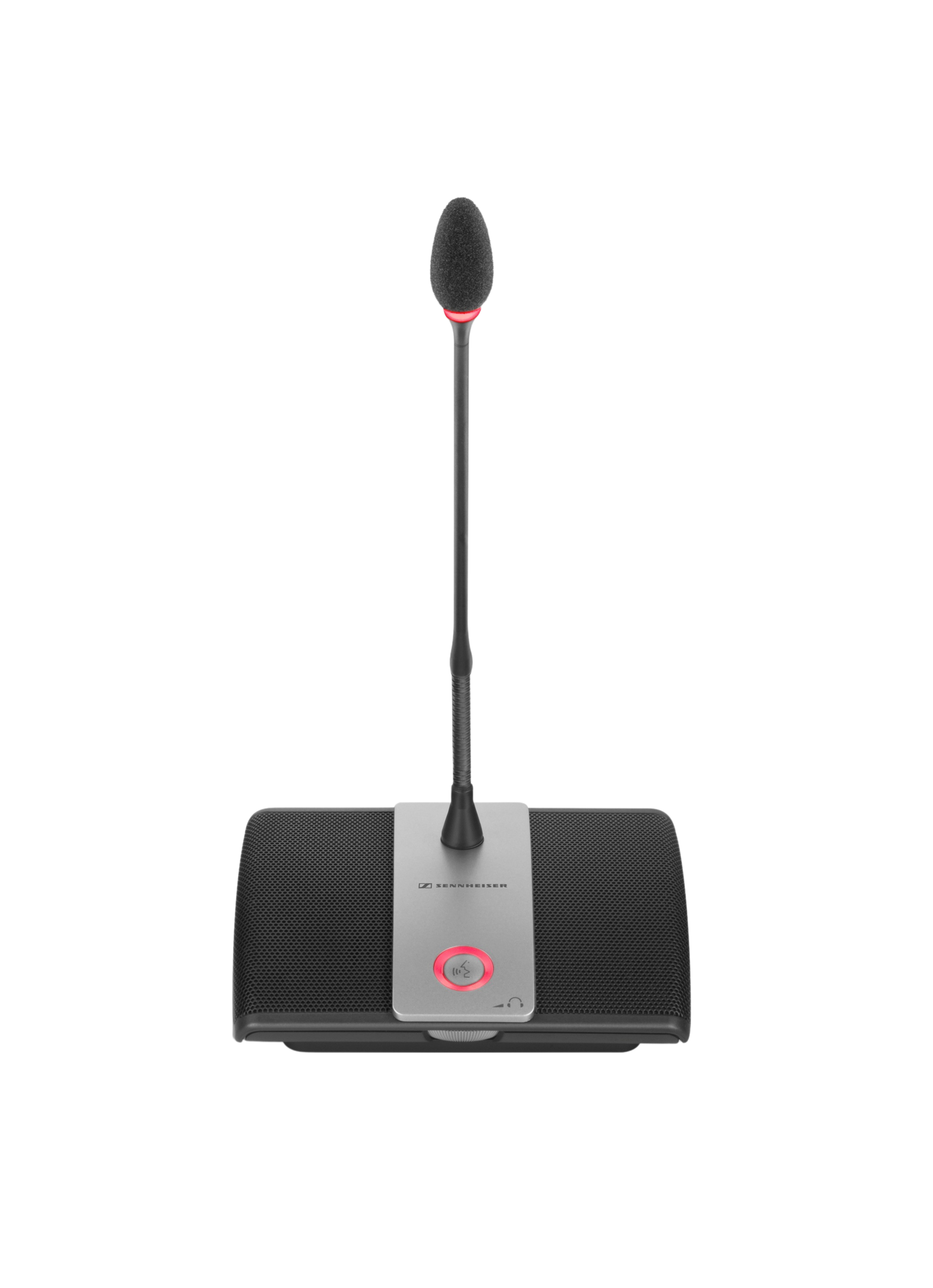

  • ADN_D1_Product_shot_cutout_Isotop_front.pngChange to image slide 0

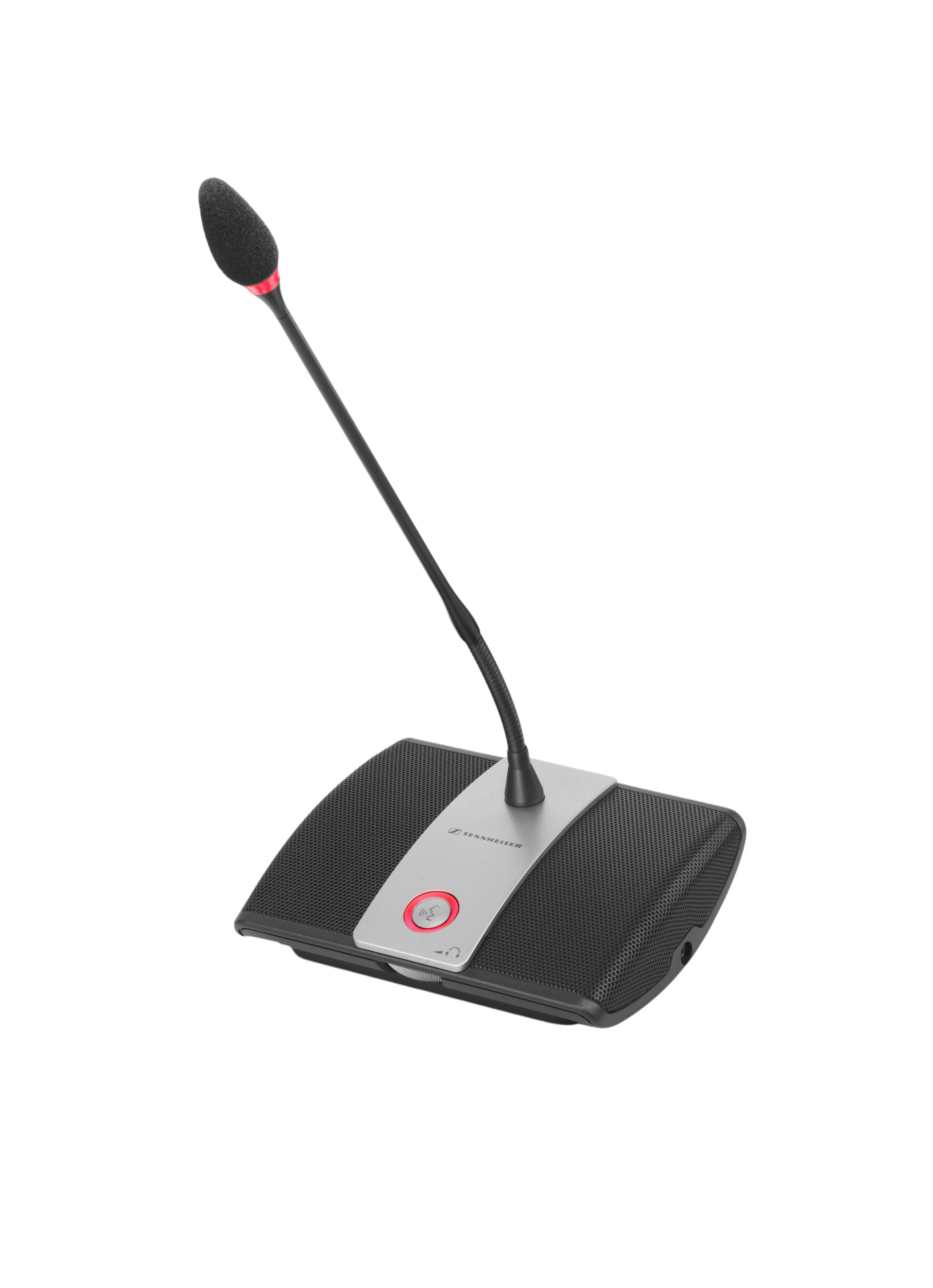

  • ADN_D1_Product_shot_cutout_Isotop_right_01.pngChange to image slide 1

ADN D1

Article No. 502758

This product is no longer available to be purchased

View product archive

The digital delegate unit ADN D1 offers high speech-intelligibility in a modern design. The gooseneck microphone is equipped with a super-cardioid capsule. A twin-loudspeaker system guarantees a homogenous sound level in the meeting room.

The digital delegate unit ADN D1 offers high speech-intelligibility in a modern design. The goose-neck microphone is equipped with a super-cardioid capsule that attenuates unwanted ambient noise efficiently. A twin-loudspeaker system guarantees a homogenous sound level in the meeting room. The cabling of the units, which is done by CAT5 cables and hidden connections can be optionally secured with strain reliefs for fixed installations.

Features06

  • Gooseneck microphone with Sennheiser super-cardioid capsule
  • DSP limiter
  • Modern industrial design, hidden cable connections
  • High-performance twin loudspeakers
  • Convenient cabling via RJ45 sockets
  • Strain relief available for fixed installations

Top Specs

  • Dimensions185 x 63 x 140 mm (without gooseneck)
  • Weight (g)approx. 700 g
  • Polar patternSupercardioid
  • Power consumption (Amp)max. 3,8 W
  • Pick-up patternSuper-cardioid

Tech Specs

Product
  • Polar pattern
    Supercardioid
  • Total harmonic distortion (THD)
    0,03 % at 50 mW/16 Ω
Acoustic Properties
  • Pick-up pattern
    Super-cardioid
Ambient Conditions
  • Operating temperature (C)
    +10°C to +40°C
Battery & Power
  • Power consumption (Amp)
    max. 3,8 W
Dimensions
  • Dimensions
    185 x 63 x 140 mm (without gooseneck)
  • Height (mm)
    210
  • Length (mm)
    409
  • Weight (g)
    approx. 700 g
  • Width (mm)
    250
  • Product height
    210
  • Product length
    409
  • Product weight (g)
    700
  • Product width
    250

Downloads19

ADN D1
.PDF
18.64 MB
Download
ADN D1
.PDF
17.4 MB
Download
ADN D1
.PDF
17.27 MB
Download
ADN D1
.PDF
17.36 MB
Download
ADN D1
.PDF
17.13 MB
Download
ADN D1
.PDF
17.41 MB
Download
ADN D1
.PDF
17.43 MB
Download
ADN D1
.PDF
17.32 MB
Download
ADN D1
.PDF
17.25 MB
Download
ADN D1
.DWG
2.16 MB
Download
ADN D1
.PDF
4.04 MB
Download
ADN D1
.PDF
929.05 KB
Download
ADN D1
.PDF
504.73 KB
Download
ADN D1
.PDF
4.77 MB
Download
ADN D1
.PDF
476.52 KB
Download
ADN D1
.PDF
2.91 MB
Download
ADN D1
.PDF
2.91 MB
Download
ADN D1
.PDF
384.18 KB
Download
ADN D1
.PDF
270.72 KB
Download

What's in the box02

  • ADN D1 delegate unit
  • Quick-Guide

Accessories and spare parts02

Placeholder image
ADN TR1
Placeholder image
SDC CBL RJ45-50
