  • SpeechLine_Wired_MEB_114_S_Product_shot_Isofront_cutout_W.pngChange to image slide 0

MEB 114-S W

Article No. 505616

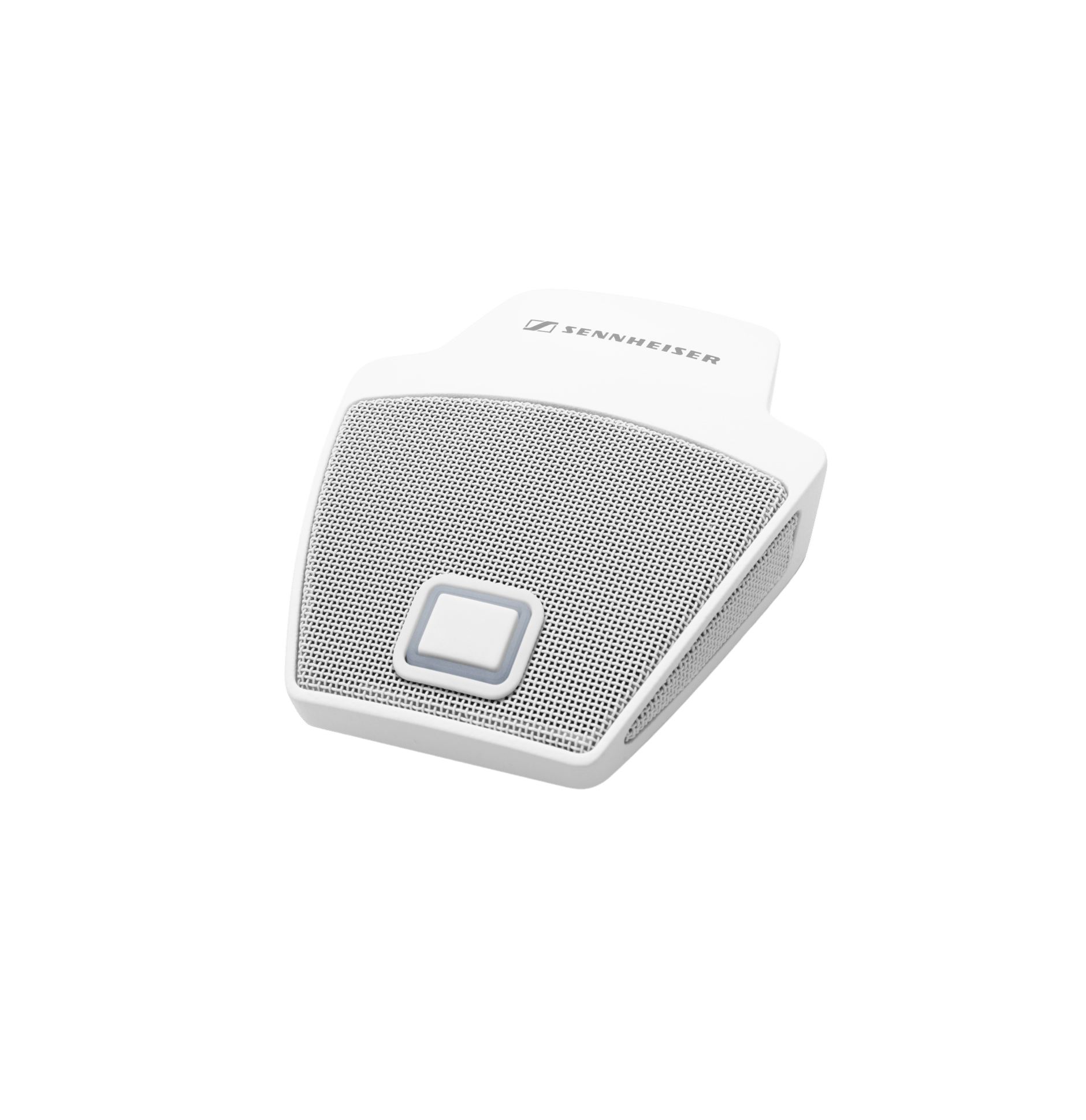

Wired table boundary microphone with half-cardioid pickup pattern. Thanks to its sturdy housing and high-quality microphone capsule, the MEB-S 114 guarantees optimum speech intelligibility. The MEB 114-S has a programmable microphone button (PTT, PTM, Toggle on/off, Permanent on) and a two-color LED ring as a status indicator. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black and white color.

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. In its –S version it additionally features a programmable microphone button (PTT, PTM, toggle ON/off, permanent on), and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.
1
1
1
1
1

Features01

  • Microphone modes:\nToggle on/off\nPush to mute\nPush to talk\npermanent on (external LED control)

Top Specs

  • ColorWhite
  • Dimensions3.34 x 3.93 x 0.98 in (W x D x H)
  • Max. sound pressure level140 dB
  • Pickup patternCardioid
  • Sensitivity10 mV/Pa
  • Transducer typePre-polarised condenser
  • ConnectionWired
  • Connectors3-pin_XLR mini
