Article No. 700170

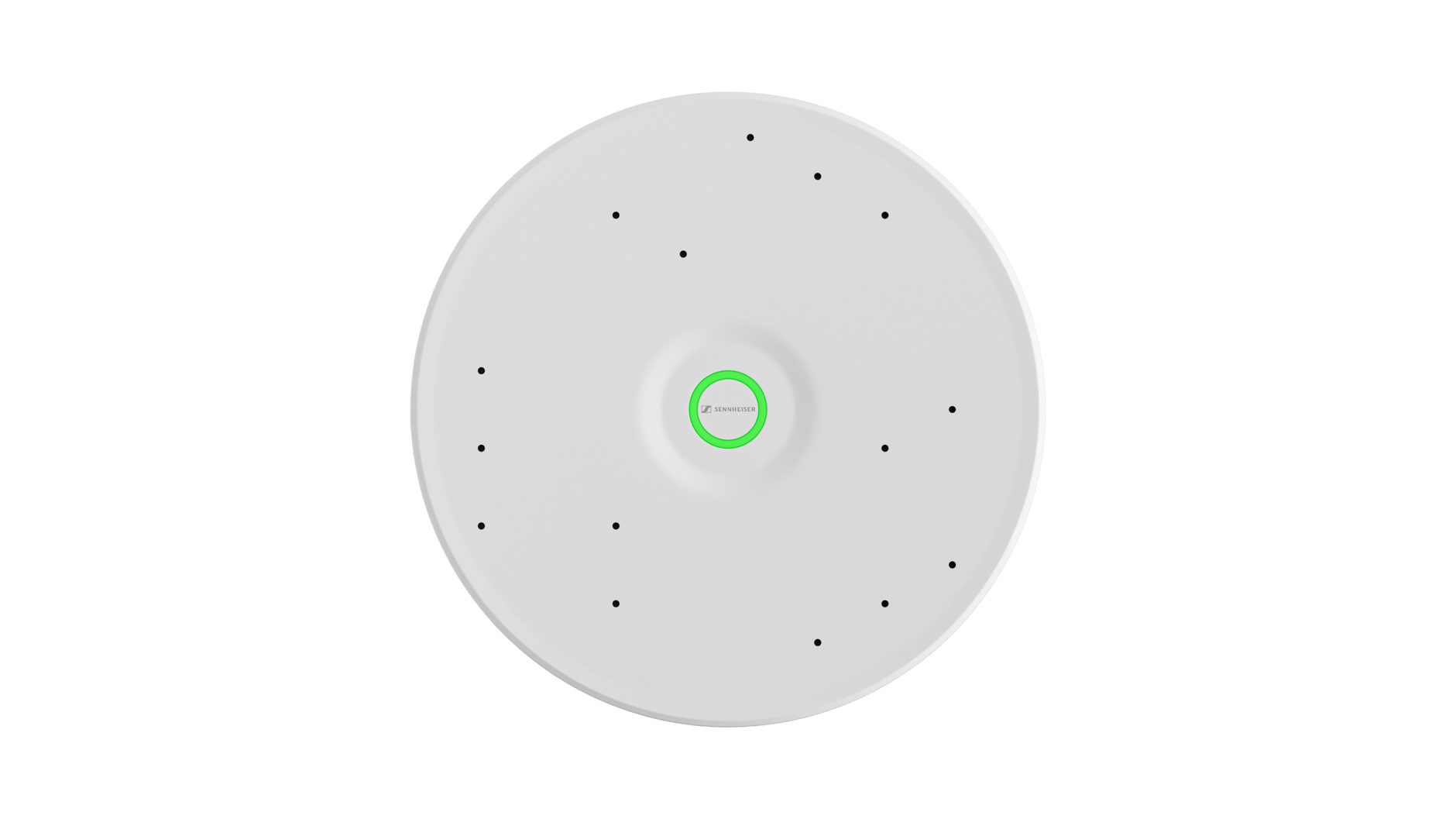

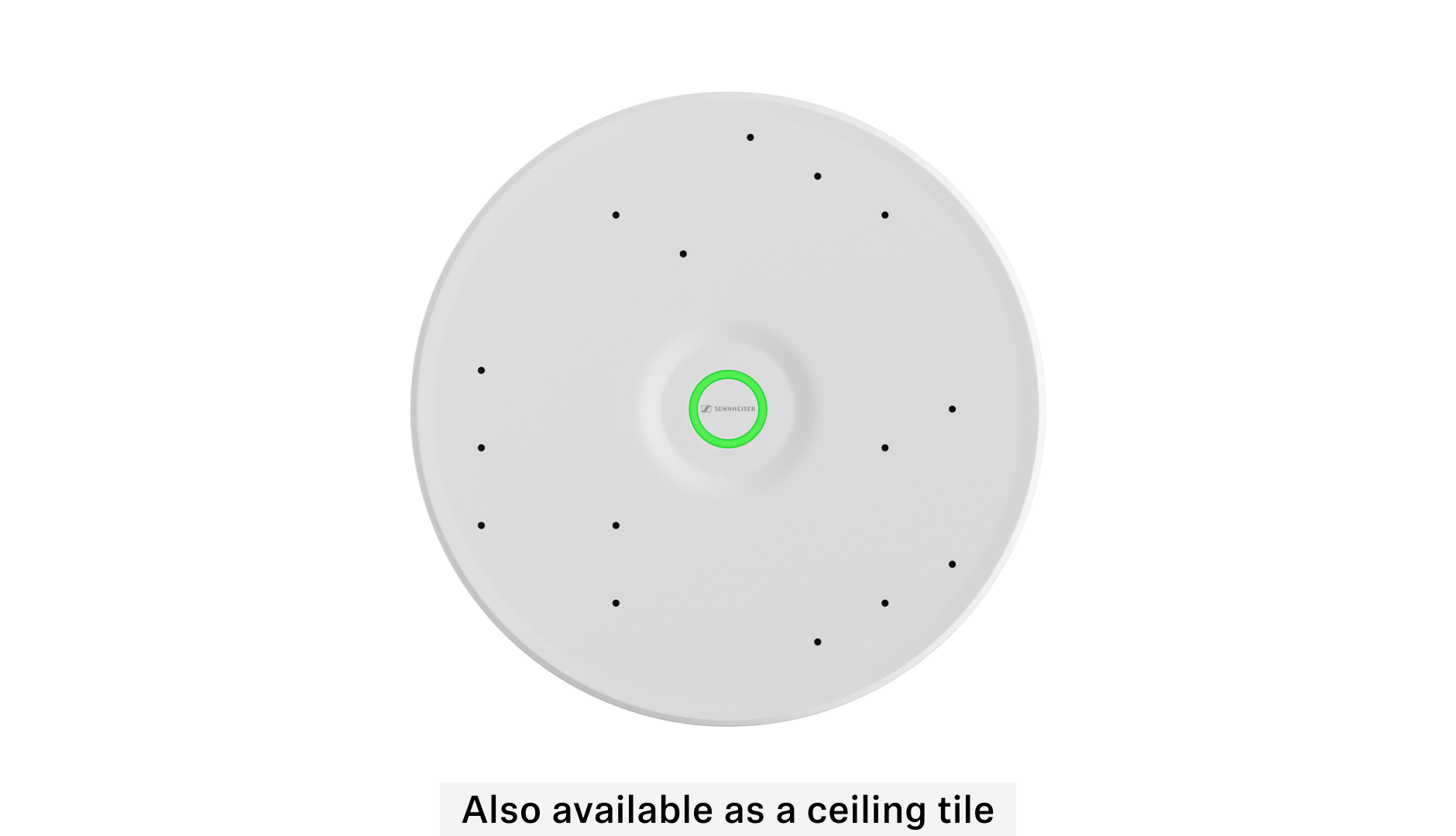

TeamConnect Ceiling Medium F-W
Overview
With a coverage of up to 40 m², our ceiling microphone TeamConnect Ceiling Medium is the right choice for mid-sized meeting rooms and lecture or collaboration spaces. With this solution, Sennheiser provides an additional design option to seamlessly include our audibly better ceiling microphone into your meeting room.
With all the great features of our trusted TeamConnect Ceiling 2 but in a more compact form, the TeamConnect Ceiling Medium microphone is a real problem-solver that allows cable-free tables and flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.The TeamConnect Ceiling Medium can only be purchased as a Kit and not as a single article. Please note: the TeamConnect Ceiling Medium is password protected by default and must be initialized with Sennheiser Control Cockpit before first use. For enhanced security, audio is muted before the initialization is complete.
Features13
- Patented automatic dynamic beamforming
- TruVoicelift
- 15 Electret condenser capsules, made in Germany
- Perfect speech intelligibility
- Dante or Analog Output
- PoE/PoE+ powered (single/daisy chaining)
- Single-cable mode
- Exclusion & Priority Zones
- Camera Control via talker position data
- Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2
- Options for flush, surface, suspended or VESA mounting
- Easily paintable metal housing
- IEEE 802.1x
Top Specs
- Weight (g)max. 4,9 kg (10.8lbs)
- Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
- Max. sound pressure level98 dB SPL
- Power consumption (Amp)Approx. 8 W
- Sensitivity0 dBV/Pa (1020 mV/Pa)
- Signal-to-noise ratio77 dB (A)
- Transducer principlePre-polarized condenser microphone
Tech Specs
Product
- Transducer principlePre-polarized condenser microphone
- Warranty AMER (years)5
Frequency Specifications
- Af frequency response (Hz)100 Hz to 16,000 Hz
Acoustic Properties
- Dynamic range (>)81 dB (A)
- Equivalent noise level (db)17 dB (A)
- Max. sound pressure level98 dB SPL
- Signal-to-noise ratio77 dB (A)
Inputs/Outputs
- Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Ambient Conditions
- Operating relative humidity (≤ %)20 to 95%, non-condensing
Battery & Power
- Power consumption (Amp)Approx. 8 W
Electrical Properties
- Sensitivity0 dBV/Pa (1020 mV/Pa)
Dimensions
- Height (mm)92
- Length (mm)525
- Master carton height (mm)470
- Master carton length (mm)760
- Master carton weight (g)1650
- Master carton width (mm)760
- Weight (g)max. 4,9 kg (10.8lbs)
- Width (mm)455
- Package Depth (mm)450
- Package Height (mm)100
- Package Weight (g)6640
- Package Width (mm)520
Downloads30
- firmware_tccm_1.2.7.SENNPKG·46.55 MB
Online Manuals02

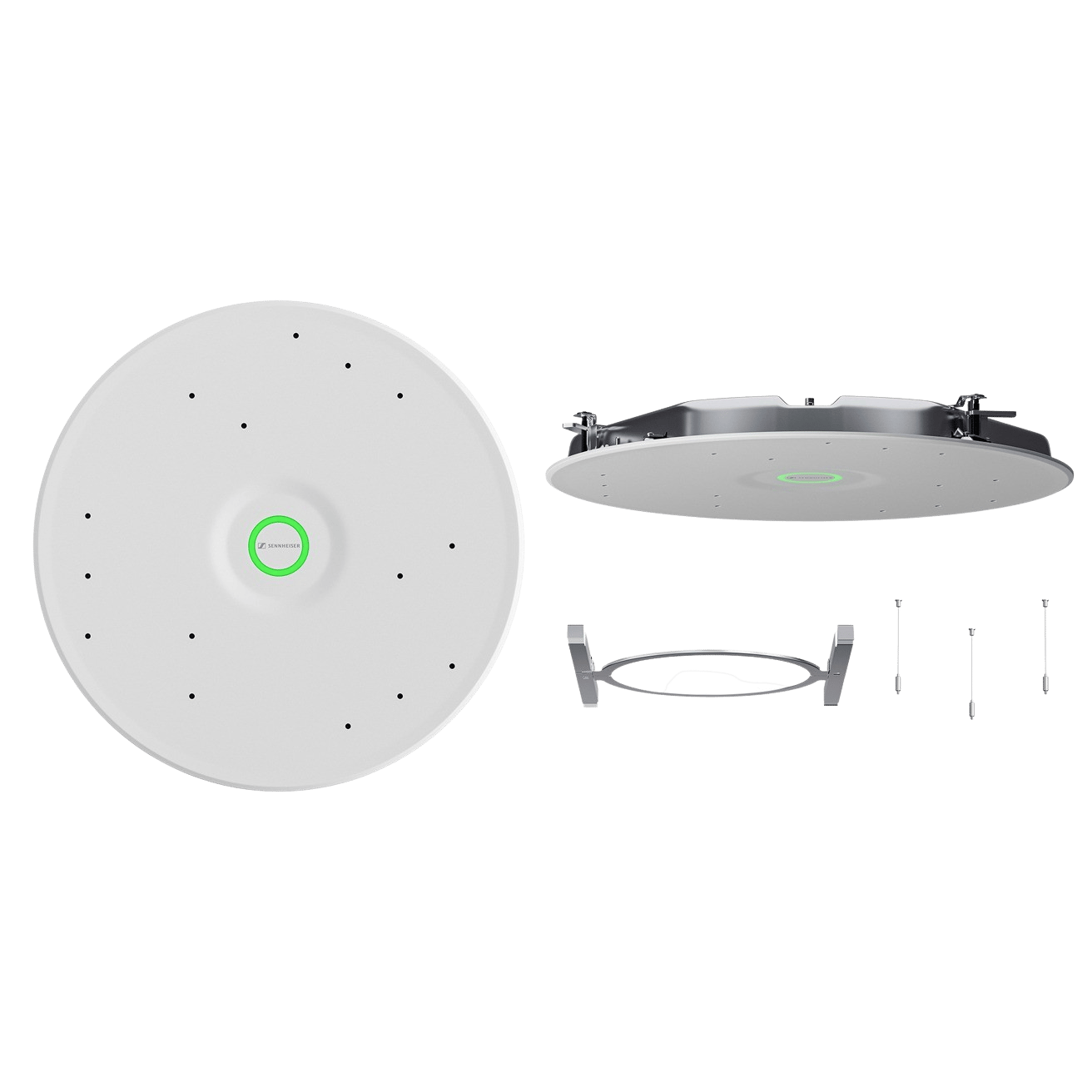

What's in the box08
- TCC M microphone
- Front plate white

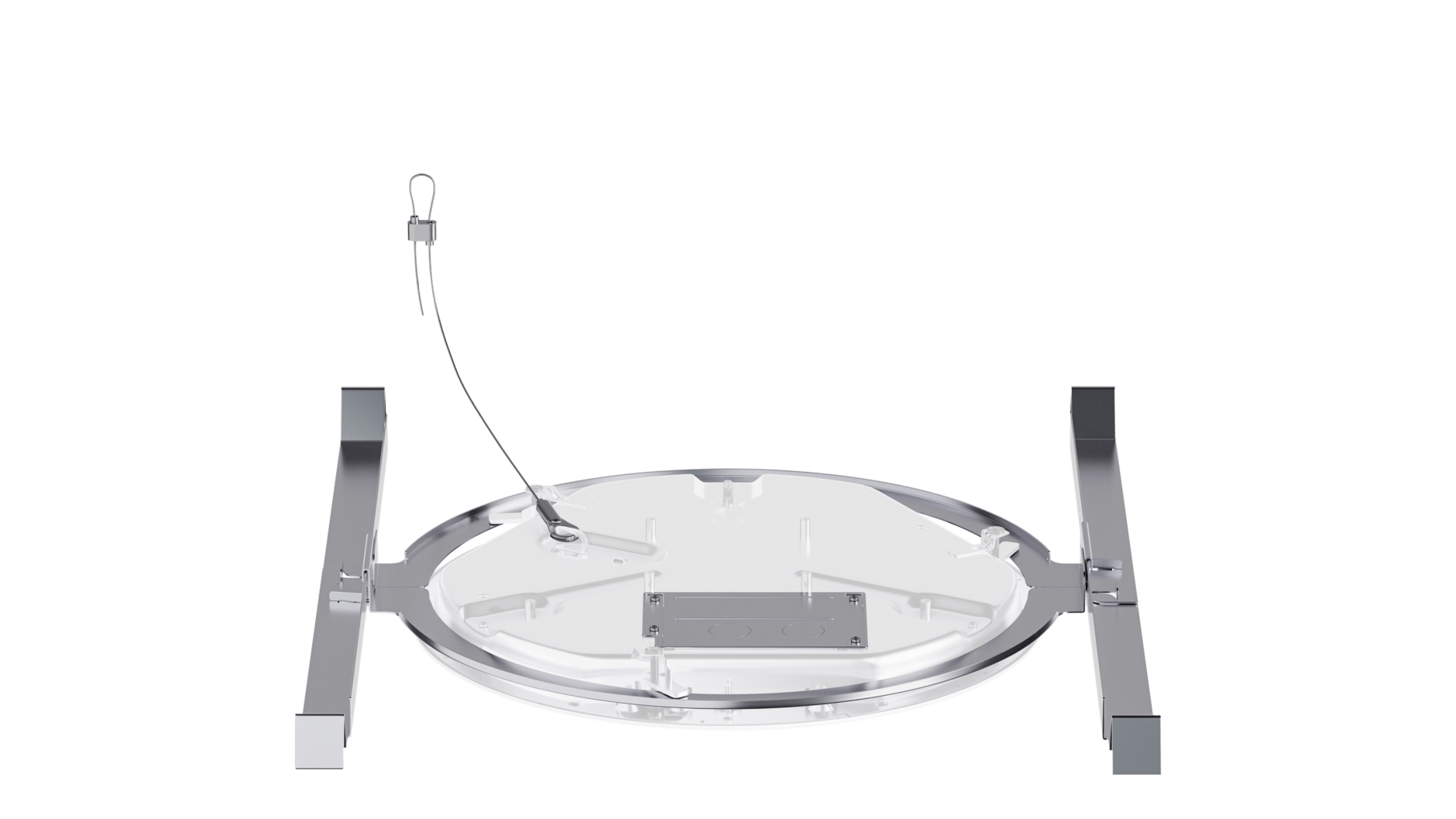

- Flush Mount Kit
- Chicago plenum connection box cover plate
- Drilling templates
- Phoenix connector
- Safety rope
- Suspension kit
