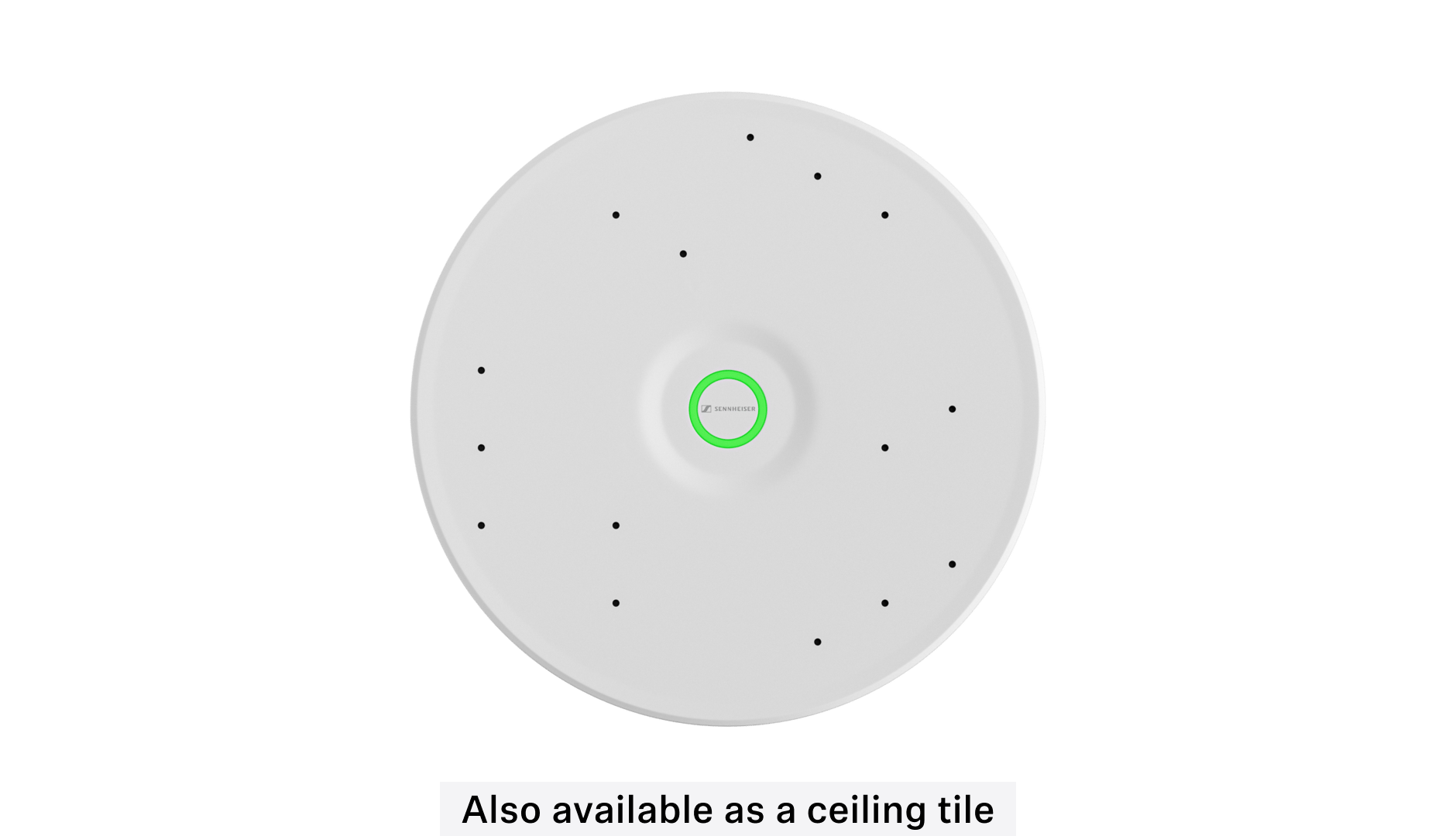

TeamConnect Ceiling Medium S-W
Article No. 700294
Features14
- Patented automatic dynamic beamforming
- TruVoicelift
- 15 SMD Electret condenser capsules made in Germany
- Perfect speech intelligibility
- Dante or Analog Output
- PoE/PoE+ powered (single/daisy chaining)
- Single-cable mode
- Exclusion Priority Zones
- Camera Control via talker position data
- Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2
- Options for flush, surface, suspended or VESA mounting
- Easily paintable metal housing
- IEEE 802.1x
- Intelligent Noise Control
Top Specs
- Weight (g)max. 4,9 kg (10.8lbs)
- Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
- Max. sound pressure level98 dB SPL
- Power consumption (Amp)Approx. 8 W
- Sensitivity0 dBV/Pa (1020 mV/Pa)
- Signal-to-noise ratio79 db(A)
- Transducer principlePre-polarized condenser microphone
Tech Specs
Product
- Transducer principlePre-polarized condenser microphone
- Warranty AMER (years)5
Frequency Specifications
- Audio frequency response (Hz)100 Hz to 16,000 Hz
- Audio frequency response100 Hz to 16,000 Hz
Acoustic Properties
- Dynamic range (>)83 db(A)
- Equivalent noise level (db)15 db(A)
- Max. sound pressure level98 dB SPL
- Signal-to-noise ratio79 db(A)
Inputs/Outputs
- Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Ambient Conditions
- Operating relative humidity (≤ %)20 to 95%, non-condensing
Battery & Power
- Power consumption (Amp)Approx. 8 W
Electrical Properties
- Sensitivity0 dBV/Pa (1020 mV/Pa)
Dimensions
- Height (mm)46
- Length (mm)407
- Weight (g)max. 4,9 kg (10.8lbs)
- Width (mm)407
- Product height27
- Product weight (g)max. 4,9 kg (10.8lbs)
- Product width410
Downloads32
- Firmware TCC M 1.5.0.SENNPKG·46.75 MB
Download
Online Manuals02

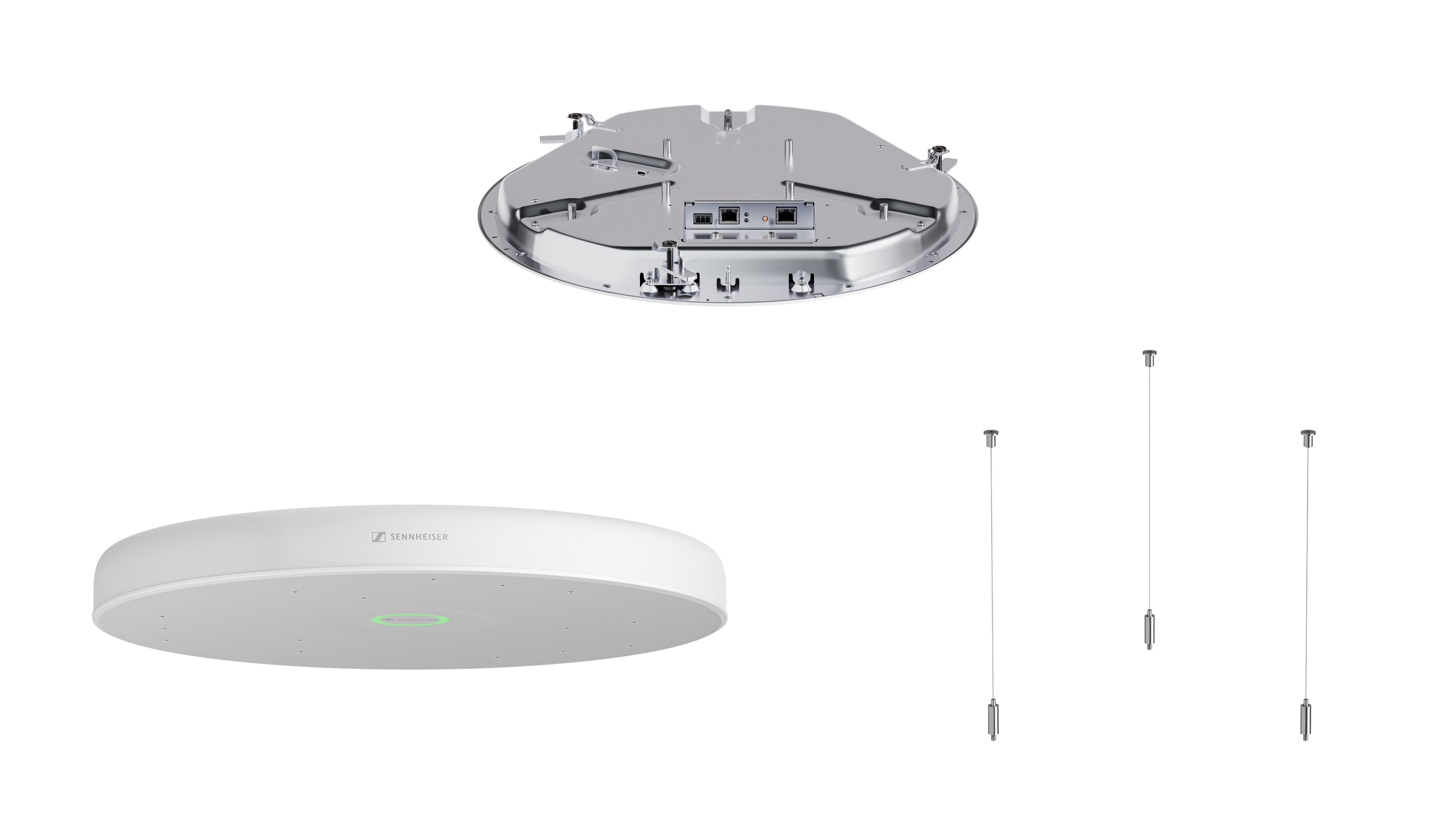

What's in the box08
- TCC M microphone
- Front plate white
- Design housing white
- Chicago plenum connection box cover plate
- Drilling templates
- Phoenix connector
- Safety rope
- Suspension kit
