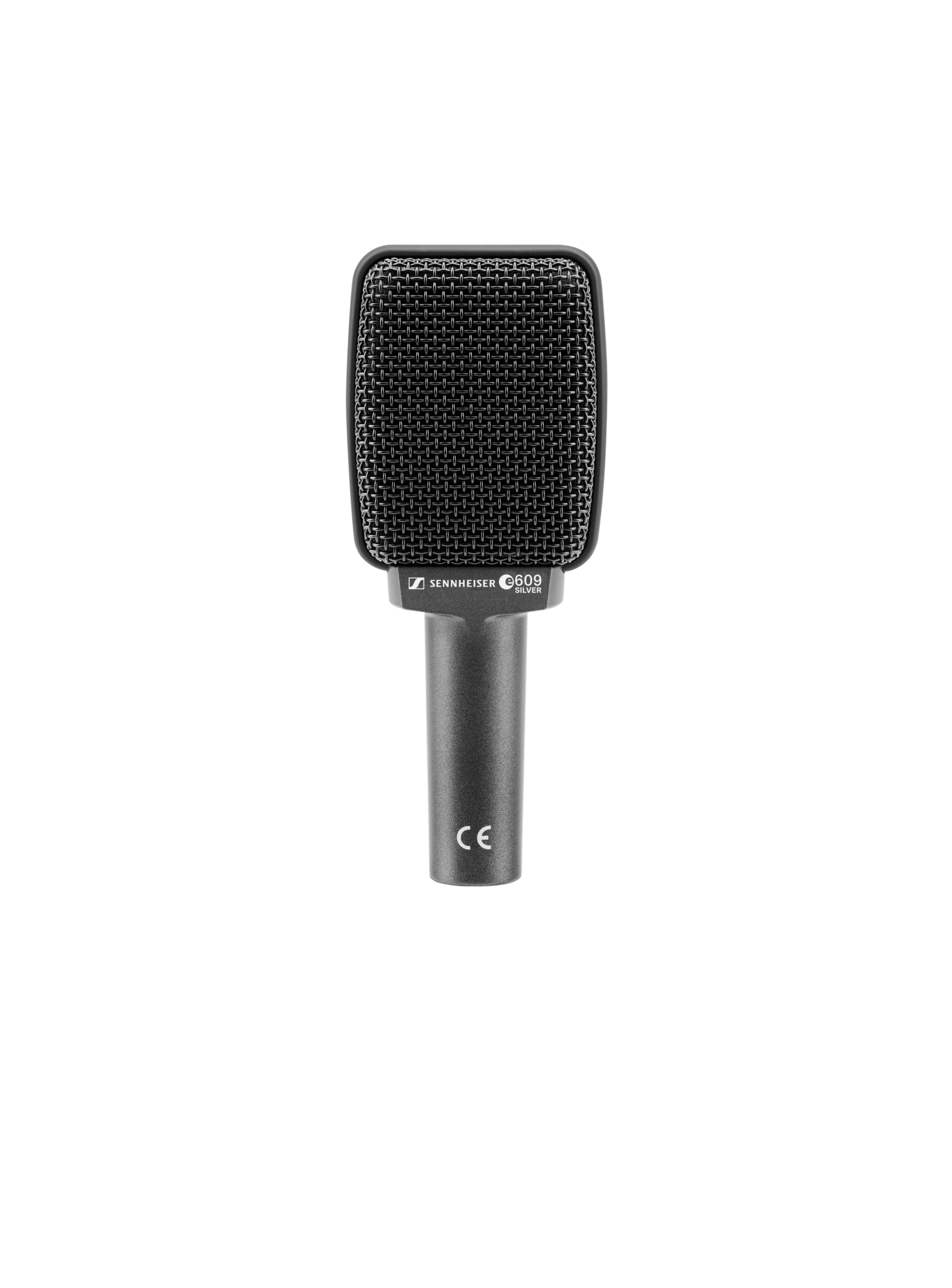

e 609 Silver

Article No. 500074

Super-cardioid silver instrument microphone designed for miking guitar cabs face-on and extremely close to the source. Provides isolation from other onstage signals. Also suitable for miking drums, especially toms.

The rugged workhorse with a practical shape. The super-cardioid e 609 silver instrument microphone has been specially developed for miking guitar cabs face on and extremely close to the signal source.
Scroll to:
Scroll to:

Features05

  • Rugged metal body
  • Advanced shock-mount design
  • Super-cardioid pick-up pattern
  • Hum compensating coil
  • Made in Germany

Top Specs

  • Dimensions55 x 34 x 134 mm
  • Weight (g)140 g
  • Polar patternSupercardioid
  • Transducer principleDynamic

Tech Specs

Product
  • Polar pattern
    Supercardioid
  • Transducer principle
    Dynamic
  • Warranty AMER (years)
    10
Frequency Specifications
  • Audio frequency response
    40 - 15,000 Hz
Acoustic Properties
  • Pick-up pattern
    super-cardioid
Electrical Properties
  • Nominal impedance
    350 Ω
  • Min. terminating impedance
    1000 Ω
Dimensions
  • Dimensions
    55 x 34 x 134 mm
  • Height (mm)
    80
  • Length (mm)
    260
  • Weight (g)
    140 g
  • Width (mm)
    120
  • Product height
    134 mm (5.28")
  • Product weight (g)
    140 g (0.31 lbs)
  • Product width
    34 mm (1.34")

Downloads12

  • EU Declaration of Conformity e 600 series
    .PDF
    ·
    653.01 KB
    Download
  • Bedienungsanleitung e 609 silver (PDF)
    .PDF
    ·
    686.88 KB
    Download
  • Instruction manual e 609 silver (PDF)
    .PDF
    ·
    687.18 KB
    Download
  • Instrucciones de manejo e 609 silver (PDF)
    .PDF
    ·
    686.83 KB
    Download
  • Notice d'emploi e 609 silver (PDF)
    .PDF
    ·
    687 KB
    Download
  • Istruzioni per l'uso e 609 silver (PDF)
    .PDF
    ·
    686.76 KB
    Download
  • Gebruiksaanwijzing e 609 silver (PDF)
    .PDF
    ·
    686.9 KB
    Download
  • Manual de instruções e 609 silver (PDF)
    .PDF
    ·
    686.73 KB
    Download
  • 使用说明书 e 609 silver (PDF)
    .PDF
    ·
    732.71 KB
    Download
  • Safety Instructions evolution wired 600, 800, 900 series
    .PDF
    ·
    1.51 MB
    Download
  • Produktdatenblatt e 609 silver
    .PDF
    ·
    242.83 KB
    Download
  • Product specification e 609 silver
    .PDF
    ·
    242.61 KB
    Download

What's in the box02

  • MZQ 100
  • Pouch

Accessories and spare parts01

Placeholder image

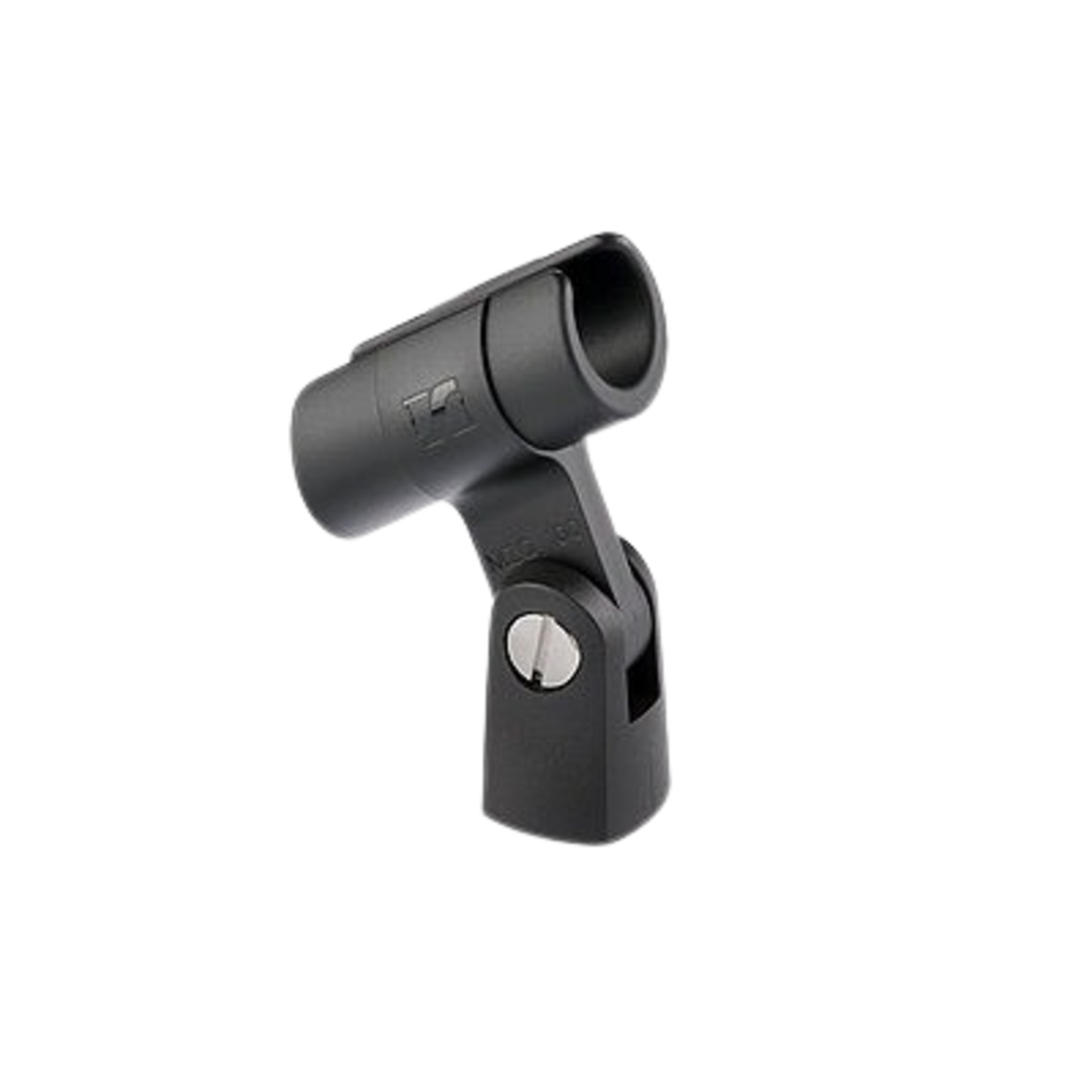

MZQ 100
